Temporal Fundamentals

Gaurav Agarwal
CoderMana

Course Agenda

Day Topic Lab focus
1 Foundations - durable execution mental model Hello Temporal, Event History

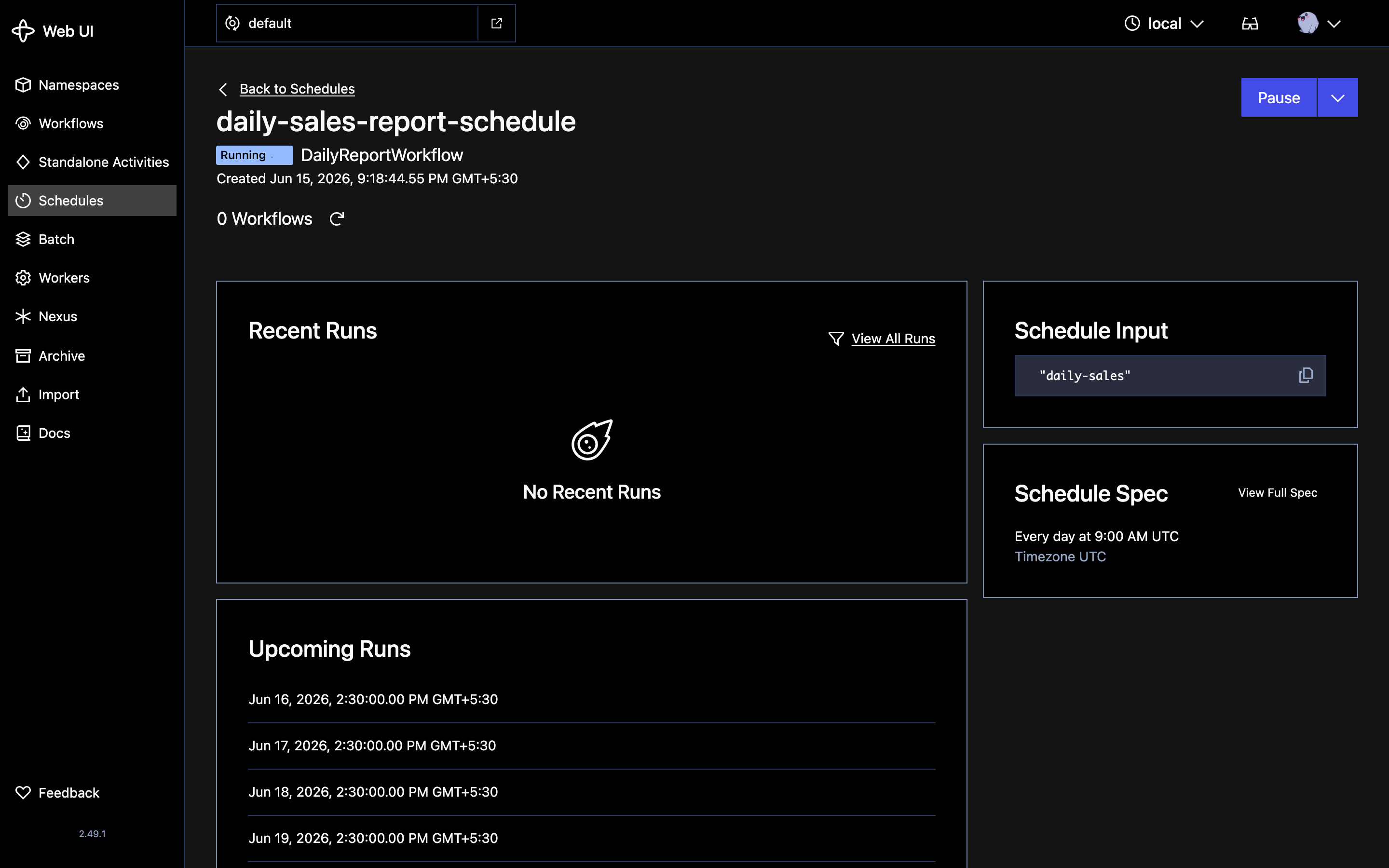

2 Reliability + interactions Signals, Updates, Schedules

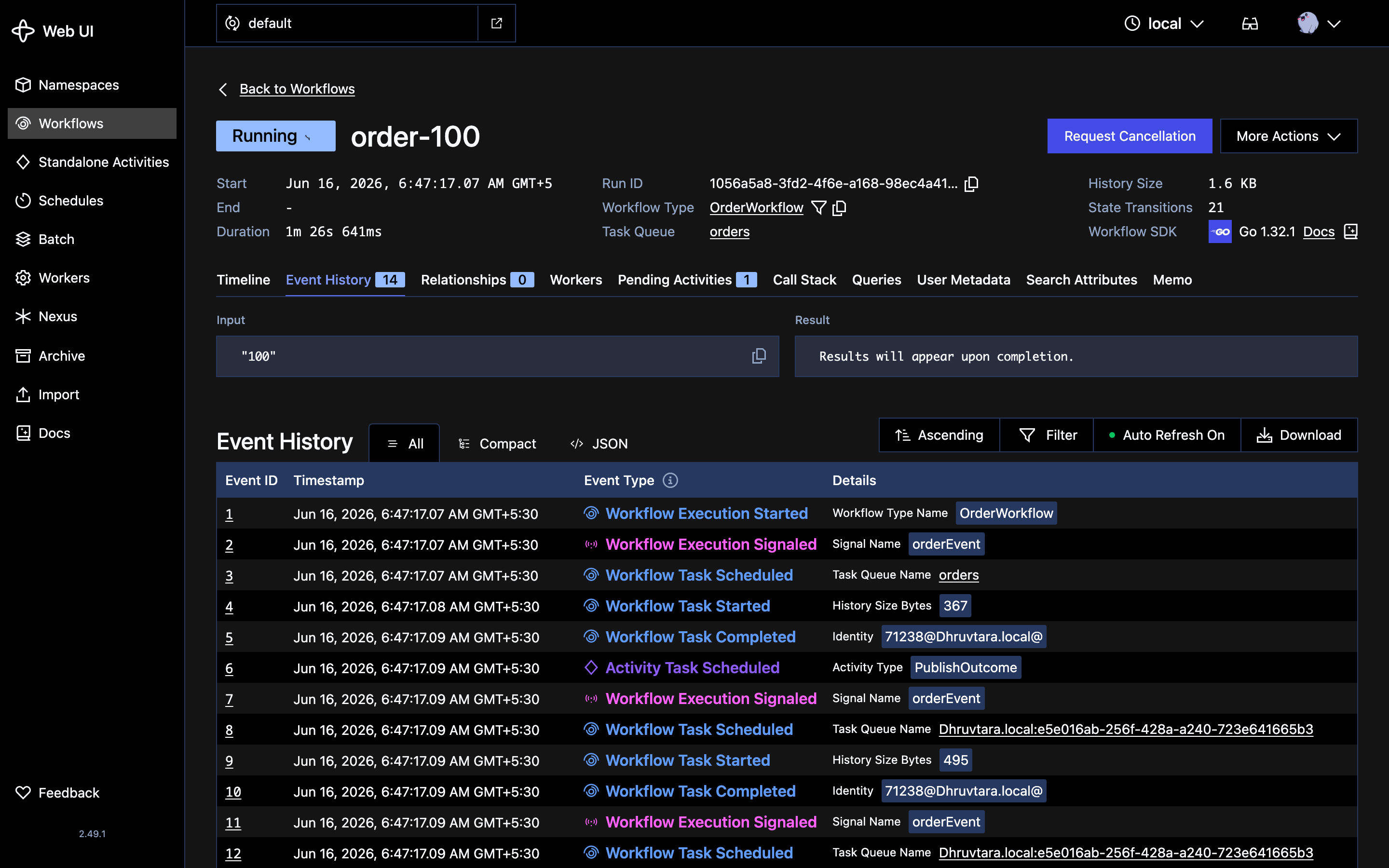

3 Kafka integration End-to-end Kafka pipeline, DLQ

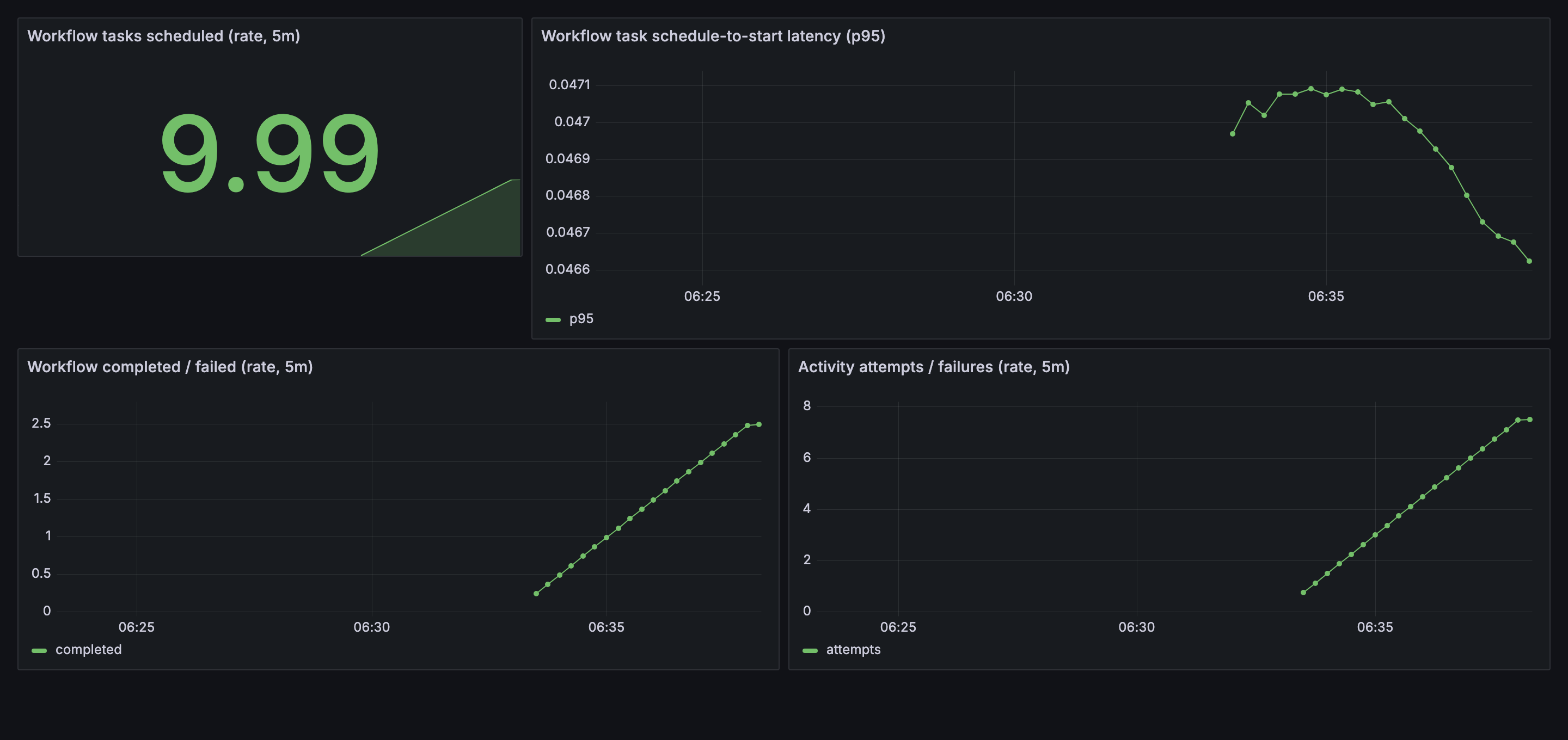

4 Production engineering Replay tests, dashboards
5 Saga + Spring Boot Saga in Spring Boot
6 AWS migration + containers Glue, K8s, KEDA

Build-it-yourself labs (starter code, no solutions) live in challenges/, each lab slide links its own challenge.

CoderMana
Day 1

Foundations

Rethinking orchestration as durable application code.

CoderMana
Lab · Day 1

Local dev setup

Challenge → day-01-foundations/lab-1-local-dev-setup

make check          # verify required tools
make temporal       # start dev server (in this terminal)

# in another terminal

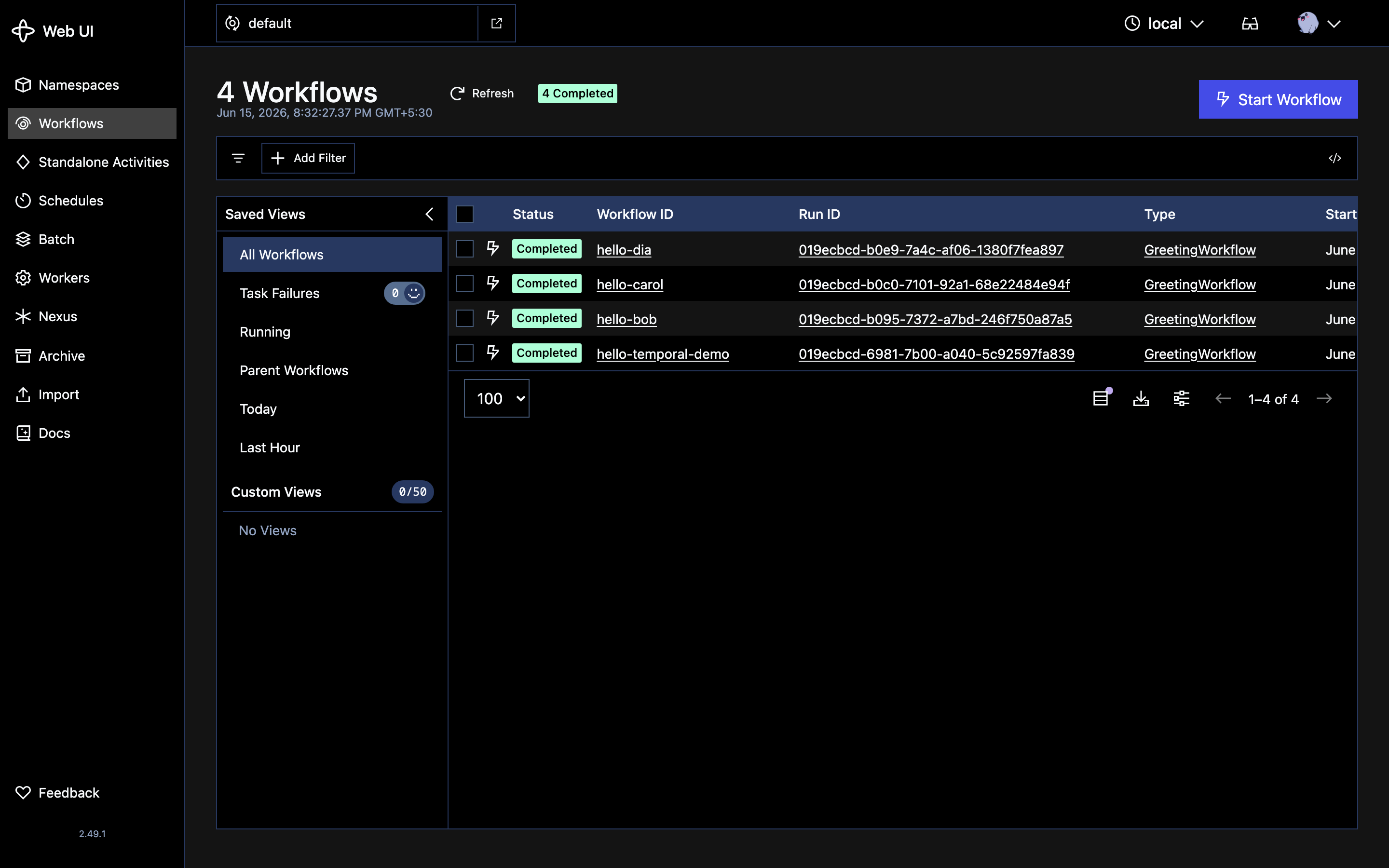

open http://127.0.0.1:8233
temporal operator namespace list

Goal: every laptop shows the default namespace in the Web UI.

CoderMana
Day 1

Why Temporal exists

The failure modes of cron- and DAG-based orchestration.

CoderMana
Day 1 · on-ramp

Why Temporal exists

  • Where this fits: Your first hour: before any API, the problem every orchestrator you've used leaves on your plate.
  • Why it matters: If the failure modes don't land, the rest of the week looks like needless ceremony.
  • By the end: You'll name the work cron, Airflow, Step Functions and Kafka each leave to you.
CoderMana

Every backend has these

  • "Charge the card, ship the order, send the receipt."
  • "Pull from S3, transform with Spark, write to Snowflake."
  • "Wait for the human approval, then provision the tenant."
  • "Retry the flaky API for an hour, then page the on-call."

These are workflows. They look easy until one step fails.

CoderMana

What goes wrong

  • The third call timed out. Did it succeed?
  • The Lambda was killed at minute 14 of 15.
  • The Kafka consumer crashed between the DB write and the publish.
  • The cron didn't fire. Nobody noticed for two days.
  • The retry loop never had a budget.

Recovery is a runbook, not a button.

CoderMana

Tools you've shipped with

Stack What it solves What it leaves to you
Cron + scripts Triggering on a schedule All state, retries, recovery
Airflow Scheduling DAGs Cross-system state, retries on top
Step Functions State machines in JSON Code review, Lambda 15-min cap
Kafka alone Transport between systems Per-key state, idempotency

Drift across all of them = the 2 AM page.

CoderMana

DAGs vs durable execution

Apache Airflow Temporal
Paradigm A DAG of tasks you wire up Idiomatic code that runs top-to-bottom
Trigger Schedule-driven: hourly, midnight, quarter-end Event-driven: API call, webhook, message
Recovery Retry a task by its position in the graph Replay history; resume mid-function
Sweet spot Move + transform data on a schedule Coordinate microservices & business logic

Airflow moves data A→B. Temporal runs a durable function that survives crashes.

CoderMana
Day 1

Core concepts

Workflows, Activities, Workers, Task Queues.

CoderMana
Day 1 · on-ramp

Core concepts

  • Where this fits: You've seen what breaks; these are the four pieces Temporal gives you to fix it.
  • Why it matters: Every Workflow, saga and pipeline later this week is built from just these four.
  • By the end: You'll read Workflow, Activity, Worker and Task Queue in one file and run them.
CoderMana

The four primitives

Workflow Activity Worker Task Queue
Durable function. State is the event history. Deterministic. Arbitrary code with side effects. Retried independently. Long-lived process polling one or more Task Queues. A string name. Routes work to a Worker pool.
CoderMana

Workflow

@WorkflowInterface
public interface OrdersWorkflow {
  @WorkflowMethod
  void run(String batchDate);
}
  • Annotated Java interface + impl.
  • The impl is your durable function.
  • State lives in event history; the impl is replayable.
CoderMana

Activity

@ActivityInterface
public interface OrdersActivities {
  String extract(String batchDate);
  String transform(String rawUri);
  void load(String cleanUri);
}
  • Unrestricted code: HTTP, DB, files, anything.
  • Retried independently of the Workflow.
  • 95% of your real production code lives here.
CoderMana

Worker + Task Queue

WorkerFactory factory = WorkerFactory.newInstance(client);
Worker worker = factory.newWorker("orders");
worker.registerWorkflowImplementationTypes(OrdersWorkflowImpl.class);
worker.registerActivitiesImplementations(new OrdersActivitiesImpl());
factory.start();
  • Worker = long-lived JVM polling orders Task Queue.
  • The Task Queue string routes work to a Worker pool.

Javadoc: WorkerFactory · WorkerFactoryOptions · WorkerOptions

CoderMana

One Worker hosts many types

  • A single Worker registers n Workflow types + m Activity types.
  • That one process can run any of the n × m combinations.
  • Registration is just a lookup table: type name → your code.
  • The two calls build it: registerWorkflowImplementationTypes → the n, registerActivitiesImplementations → the m.

One Worker, one Task Queue, the whole catalogue of work it knows how to do.

CoderMana

Many Workers split the work

  • Scale out to l Workers across the fleet.
  • Each Worker registers some(n) Workflows ; some(m) Activities, same two register… calls, a subset each.
  • Partition by Task Queue: route each subset to the pool that registers it.

Same model, more processes. You choose how to slice the catalogue.

CoderMana

Why split: Compute & I/O

  • Workflows: orchestration. Cheap, deterministic, mostly waiting.
  • Activities: the real work: compute-heavy or I/O-bound.
  • Isolate them: CPU-bound and I/O-bound Activities starve each other on one pool.
  • Separate Workers → tune slots, scale, and hardware per workload.

Splitting the fleet isn't bureaucracy, it's matching processes to the shape of the work.

CoderMana

Routing Activities by Task Queue

An Activity runs on the Task Queue its stub names (ActivityOptions.setTaskQueue), default is the Workflow's own queue. The unit of "who registers what" is the Task Queue, not the Worker.

Variant Topology Each Worker registers
One Worker, everything 1 queue, 1 pool all n Workflows + m Activities
Split by Task Queue k queues, k pools the subset routed to its queue
Same queue, l replicas 1 queue, l identical pods the same full set, pods interchangeable
Mismatch (bug) route to a queue no pool serves nothing runs it → task retries until timeout

Subset registration is legal across Task Queues; within one queue every Worker must be homogeneous.

CoderMana

One Workflow, three pools

                   Task Queue        Worker pool (registers)
  OrderWorkflow ─→ "orders"   ─────→ Orchestrator [OrderWorkflow]
       │
       ├ charge ─→ "payments" ─────→ Payments pool [PaymentActivities]
       └ render ─→ "media"    ─────→ Media pool    [MediaActivities]  (GPU)

No single pool registers everything. Each stub's setTaskQueue picks the pool, scale and hardware follow the queue.

CoderMana

Routing in code

// Workflow runs on "orders"; each Activity stub routes to its own pool.
PaymentActivities pay = Workflow.newActivityStub(PaymentActivities.class,
    ActivityOptions.newBuilder()
        .setTaskQueue("payments")                       // payments pool
        .setStartToCloseTimeout(Duration.ofSeconds(30)).build());
MediaActivities media = Workflow.newActivityStub(MediaActivities.class,
    ActivityOptions.newBuilder()
        .setTaskQueue("media")                          // media / GPU pool
        .setStartToCloseTimeout(Duration.ofMinutes(5)).build());

String charged = pay.charge(orderId);     // runs on the payments Worker
String receipt = media.render(orderId);   // runs on the media Worker

The payments Worker registers only PaymentActivities; the media Worker only MediaActivities. Neither knows the other exists.

CoderMana

Airflow → Temporal map

Airflow Temporal
DAG Workflow
Operator / Task Activity
Worker Worker (long-lived JVM)
default_queue Task Queue
XCom A normal Java return value
ExternalTaskSensor Signal / signalWithStart
BranchPythonOperator if / switch in Java
Sensor poll loop Workflow.await(predicate)

You stop describing shape. You start writing behavior.

CoderMana

At a glance

Feature Apache Airflow Temporal
Primary domain Data engineering & batch App development & microservices
State management Central metadata DB of task status Event-sourced history, replayed
Latency High, polling, seconds to start Low, gRPC, sub-second
Waiting / sleep Costs a worker slot or a sensor Native & cheap, sleep for a year
Scaling limit Scheduler + metadata DB Workflow history size

Not better-or-worse, different problems. Match the tool to the shape of the work.

CoderMana
Day 1

The Temporal SDK

The library that turns ordinary code into durable executions.

CoderMana
Day 1 · on-ramp

The Temporal SDK

  • Where this fits: You've met the primitives; now the library that turns ordinary Java into a durable execution.
  • Why it matters: Knowing which package does what heads off the "why won't this compile or replay" confusion later.
  • By the end: You'll know where Workflow, WorkflowClient and the annotations live, and what each is for.
CoderMana

What the SDK actually does

One dependency, two jobs. It's how you talk to the cluster, and it's how you run your code under the cluster's rules:

  • Client side: connect to Frontend over gRPC; start, signal, query, and update Workflows.
  • Worker side: long-poll Task Queues, dispatch Workflow & Activity tasks, replay history.
  • Determinism runtime: the Workflow.* toolkit (time, random, sleep, threads) that survives replay.
  • Plumbing: payload (de)serialization, retries, interceptors, metrics, TLS.

You write annotated classes and plain methods; the SDK makes them durable.

CoderMana

Java SDK: the packages

Package You use it for Key types
io.temporal.client Start / signal / query from outside WorkflowClient, WorkflowStub, WorkflowOptions
io.temporal.worker Host & poll Worker, WorkerFactory, WorkerOptions
io.temporal.workflow Write Workflow code Workflow, Async, Promise, Saga, @WorkflowInterface
io.temporal.activity Write Activities Activity, ActivityOptions, @ActivityInterface
io.temporal.common Shared config RetryOptions, converters, interceptors
io.temporal.serviceclient The gRPC connection WorkflowServiceStubs, WorkflowServiceStubsOptions (TLS / API-key)

Javadoc: WorkflowClient · Worker · Workflow · Activity · WorkflowServiceStubs · full index

CoderMana

Workflow: the deterministic toolkit

Inside Workflow code, reach for the Workflow statics, never the JDK equivalents:

Workflow.sleep(Duration.ofDays(30));        // durable timer, not Thread.sleep
long now = Workflow.currentTimeMillis();    // recorded, not System.*
UUID id  = Workflow.randomUUID();           // seeded, replay-safe
Workflow.await(() -> approved);             // park until a predicate flips

var act  = Workflow.newActivityStub(OrdersActivities.class, opts);
var child = Workflow.newChildWorkflowStub(ChildWorkflow.class);
Workflow.getLogger(getClass()).info("replay-aware logging");

Every value the Worker can't reproduce on replay comes from Workflow.*.

CoderMana

WorkflowClient: the way in from outside

// connect to Frontend over gRPC
WorkflowClient client = WorkflowClient.newInstance(
    WorkflowServiceStubs.newLocalServiceStubs());
// typed stub bound to your Workflow interface

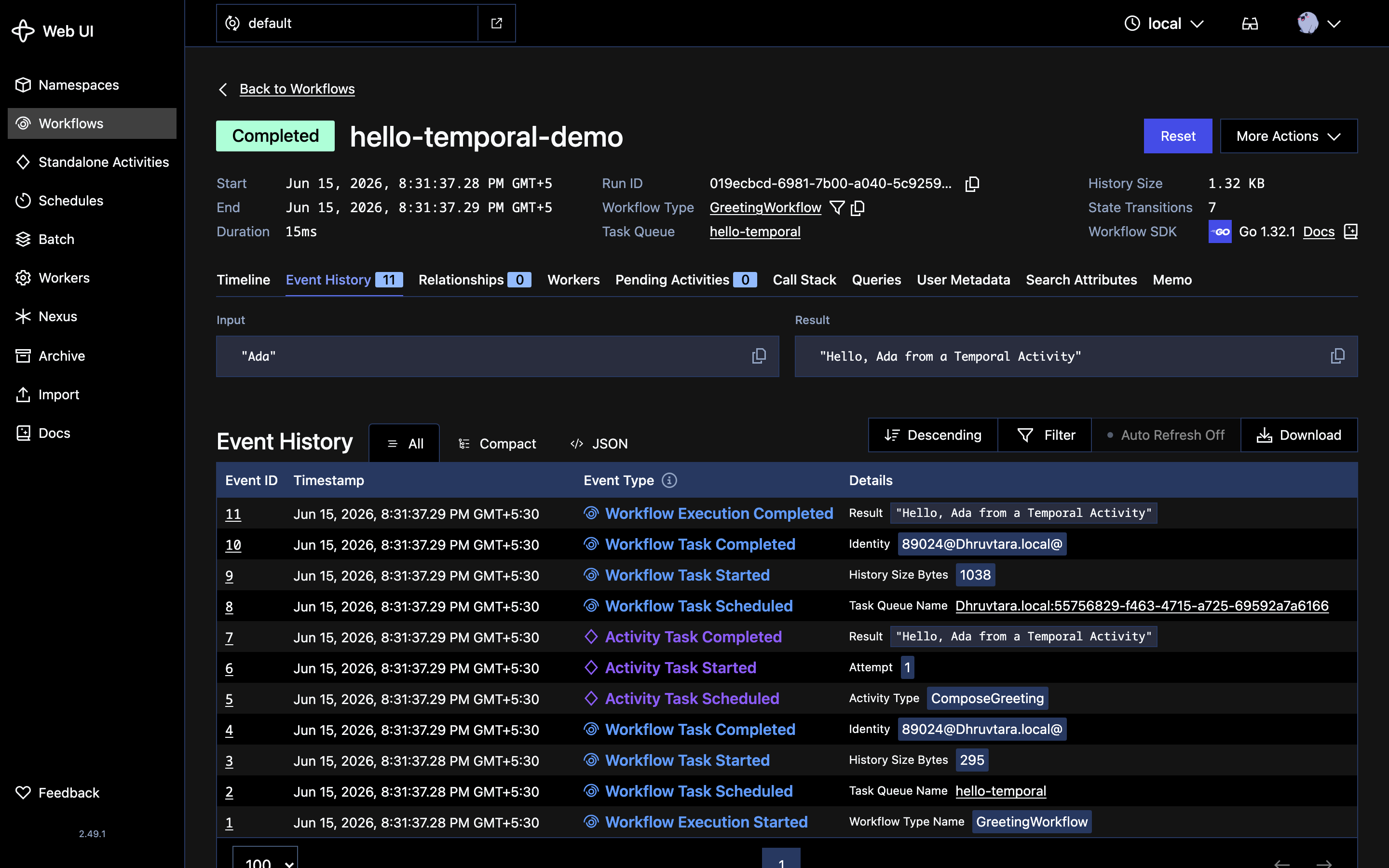

GreetingWorkflow wf = client.newWorkflowStub(GreetingWorkflow.class,
    WorkflowOptions.newBuilder()
        .setWorkflowId("hello-temporal-demo")
        .setTaskQueue("hello-temporal").build());
String result = wf.greet("Ada");   // start & block; .start(...) is async

The same client signals, queries, updates, and describes running Workflows.

Javadoc: WorkflowClient · WorkflowServiceStubs · WorkflowOptions

CoderMana

Add it to your build

<!-- Maven, pom.xml -->
<dependency>
  <groupId>io.temporal</groupId>
  <artifactId>temporal-sdk</artifactId>
  <version>1.32.1</version>   <!-- check Maven Central for latest -->
</dependency>

// Gradle, build.gradle
implementation 'io.temporal:temporal-sdk:1.32.1'
implementation 'io.temporal:temporal-testing:1.32.1'  // replay & time-skip tests

temporal-sdk is the only runtime dependency; add temporal-testing for Day 4.

CoderMana

Serialization: your data becomes Payloads

Every value crossing the boundary is converted to a Payload (bytes + metadata) by the DataConverter, then converted back on the other side. That includes Workflow args & result, Activity args & result, Signals, Queries, and Updates.

greet("Ada")  ──DataConverter──→  Payload {
                                    metadata: { "encoding": "json/plain" }
                                    data:     "Ada"           ← UTF-8 bytes
                                  }  ──→ stored in Event History
  • Default chain tries converters in order: null → byte[] → Protobuf → JSON (Jackson). Your POJOs/records land on JSON.
  • The encoding metadata tells the receiver how to decode, both sides must run a compatible converter.

You pass objects; the SDK ships bytes. Keep them JSON-friendly and both ends agree.

Javadoc: DataConverter · DefaultDataConverter · PayloadConverter

CoderMana

Serialization: the limits

The "so what" of shipping bytes through history:

  • Must serialize cleanly: default JSON needs fields/getters and a no-arg constructor. No live handles: sockets, threads, streams, Connections.
  • Size: one payload hard-caps at 2 MB (the gRPC message limit). The SDK warns at ~256 KB. The whole history caps at 50 MB / 51,200 events.
  • Replay cost: every arg & result is stored in history, then re-read on every replay. Big payloads mean slow replay and a bloating history.
  • Schema evolution: a payload outlives the code that wrote it. Add fields and tolerate unknown ones. Don't repurpose or remove a field: an in-flight Workflow will fail to deserialize old history.

History is a control plane, not a data bus. Keep payloads small, stable, and JSON-clean. Big blobs go to S3, pass a URI, not the bytes (Day 6).

CoderMana

Options at a glance: wiring the client & Worker

Every layer of the bootstrap path has its own *Options builder. From the outside in:

Builder Configures Applied when
WorkflowServiceStubsOptions Connection: target host, TLS, API key, metrics scope building the service stubs
WorkflowClientOptions Namespace, data converter, client interceptors building the WorkflowClient
WorkerFactoryOptions Cross-Worker: sticky cache, virtual workflow threads, Worker interceptors WorkerFactory.newInstance
WorkerOptions Per-queue slots, tuner, virtual threads factory.newWorker
WorkflowImplementationOptions Per-type: fail-on exception types, per-Activity defaults registering a Workflow impl

Each builder is newBuilder() … .build(): same shape everywhere, so they read the same.

CoderMana

Options at a glance: starting & retrying work

These travel with each execution rather than the Worker:

Builder Configures Applied when
WorkflowOptions ID, Task Queue, run/execution timeouts, retry, ID-reuse policy starting a Workflow
ChildWorkflowOptions Same set + parent-close policy starting a Child Workflow
ScheduleOptions Memo & search attributes for the Schedule createSchedule
ActivityOptions Timeouts, heartbeat, Task Queue, retry building an Activity stub
LocalActivityOptions Timeouts + retry for short, local Activities building a local Activity stub
RetryOptions Backoff, max attempts, non-retryable types nested inside the four above

RetryOptions is never set alone, it's the retry block inside a Workflow/Activity options builder.

CoderMana
Day 1 · optional

Other SDKs: same model

Python and Go ship the identical primitives in idiomatic form.

CoderMana
Day 1 · on-ramp

Other SDKs: same model

  • Where this fits: A short detour: the same primitives you just learned, in Python and Go.
  • Why it matters: Your platform is polyglot, a Go Worker and a Java Worker can share one Workflow contract.
  • By the end: You'll recognize the identical model across all three SDKs and read each in idiomatic form.
CoderMana
Optional

Python SDK: temporalio

from temporalio.client import Client
from temporalio.worker import Worker

client = await Client.connect("localhost:7233", namespace="default")
handle = await client.start_workflow(
    GreetingWorkflow.run, "Ada",
    id="hello-temporal-demo", task_queue="hello-temporal")
print(await handle.result())
worker = Worker(client, task_queue="hello-temporal",
                workflows=[GreetingWorkflow], activities=[greet])
await worker.run()

pip install temporalio: async-native: @workflow.defn / @activity.defn, workflow.* toolkit.

CoderMana
Optional

Go SDK: go.temporal.io/sdk

// go get go.temporal.io/sdk  →  import "go.temporal.io/sdk/client"
c, _ := client.Dial(client.Options{HostPort: "localhost:7233"})
defer c.Close()

we, _ := c.ExecuteWorkflow(ctx,
    client.StartWorkflowOptions{ID: "hello-temporal-demo", TaskQueue: "hello-temporal"},
    GreetingWorkflow, "Ada")

var result string
we.Get(ctx, &result)   // block for the result

A Workflow is a plain func(ctx workflow.Context, ...); the workflow package holds the determinism toolkit.

CoderMana
Optional

Cross-SDK at a glance

Concept Java Python Go
Package io.temporal:temporal-sdk temporalio (pip) go.temporal.io/sdk
Connect WorkflowClient Client.connect client.Dial
Define Workflow @WorkflowInterface @workflow.defn func(ctx, …)
Run a Worker WorkerFactory / Worker Worker(...).run() worker.New(...).Run()
Determinism API Workflow.* workflow module workflow package
Call an Activity typed Activity stub workflow.execute_activity workflow.ExecuteActivity

Different syntax, one runtime contract, pick the language, keep the model.

CoderMana
Day 1

Event sourcing & deterministic replay

The single concept that breaks the most Airflow brains.

CoderMana
Day 1 · on-ramp

Event sourcing & deterministic replay

  • Where this fits: The one idea under everything: how a Workflow survives a crash and resumes mid-flight.
  • Why it matters: This is the concept that most often breaks Airflow intuition, get it now, debug less later.
  • By the end: You'll explain why Workflow code re-executes while Activity results are replayed from history.
CoderMana

The replay rule

When a Worker resumes a Workflow:

  1. It re-runs the Workflow code from the start.
  2. Replays recorded events to reconstruct local state.
  3. Reaches the next undecided point.
  4. Continues from there.

Different decision than the recorded history = non-determinism error.

CoderMana

Five families of non-determinism

// 1. Time
long now = System.currentTimeMillis();         // NO
long now = Workflow.currentTimeMillis();       // YES

// 2. Random
int n = new Random().nextInt(10);              // NO
int n = Workflow.newRandom().nextInt(10);      // YES

// 3. I/O
Files.writeString(path, "x");                  // NO - move to Activity

// 4. Concurrency
Thread.sleep(60_000);                           // NO
Workflow.sleep(Duration.ofMinutes(1));         // YES

// 5. Iteration order
for (var e : hashMap.entrySet()) { ... }       // risky
CoderMana

Durable sleep

Workflow.sleep(Duration.ofDays(30));
  • The Worker forgets this Workflow.
  • The server fires a timer in 30 days.
  • Some Worker - maybe a different one - picks it up and continues.

No JVM stays alive. Survives every deploy in between.

CoderMana

The Event History

A Workflow's state is an append-only log of events, what the server
persists and the Worker replays. A one-Activity run records:

WorkflowExecutionStarted                  ← input, Task Queue
WorkflowTaskScheduled / Started / Completed
ActivityTaskScheduled / Started / Completed
WorkflowTaskScheduled / Started / Completed
WorkflowExecutionCompleted                ← result

If it isn't an event, it didn't happen, this log is the source of truth.

CoderMana

Web UI: Workflows list

Temporal Web UI at localhost:8233 showing the Workflows list: four completed GreetingWorkflow executions with Status, Workflow ID, Run ID, and Type columns, plus the left navigation and a Start Workflow button

localhost:8233 → Workflows. Every execution, newest first.

  • Status: Completed, Running, Failed, Timed Out, Terminated.
  • Workflow ID: the ID you chose (here, hello-temporal-demo).
  • Run ID: one server-assigned attempt of that ID.
  • Type: the Workflow function (GreetingWorkflow).
  • Add Filter queries by status / type / time.
  • Start Workflow launches one straight from the UI.

Workflow ID is yours and reusable over time; Run ID is one physical execution.

CoderMana

Web UI: Event History

Temporal Web UI Event History tab for hello-temporal-demo: a summary header with Input "Ada" and the greeting Result, then the numbered event table running from WorkflowExecutionStarted up to WorkflowExecutionCompleted

Click a Workflow → the Event History tab.

  • Summary header: status, Task Queue, Input and Result, History Size, State Transitions, SDK version.
  • Event table: every event numbered (Event ID) with its type and details.
  • The arc runs WorkflowExecutionStarted → … → WorkflowExecutionCompleted, with the ActivityTask* trio in the middle.
  • Toggle All / Compact / JSON; Download the raw history.
  • Same data from the CLI: temporal workflow show --workflow-id <id>.

This is the lab: run Hello Temporal, then find these exact events.

CoderMana

Event History retention

  • While a Workflow is open, its Event History is the live source of truth.
  • After a Workflow closes, history is kept for the Namespace retention period.
  • Cleanup is automatic: Temporal schedules a retention timer when the execution closes.
  • The default CLI-created Namespace retention is 3 days; the minimum is 1 day.
  • Changing retention affects newly closed executions only, not already-closed ones.

Retention prunes closed histories. It does not shrink a running Workflow's history.

CoderMana

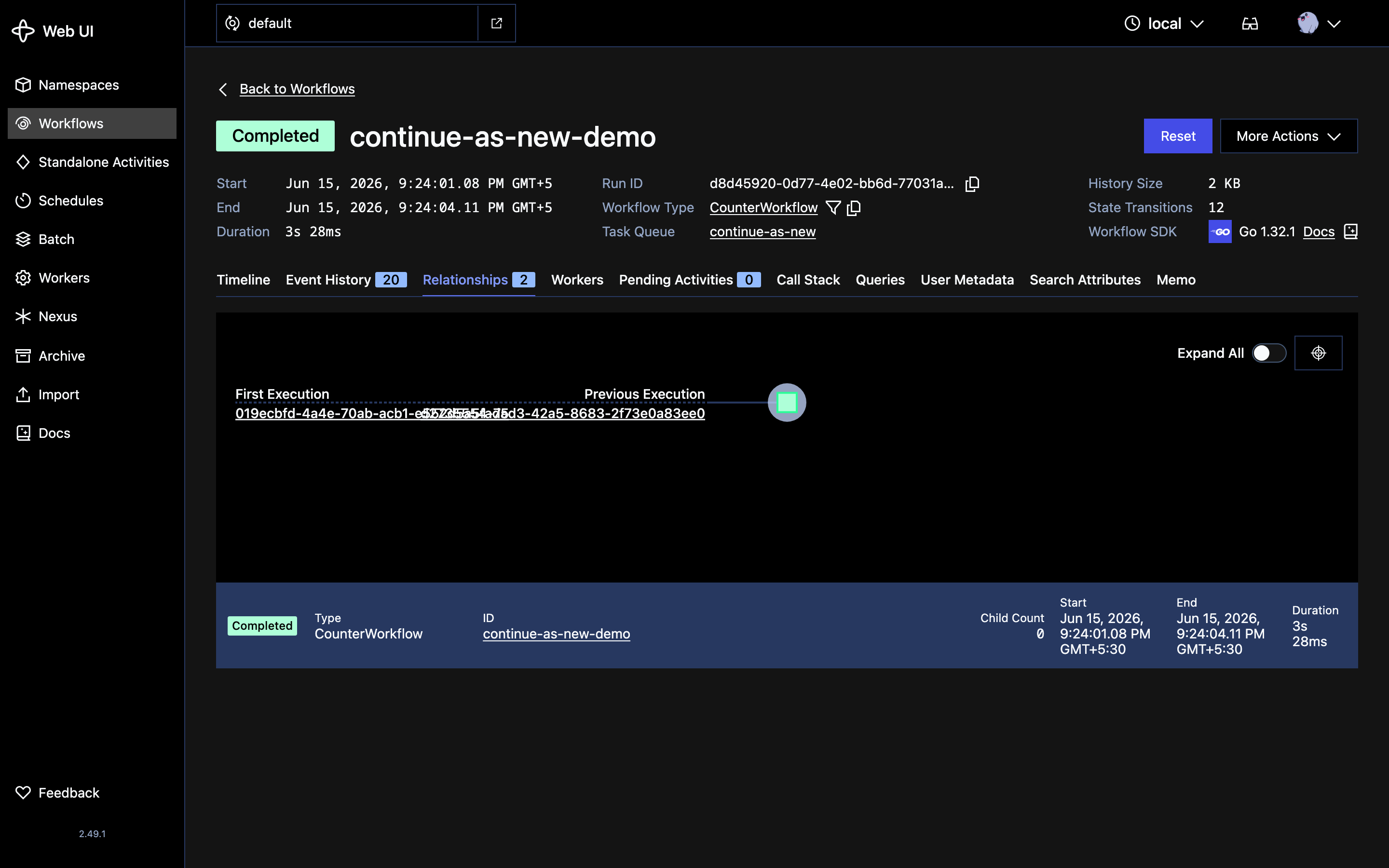

Pruning a growing history

  • You do not delete individual events from an open Workflow.
  • Use Continue-As-New to checkpoint state and start a fresh Run.
  • Same Workflow ID, new Run ID, new Event History.
  • Use it for long-running Workflows, entity Workflows, and high-event loops.
  • Temporal warns around 10,240 events / 10 MB; hard limit is 51,200 events / 50 MB.

Continue-As-New prunes live history by starting the next run with only the state you pass forward.

CoderMana

Limits you design around

Per Run (one Workflow execution), the caps that decide when to Continue-As-New:

What SDK warns Hard cap Escape hatch
Events in the history 10,240 51,200 Continue-As-New
History size 10 MB 50 MB Continue-As-New
A single payload ~256 KB 2 MB S3 reference (Day 6)
Pending Activities / Child Workflows ~2,000 each bounded batches, not all at once
  • Open Runs: exactly one per Workflow ID per Namespace; the ID frees up once that run closes.
  • These are server defaults (dynamic config), but the event and size caps are real stops. Blow past 51,200 events / 50 MB and the server terminates the Workflow.

The history caps are the true ceiling. Continue-As-New is how every unbounded Workflow stays under them.

CoderMana
Lab · Day 1

Hello Temporal

Challenge → day-01-foundations/lab-2-hello-temporal

make run-hello           # terminal 1: the Worker (stays up, polls the queue)
make run-hello-starter   # terminal 2: the starter, starts one Workflow

Worker and starter are separate processes, just like in production. They share only the Task Queue name. Order doesn't matter, start the Workflow first and the server holds it on the queue until a Worker polls.

CoderMana
Lab · Day 1

Hello Temporal: read the history

  1. Workflow appears in the Web UI under default namespace.
  2. Click into it; open the Event History tab.
  3. Identify WorkflowExecutionStarted and the ActivityTask* events.

Restart the Worker mid-run; the Workflow resumes. That's the lesson.

CoderMana

Wait: two Task Queues in one history?

Each WorkflowTaskScheduled event records the Task Queue it was dispatched on, and they differ:

// event 2, the first Workflow Task
"taskQueue": { "name": "hello-temporal", "kind": "TASK_QUEUE_KIND_NORMAL" }

// event 8, a later Workflow Task
"taskQueue": {
  "name":       "Dhruvtara.local:0506aff1-295c-4b05-bf85-1c362f3fffec",
  "kind":       "TASK_QUEUE_KIND_STICKY",
  "normalName": "hello-temporal"
}
  • name: for a sticky queue, an auto-generated, per-Worker host:uuid.
  • normalName: the real queue you named; what sticky falls back to.
CoderMana

Normal vs Sticky Task Queues

  • NORMAL: the durable queue you name. Every Worker on that name competes for its tasks. All Activities and the first Workflow Task of each run land here.
  • STICKY: an ephemeral, per-Worker queue the SDK creates automatically. After a Worker runs a Workflow Task, it caches the run in memory. The server then routes that run's next Workflow Tasks back to the same Worker, which continues without replaying the whole history.

Sticky is pure Worker optimisation (the "Workflow cache"). You never name one, and Activities are never sticky.

CoderMana

Sticky execution: and its fallback

  • Later Workflow Tasks for a run go to its sticky queue first.
  • If that Worker is gone or busy past StickyScheduleToStartTimeout (~5s default), the task falls back to the normal queue.
  • Another Worker then picks it up and replays from event 1 to rebuild state, correctness is never at risk, only the replay shortcut is lost.

This is exactly why the Workflow survives when you kill the Worker mid-run (the Hello lab's lesson). The sticky cache is an optimisation; the normal queue plus history is the guarantee.

CoderMana

Split brain: two Workers, one run

  Worker A ── runs Workflow Task ──╳   (network drops; cache still warm)
                                    │   server waits…
                WorkflowTaskTimeout ▼   (~10s) → task re-scheduled
  Worker B ── polls, replays from event 1, completes ──► history advances ✓
  Worker A ── reconnects, submits its result ─────────► REJECTED (stale)  ✗
  • The server accepts a completion only if it matches the run's current history version: a compare-and-swap. First writer wins.
  • Worker B's result is committed; A's is a stale write against an old version, so it's discarded. No coordination between the Workers required.
  • Exactly-once on Workflow state; at-least-once on Activity execution → Activities must be idempotent.

There is never a "merge two histories" step. Persistence serialises the writes; the loser is simply rejected.

CoderMana

Stateful for speed, stateless for truth

  • Sticky cache: a Worker keeps the run's in-memory state to skip replay. Pure speed.
  • Replay: any other Worker rebuilds that exact state from the event history. Pure correctness.
  • Determinism: the contract that makes replay reproduce the same state, on a different Worker, byte-for-byte.

Three views of one mechanism: the cache is disposable, the history is the truth, determinism is the bridge. Kill any Worker at any instant and the run is fine, its state was only ever a cached replay of events.

CoderMana

Workflow ID vs Run ID

Workflow ID Run ID
Who sets it you the server
Example hello-temporal-demo 019ecbcd-6981-7b00-…
Means the Workflow's business identity one execution attempt
Reuse reusable over time unique, immutable
New one on retry · continue-as-new · reset
  • Signal / query / cancel / describe target the Workflow ID (latest run by default).
  • One Workflow ID → a chain of Runs; only one open at a time per namespace.
CoderMana

If starting a Workflow fails

StartWorkflowExecution is a client RPC. Failure means different things:

Case What happened
Server rejects request No Workflow started: bad Namespace, auth, invalid options, ID conflict
Connectivity / timeout Ambiguous: the request may never have reached Temporal, or the response was lost after a successful start
Start accepted WorkflowExecutionStarted is persisted; Workflow is durable from that point
First Workflow Task fails Start still succeeded; the running Workflow now follows retry/failure rules
  • Use a stable Workflow ID for business idempotency.
  • On retry after an ambiguous client error, handle AlreadyStarted / Use Existing deliberately.
  • A Worker does not need to be online for start to succeed; the first Workflow Task waits on the Task Queue.

The commit point is the WorkflowExecutionStarted event, not the client's HTTP/gRPC response.

CoderMana

Start retry pattern

String workflowId = "order-" + orderId;            // stable business id
OrderWorkflow wf = client.newWorkflowStub(OrderWorkflow.class,
    WorkflowOptions.newBuilder().setWorkflowId(workflowId).setTaskQueue("orders").build());

try {
  WorkflowClient.start(wf::run, orderId);
} catch (WorkflowExecutionAlreadyStarted e) {
  // a prior attempt started it before the response came back, treat as success
}

Retry the start with the same Workflow ID. A duplicate start becomes "already exists," not duplicate business work.

CoderMana

Three names you'll conflate

Name What it is Here
Workflow Type the Workflow function / class GreetingWorkflow
Workflow ID the instance you started hello-temporal-demo
Task Queue the routing name Workers poll hello-temporal
  • Type is recorded from your code as WorkflowExecutionStarted.workflowType: the function name (Go) or @WorkflowMethod interface (Java).
  • ID you pick per run; Task Queue wires Workers to work.

Three independent strings, changing one doesn't touch the others.

CoderMana

"…Completed": which one?

Three events end in Completed; don't conflate them:

Event Means
WorkflowTaskCompleted a Worker finished deciding: ran your code to the next await
ActivityTaskCompleted one Activity returned its result
WorkflowExecutionCompleted the whole Workflow finished, the terminal event
  • Many WorkflowTaskCompleted (one per decision) + one per Activity.
  • Exactly one WorkflowExecutionCompleted, always last.

WorkflowTask = "the Worker thought"; ActivityTask = "real work ran."

CoderMana
Day 1

Architecture

What's inside the box.

CoderMana
Day 1 · on-ramp

Architecture

  • Where this fits: You've used Temporal from the outside; now a look inside the box you've been talking to.
  • Why it matters: Knowing the services and task flow demystifies timeouts, sticky queues and "stuck" Workflows.
  • By the end: You'll trace one Workflow start through Frontend, History, Matching and your Worker.
CoderMana

The cluster

                    ┌──────────────┐
   SDK / CLI  ────→ │   Frontend   │   gRPC API
                    └──────┬───────┘
                    ┌──────▼───────┐
                    │   History    │   workflow state machine
                    └──────┬───────┘
                    ┌──────▼───────┐
                    │   Matching   │   Task Queue dispatch
                    └──────┬───────┘
                    ┌──────▼───────┐
                    │ Persistence  │   PostgreSQL / Cassandra
                    └──────────────┘

Your Workers connect outbound to Frontend on :7233.

CoderMana

The cluster: four services + persistence

High-level Temporal architecture

Temporal Technologies, temporal/docs/architecture

CoderMana

The four services

Frontend History Matching Worker
Stateless gRPC gateway. Auth, rate-limiting, routing, request validation. Every SDK/CLI call lands here. Owns Workflow Execution state. Writes the event history, runs the state machine, enqueues tasks. Sharded. Hosts Task Queues. Matches tasks from History to Workers polling by queue name. Internal background service: replication, archival, schedules, batch ops, cleanup. Not your Worker.

Your application Worker is a client of this cluster, not part of it.

CoderMana

History Service & shards

  • Workflow state is partitioned into shards (e.g. 512 / 4096); each shard owns a slice of executions by hashed Workflow ID.
  • A shard is owned by exactly one History host at a time. That means a single writer and no per-workflow contention.
  • Ownership is a rangeID lease in persistence. If a partition makes two hosts both claim a shard, the first write bumps the lease; the other gets shard ownership lost and drops it, split brain resolved by the DB, not by merging.
  • Each shard drives its executions and processes internal task queues:
Internal queue Drives
Transfer tasks Push Workflow/Activity tasks to Matching; start child workflows
Timer tasks Fire durable timers, Workflow.sleep, timeouts, retries
Visibility tasks Update the searchable/visibility store
Replication tasks Ship events to other clusters (multi-cluster)

Scaling History = more shards spread across more History hosts.

CoderMana

Three task types

Task Worker does Result
Workflow Task Resume Workflow code until it blocks or completes Commands back to History (schedule activity, start timer, complete)
Activity Task Execute your Activity code (side effects allowed) Success/failure reported to History
Query Task Run a read-only query over current state Value returned; history not advanced

History produces tasks; Matching dispatches them; your Worker pulls and runs them.

CoderMana

Lifecycle: one Workflow start

1  Client  StartWorkflowExecution → Frontend → History (owning shard)
2  History  persist [WorkflowExecutionStarted, WorkflowTaskScheduled]
            + transfer task → Matching enqueues on the Task Queue
3  Worker   PollWorkflowTask (Frontend→Matching); Matching pings History
            → persist WorkflowTaskStarted, hand the events to the Worker
4  Worker   run code until it blocks → RespondWorkflowTaskCompleted
            command: ScheduleActivityTask
            → persist [WorkflowTaskCompleted, ActivityTaskScheduled] → Matching
5  Worker   PollActivityTask → persist ActivityTaskStarted → run Activity
6  Worker   RespondActivityTaskCompleted
            → persist [ActivityTaskCompleted, WorkflowTaskScheduled] → Matching
7  Worker   final Workflow Task → command: CompleteWorkflowExecution
            → persist [WorkflowTaskCompleted, WorkflowExecutionCompleted]  ✓

Nothing the Worker does is durable until History persists the resulting Event. Every arrow above is a write that happens before any Worker sees it.

CoderMana

…and the Event History it leaves

 1  WorkflowExecutionStarted     ← the client's StartWorkflowExecution
 2  WorkflowTaskScheduled
 3  WorkflowTaskStarted       ┐ Workflow Task #1
 4  WorkflowTaskCompleted     ┘ → command: ScheduleActivityTask
 5  ActivityTaskScheduled
 6  ActivityTaskStarted
 7  ActivityTaskCompleted
 8  WorkflowTaskScheduled
 9  WorkflowTaskStarted       ┐ Workflow Task #2
10  WorkflowTaskCompleted     ┘ → command: CompleteWorkflowExecution
11  WorkflowExecutionCompleted
  • The Worker issues Commands; the Service records each as an Event.
  • This append-only history is the Workflow's state, not the Worker's memory.
  • Replay feeds these Events back; the code's regenerated Commands must match, in order.
CoderMana

Lifecycle: who acts, and when

Client   Frontend History  Matching Worker
│───────→│───────→│        │        │  StartWorkflowExecution
│        │        │───────→│        │  persist WFExecStarted,WFTScheduled → Matching
│        │        │        │←───────│  PollWorkflowTask
│        │        │←───────│        │  RecordWorkflowTaskStarted
│        │        │────────────────→│  persist WFTStarted; deliver task + events
│        │        │        │        │  Worker runs code → blocks
│        │        │←────────────────│  RespondWFTCompleted [ScheduleActivity]
│        │        │───────→│        │  persist WFTCompleted,ActivityTaskScheduled → Matching
│        │        │        │        │  … Activity task, then final WFT → Completed

The Worker addresses neither History nor Matching directly: it polls through Frontend, Matching dispatches, History owns the record.

CoderMana

Lifecycle: every Command becomes an Event

Worker issues a Command Service records Event(s)
ScheduleActivityTask ActivityTaskScheduled
StartTimer TimerStarted
SignalExternalWorkflowExecution SignalExternalWorkflowExecutionInitiated
StartChildWorkflowExecution StartChildWorkflowExecutionInitiated
CompleteWorkflowExecution WorkflowExecutionCompleted
ContinueAsNewWorkflowExecution WorkflowExecutionContinuedAsNew

The Worker only ever proposes Commands. History decides, records the matching Event, and dispatches the resulting task. On replay, the code re-derives the same Commands from these Events. That's the determinism contract.

CoderMana

Lifecycle: the Worker's inner loop

   ┌─→ ① poll Task Queue → Workflow Task + history
   │   ② replay history → rebuild SDK state
   │   ③ run code from the cursor until it blocks
   │   ④ collect the Commands the code produced
   └── ⑤ RespondWorkflowTaskCompleted → History appends events
          (the next Workflow Task is scheduled; loop repeats)
  • Every Workflow Task replays the whole history so far, then runs only the new tail.
  • That loop is why a crash is a non-event: a fresh Worker re-enters at ① and rebuilds state at ②.
CoderMana

Lifecycle: the states a run moves through

                      ┌─→ Completed
                      ├─→ Failed
   start ─→ Running ──┼─→ Timed Out
                      ├─→ Canceled
                      ├─→ Terminated
                      └─→ Continued-As-New → new run, fresh history
  • The whole event trace lives inside Running; every other box is terminal.
  • Failed / Timed Out may be retried per the Workflow's Retry Policy, a new run.
  • Continue-As-New ends this run and starts a fresh one: the trick for long-running Workflows that would otherwise grow history without bound.
CoderMana

Cancel vs Terminate vs Reset: the scary buttons

The detail page's More Actions menu has three ways to intervene, not interchangeable:

Cancel Terminate Reset
Workflow gets a say? yes: a request it can catch no: killed at once replays instead
Cleanup / compensation? yes, if you coded it no n/a
Effect graceful stop hard stop rewind to an earlier event, re-run from there
Use when "stop, but tidy up" "it's wedged, stop now" "bad deploy/bug, replay with fixed code"

Cancel is cooperative. Terminate is kill -9. Reset is a time machine, a new Run from a past point.

CoderMana

What's on your laptop

temporal server start-dev bundles:

  • Frontend + History + Matching + internal Worker
  • PostgreSQL (or in-memory)
  • Web UI on :8233
  • Prometheus metrics on :7234 with --metrics-port

One binary today. Same gRPC contract as production.

CoderMana
Lab · Day 1 · optional

Hello Temporal on Docker

Challenge → day-01-foundations/lab-2-hello-temporal-docker

Same Workflow, real cluster. Only the environment changes:

make stack-temporal       # auto-setup + Postgres + UI on :7233 / :8233
make run-connect          # terminal 1: env-driven Worker
make run-connect-starter  # terminal 2: start one Workflow
  • Single binary → four services + PostgreSQL, each its own container.
  • No env, no creds → the plaintext branch defaults to 127.0.0.1:7233.
  • State now survives restarts, durable Postgres, not in-memory.
CoderMana
Lab · Day 1 · optional

Hello Temporal on the Cloud

Challenge → day-01-foundations/lab-2-hello-temporal-cloud

Same worker, Cloud creds make Connections.fromEnv() take the TLS branch:

export TEMPORAL_ADDRESS=...:7233   TEMPORAL_NAMESPACE=my-ns.acct
export TEMPORAL_API_KEY=...        # or TEMPORAL_TLS_CERT / _KEY
make run-connect           # Worker (terminal 1)
make run-connect-starter   # starter (terminal 2)
  • Set the namespace explicitly (my-ns.acct), not default.
  • Execution lands in the Cloud UI, not your laptop.
CoderMana
Lab · Day 1

Read the Event History

Challenge → day-01-foundations/lab-3-reading-event-history

temporal workflow show \
  --workflow-id hello-temporal-demo --output json \
  | jq '.events[].eventType'

Identify in order:

  • WorkflowTaskScheduled / Started / Completed - the decision loop
  • ActivityTaskScheduled / Started / Completed - the work loop
  • WorkflowExecutionCompleted - final outcome
CoderMana
Day 1 · the whole picture

How it all fits together

  1. You start a Workflow by a business ID, your durable handle to it.
  2. A Worker polling a Task Queue picks it up and runs your Workflow code.
  3. Workflow code calls Activities for anything with side effects, retried for you.
  4. Every step is appended to the Event History: the one source of truth.
  5. Crash anywhere, and the Worker replays that history: Workflow code re-executes, Activity results are restored.

Durable execution = your code, plus a history that lets it resume exactly where it left off.

CoderMana

Day 1 takeaways

  • One model: Workflow code re-executes on replay; Activity results are recorded.
  • One discipline: keep Workflow code deterministic; do all I/O in Activities.
  • One habit: pick Workflow IDs from business identity. They're durable handles.
CoderMana
Day 2

Building reliable Workflows

Async, retries, heartbeats - and the ways you interact with running executions.

CoderMana
Day 2

Async and parallel Activity execution

Promises, not threads.

CoderMana
Day 2 · on-ramp

Async and parallel Activity execution

  • Where this fits: Day 1 ran one Activity at a time; today you fan work out and wait on many.
  • Why it matters: This is how a 10-minute serial pipeline becomes a 1-minute parallel one, safely.
  • By the end: You'll start Activities concurrently with Promises and join them without threads.
CoderMana

Blocking: the model you already have

Normal code runs one line at a time. A call blocks: the next line waits until it returns.

String a = priceBook();   // wait here...
String b = priceLamp();   // ...only then start this, wait again

Two calls that don't depend on each other still run back-to-back. If each takes 1s, you wait 2s, for no reason.

Blocking is the default everywhere you've coded. Async is just about not waiting when you don't have to.

CoderMana

A Promise is a claim ticket

Order at a coffee shop: you hand over the order, get a number on a receipt, and step aside. The receipt isn't the coffee, it's a promise of coffee, handed to you instantly.

  • Placing the order = Async.function(...): starts the work, returns a Promise right away.
  • Walking up when your number is called = .get(): this is the only step that waits.

Getting the ticket is instant; only .get() blocks. That gap is the whole idea.

CoderMana

Same calls, different timing

Order three coffees, then collect them, all three baristas work at once. Order-wait, order-wait, order-wait and you've tripled the time for the same drinks.

Sequential:  order→wait  order→wait  order→wait     ~3 drinks of time
Async:       order order order  →  wait for all     ~1 drink of time

Sequential vs parallel isn't a different API, it's when you collect. Start everything first, collect last.

CoderMana

Exercise · The coffee run

You're getting coffee for 3 teammates. Each order takes the barista 4 minutes.

On paper, order these 6 steps so all three are ready in ~4 minutes, not 12:

  1. Collect Dana's coffee · 2. Place Amir's order · 3. Collect Amir's coffee
  2. Place Sam's order · 5. Place Dana's order · 6. Collect Sam's coffee

Which steps are the Async.function(...) calls? Which are the .get()s?

CoderMana

Why async: the mental model

An Activity call is a durable async call. It returns a Promise (a future result), not a blocked thread:

  • Async.function(act::method, arg) schedules the Activity and hands back a Promise immediately.
  • The Workflow parks on .get(): the Worker thread is freed. One JVM holds tens of thousands of parked Workflows as heap state, not threads.
  • The one rule: start every Activity you want in parallel before you .get() any of them.

Sequential vs parallel is just when you call .get(): same API, different timing.

CoderMana

Sequential vs Async

// Sequential - one Activity at a time
String rawUri = activities.extract(batchDate);
String cleanUri = activities.transform(rawUri);

// Async - two extracts run in parallel
Promise<String> rawUri   = Async.function(activities::extract, batchDate);
Promise<String> auditUri = Async.function(activities::extract, batchDate + "-audit");
String cleanUri      = activities.transform(rawUri.get());
String cleanAuditUri = activities.transform(auditUri.get());

Promise.get() blocks the Workflow loop, not an OS thread.

CoderMana

Exercise · Predict the clock

Each extract takes 2s; each transform takes 1s.

Promise<String> raw   = Async.function(activities::extract, a);
Promise<String> audit = Async.function(activities::extract, b);
String x = activities.transform(raw.get());
String y = activities.transform(audit.get());
  1. How long does a fully sequential version (4 blocking calls) take?
  2. How long does this version take, and why isn't it faster everywhere?
  • Hint: the two extracts overlap; the two transforms still run one at a time.
CoderMana

Fan-out / fan-in, in plain terms

A mailroom with 100 letters: hand all 100 out at once (fan-out), wait until the last clerk finishes (join), then stack every reply into one pile (fan-in).

  • Fan-out: start N independent jobs without waiting between them.
  • Fan-in: combine the N results once they're all back.

Split → do in parallel → combine. The code on the next slides is just this sentence in Java.

Java note: list.stream().map(f).toList() = "run f on each item, collect the results", a for-loop in one line.

CoderMana

Fan-out / fan-in: the shape

The everyday parallel pattern: do N independent things, then combine. Three steps:

  1. Fan-out: map each item to an Async.function(...) call, collecting the Promises into a list (don't .get() yet).
  2. Join: Promise.allOf(list).get() parks until every branch finishes.
  3. Fan-in: reduce the resolved values (sum, merge, collect).

The whole trick is step 1: build the list of Promises before you await any, that's what makes it parallel instead of a sequential loop.

CoderMana

Fan-out / fan-in

import io.temporal.workflow.Async;
import io.temporal.workflow.Promise;

List<Promise<Integer>> counts =
    partitions.stream()
        .map(p -> Async.function(activities::processPartition, p))
        .toList();

Promise.allOf(counts).get();                 // wait for every branch
int total = counts.stream().mapToInt(Promise::get).sum();

All partitions run in parallel; the Workflow suspends across all of them.

Javadoc: Async · Promise

CoderMana

Exercise · Spot the serial bug

This looks parallel but runs one Activity at a time. Find the line that kills the concurrency:

int total = 0;
for (String p : partitions) {
  Promise<Integer> c = Async.function(activities::processPartition, p);
  total += c.get();          // <-- ?
}

Pair up, 2 minutes. Then rewrite it so all partitions run at once.

CoderMana

More async shapes: procedure & race

Two variants on the same parking model:

  • Async.procedure: for void Activities (no return); Async.function is for ones that return a value.
  • Promise.allOf waits for every branch; Promise.anyOf wakes on the first to finish, a race.

Pick allOf to gather all results, anyOf to act on the fastest and move on.

CoderMana

Async.procedure & first-to-finish

// void Activities use Async.procedure (Async.function is for return values)
List<Promise<Void>> sends =
    userIds.stream().map(id -> Async.procedure(notify::send, id)).toList();
Promise.allOf(sends).get();

// race two providers; continue when the FIRST returns
Promise<String> primary  = Async.function(notify::askPrimary, q);
Promise<String> fallback = Async.function(notify::askFallback, q);
Promise.anyOf(primary, fallback).get();

allOf waits for every branch; anyOf wakes on the first.

CoderMana

When one branch fails

By default a failed branch's .get() throws: and an unhandled throw aborts the whole fan-out.

  • To survive partial failure, wrap each branch's .get() in a try/catch and record a per-branch outcome.
  • The other branches keep their results; you decide what a partial success means.

All-or-nothing is the default; per-branch handling is a deliberate choice.

CoderMana

Partial failure in a fan-out

Map<Integer, Promise<String>> futures = new LinkedHashMap<>();
for (int p : partitions)
  futures.put(p, Async.function(activities::processWithStatus, p));

Map<Integer, String> result = new LinkedHashMap<>();
for (var e : futures.entrySet()) {
  try { result.put(e.getKey(), e.getValue().get()); }
  catch (ActivityFailure failure) {
    result.put(e.getKey(), "FAILED: " + failure.getMessage());
  }
}

One branch failing doesn't sink the others - collect per-branch outcomes.

CoderMana

Bounding a fan-out

Unbounded Async.function over 10k items schedules all 10k at once: fine for the Workflow loop, but it can flatten a fragile downstream that only tolerates ~20 in-flight calls.

  • Gate the loop with an in-Workflow counter and Workflow.await(() -> inFlight < max): the deterministic equivalent of a bounded thread pool.
  • Don't reach for java.util.concurrent.Semaphore: blocking a real thread isn't replay-safe. Workflow.await is the durable wait.

Keep the pipeline full without overwhelming the dependency, cap concurrency, not total work.

CoderMana

Bounded fan-out

int[] inFlight = {0};
List<Promise<Void>> sends = new ArrayList<>();

for (String id : userIds) {
  Workflow.await(() -> inFlight[0] < maxInFlight);   // park until a slot frees
  inFlight[0]++;
  sends.add(Async.procedure(notify::send, id)
      .thenApply(ignored -> { inFlight[0]--; return null; }));  // release on done
}
Promise.allOf(sends).get();

thenApply decrements as each branch finishes; await releases the next only when there's room.

CoderMana
Lab · Day 2

Async + parallel activities

Challenge → day-02-reliability/lab-1-async-parallel-activities

make run-async           # terminal 1: the Worker
make run-async-starter   # terminal 2: start one Workflow

In the Web UI:

  1. Note that all ActivityTaskScheduled events appear with the same timestamp.
  2. Compare to a sequential variant: events stagger.
  3. Pair: predict what happens if one of three parallel Activities fails.
CoderMana

The fan-out, in the history

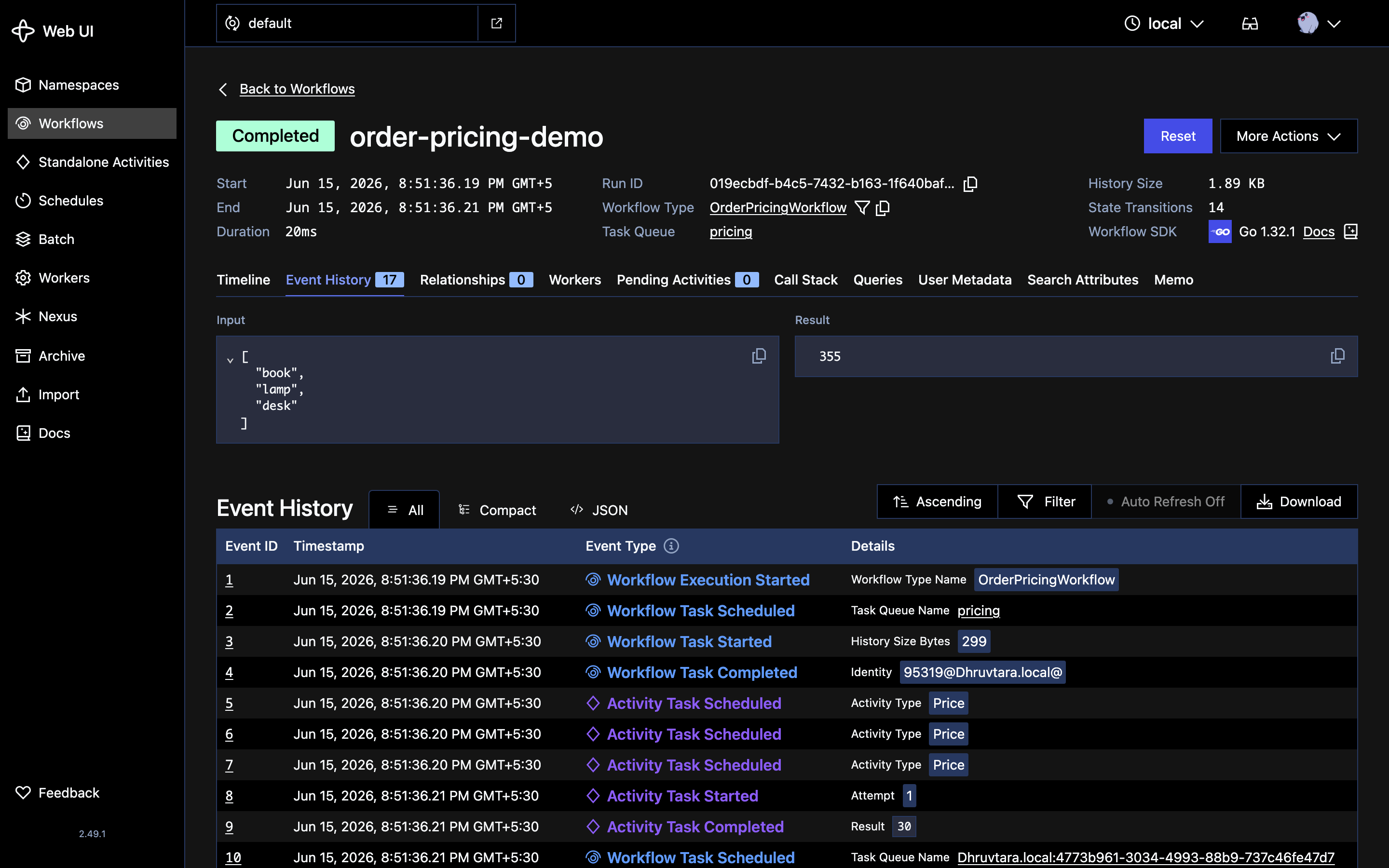

Event History for order-pricing-demo, ascending: after a single Workflow Task Completed at event 4, three consecutive Activity Task Scheduled events (5, 6, 7), each for the Price activity, prove all three SKUs were priced in parallel

Read the history top-down (Ascending):

  • 1–4: the Workflow starts; the Worker runs its first Workflow Task.
  • 5, 6, 7: three ActivityTaskScheduled in a row. One Workflow Task emitted all three, so the fan-out is concurrent.
  • 8 onward: the activities start and complete. A final Workflow Task then closes the run with WorkflowExecutionCompleted.

A sequential version interleaves schedule, start, and complete for each item, one Workflow Task per item, staggered.

CoderMana
Day 2

Retries, timeouts, heartbeats

Know what each setting controls or you'll misuse all of them.

CoderMana
Day 2 · on-ramp

Retries, timeouts, heartbeats

  • Where this fits: Async got work running; now you make each step survive a flaky downstream.
  • Why it matters: Pick the wrong timeout and you either hang forever or give up too soon, both page someone.
  • By the end: You'll know what each of the three timeouts controls and when a heartbeat earns its keep.
CoderMana

Three timeouts

Setting Controls
startToCloseTimeout One attempt's wall-clock budget
scheduleToCloseTimeout Total budget across all retry attempts
scheduleToStartTimeout How long an Activity sits in the queue before pickup
heartbeatTimeout Max gap between heartbeats; detects Worker death

If you can't say why a timeout is 5 minutes, it's wrong.

CoderMana

Setting them deliberately

import io.temporal.activity.ActivityOptions;
import io.temporal.common.RetryOptions;

ActivityOptions.newBuilder()
    .setStartToCloseTimeout(Duration.ofMinutes(5))
    .setScheduleToCloseTimeout(Duration.ofMinutes(30))
    .setHeartbeatTimeout(Duration.ofSeconds(30))
    .setRetryOptions(
        RetryOptions.newBuilder()
            .setInitialInterval(Duration.ofSeconds(5))
            .setBackoffCoefficient(2.0)
            .setMaximumInterval(Duration.ofMinutes(1))
            .setMaximumAttempts(6)
            .build())
    .build();

6 × 5min attempts + 6 backoff waits ≈ 33min, set scheduleToClose to bound it.

Javadoc: ActivityOptions · RetryOptions

CoderMana

Retries, live: the Pending Activities tab

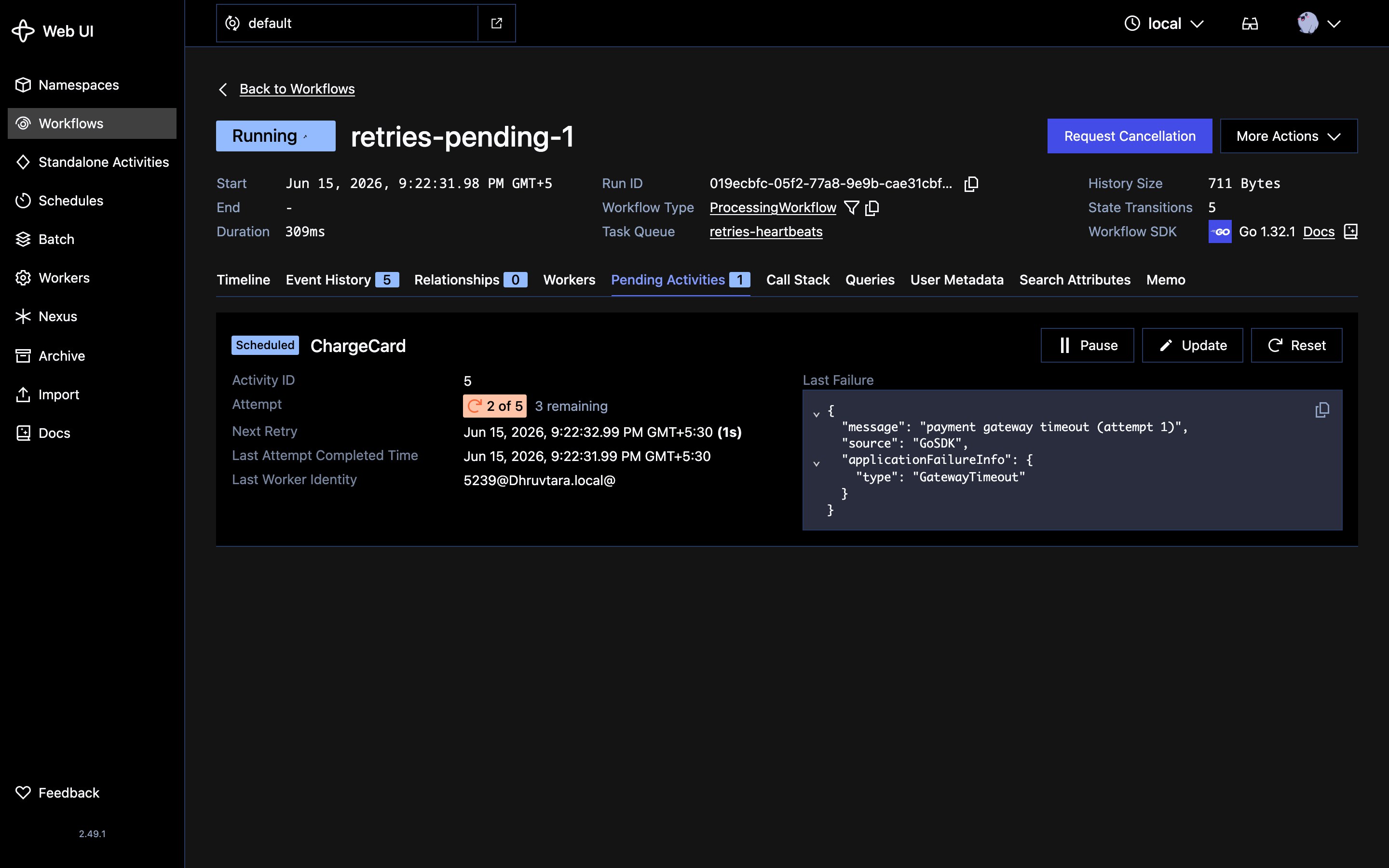

Pending Activities tab of a running Workflow: the ChargeCard Activity is Scheduled, Attempt 2 of 5 with 3 remaining, a Next Retry countdown, and a Last Failure panel showing the GatewayTimeout application error as JSON

While an Activity is retrying, the Pending Activities tab is the only place the attempts show up live:

  • Attempt 2 of 5: the current try vs. RetryOptions.MaximumAttempts.
  • Next Retry: when the backoff fires (InitialInterval × BackoffCoefficient, capped by MaximumInterval).
  • Last Failure: the error thrown by the previous attempt (here a GatewayTimeout application error).

Once the Activity succeeds, the panel empties. The history keeps only the final ActivityTaskStarted: with its attempt count and last failure, not one event per retry.

CoderMana

Activity retry vs Workflow retry

Two different retry scopes, people set the wrong one:

Activity RetryPolicy Workflow RetryPolicy
Set on ActivityOptions WorkflowOptions
Retries one Activity attempt the whole Workflow run
Default on: unlimited attempts off: no retry
For transient I/O failures (the 99% case) crash-only restart of an entire run
  • Almost all retry logic belongs on the Activity: that's where side effects and flakiness live.
  • A Workflow retry restarts from event 0 as a new Run, rarely what you want.

The knob you reach for daily is the Activity RetryPolicy; Workflow retry is the rare exception.

CoderMana

Heartbeats: why

A long Activity (export 1000 pages, transcode a video) has a problem: if the Worker dies at page 900, a plain retry restarts at page 0.

  • A heartbeat is a periodic "still alive, at page N" ping from the Activity to the server.
  • It buys two things. Liveness: miss the heartbeatTimeout and the server reschedules the Activity on another Worker. Resumability: the retry reads the last heartbeat detail and continues from page N.
  • Only long-running Activities need it; short ones finish before any timeout.

A heartbeat checkpoints an Activity, the way continue-as-new checkpoints a Workflow.

CoderMana

Heartbeats

public String exportLargeTable(String tableName) {
  for (int page = 0; page < 1000; page++) {
    try {
      exportPage(tableName, page);
      Activity.getExecutionContext().heartbeat(page);
    } catch (ActivityCanceledException | ActivityPausedException stop) {
      cleanupPartialExport(tableName, page); throw stop;
    }
  }
  return "s3://exports/" + tableName;
}

On retry, read the last heartbeat detail and resume from page N.

CoderMana

Resume from the last heartbeat

public String backfill(String dataset) {
  ActivityExecutionContext ctx = Activity.getExecutionContext();

  // On a retry, read the detail from the previous attempt's last heartbeat.
  int startPage = ctx.getHeartbeatDetails(Integer.class).orElse(0);

  for (int page = startPage; page < 100_000; page++) {
    copyPage(dataset, page);
    ctx.heartbeat(page);            // checkpoint: this page is done
  }
  return "backfilled " + dataset;
}

getHeartbeatDetails(...).orElse(0) is the resume API, empty on attempt 1, the last checkpoint on every retry.

CoderMana

Racing an Activity against a deadline

Sometimes a long Activity must be abandoned if it overruns, but you still want it to clean up first.

  • A CancellationScope wraps the Activity; cancelling the scope sends a cancellation to it.
  • That cancellation arrives on the Activity's next heartbeat, which throws. The Activity catches it and deletes partial work before exiting.
  • Drive it with Workflow.await(deadline, …) to enforce the time budget.

Cancellation is cooperative, it rides the heartbeat, so only heartbeating Activities can be stopped mid-flight.

Javadoc: CancellationScope

CoderMana

CancellationScope - race against a deadline

CompletablePromise<String> result = Workflow.newPromise();

CancellationScope scope = Workflow.newCancellationScope(
    () -> result.completeFrom(Async.function(exports::exportLargeTable, table)));
scope.run();

if (!Workflow.await(deadline, result::isCompleted)) {
  scope.cancel("export deadline exceeded");   // Activity's next heartbeat throws
  throw ApplicationFailure.newFailure("export timed out", "ExportTimeout");
}
return result.get();

Cancellation flows to the Activity via heartbeat; it cleans up partial work.

CoderMana
Day 2

Determinism, reinforced

The rules that keep replay honest.

CoderMana
Day 2 · on-ramp

Determinism, reinforced

  • Where this fits: A checkpoint: the handful of rules that keep replay honest, now that you're writing real logic.
  • Why it matters: These are the traps that pass code review and then fail on the first replay in production.
  • By the end: You'll spot the common non-determinism bugs before the SDK does.
CoderMana

Common traps

  • Map.Entry.getKey() iteration over HashMap - JVM-version-dependent.
  • Instant.now(), LocalDateTime.now().
  • UUID.randomUUID() → use Workflow.randomUUID().
  • CompletableFuture, ExecutorService → use Async.function, Workflow.newPromise.
  • Throwing checked exceptions across the Workflow boundary - prefer ApplicationFailure.

The replay tests on Day 4 catch all of these.

CoderMana
Day 2

Signals and Queries

Push data in. Pull data out.

CoderMana
Day 2 · on-ramp

Signals and Queries

  • Where this fits: So far Workflows ran start-to-finish alone; now you talk to one while it's running.
  • Why it matters: This is how a long-running Workflow takes input and exposes state, without a database.
  • By the end: You'll push a Signal in and pull state out with a Query, and read both in the history.
CoderMana

Talking to a running Workflow: which one?

A Workflow is a live object, not a job you fire and forget. Three ways to interact, picked by intent:

Signal Query Update
Direction push in read out call in → out
Synchronous? no, fire-and-forget yes yes
Change state? yes no (read-only) yes
In the history? yes no yes
Can be rejected? no n/a yes (validator)

Signal = "here's an event." Query = "what's your state?" Update = "do this and tell me the result."

Javadoc: @SignalMethod · @QueryMethod · @UpdateMethod

CoderMana

Signals - push data in

@WorkflowInterface
interface ApprovalWorkflow {
  @WorkflowMethod  String run(String requestId);
  @SignalMethod    void approve(String approver);
  @QueryMethod     String currentState();
}

@Override
public String run(String requestId) {
  Workflow.await(() -> state.startsWith("APPROVED"));
  return state;
}

@Override
public void approve(String approver) { state = "APPROVED by " + approver; }
CoderMana

Queries - pull data out

@Override
public String currentState() { return state; }
  • Read-only function over current in-memory state.
  • No history events. No Activities. No side effects.

Synchronous and cheap. Routed to whichever Worker has the workflow cached.

CoderMana

Queries in the Web UI

Temporal Web UI Queries tab for the running approval-demo Workflow: a Query Type dropdown set to currentState, a Query Arg box, and a Run Query button, it runs synchronously against the live Workflow and writes nothing to history

The Queries tab runs a Query against the live Workflow, on demand:

  • Pick a registered Query Type (currentState) and hit Run Query.
  • The result is the Workflow's current in-memory state. A Worker that has the run cached rebuilds it by replaying to "now".
  • Nothing is written to history: Queries are read-only, so you can poll them freely.

Empty tab? No Worker is polling, a Query needs a live Worker with the run cached.

CoderMana
Lab · Day 2

Signals + Queries

Challenge → day-02-reliability/lab-2-signals-and-queries

make run-approval           # terminal 1: the Worker (stays up)
make run-approval-starter   # terminal 2: start the approval-demo Workflow

# then drive it from the CLI
temporal workflow signal --workflow-id approval-demo \
  --name approve --input '"alice"'
temporal workflow query --workflow-id approval-demo \
  --type currentState

Send the Signal before the Workflow starts; see what happens.

CoderMana
Day 2

Updates

Synchronous, validated, write-capable RPC into a running Workflow.

CoderMana
Day 2 · on-ramp

Updates

  • Where this fits: Signals are fire-and-forget; an Update is the request/response version that can reject bad input.
  • Why it matters: It replaces the "Signal, then poll a Query" dance with one validated, blocking call.
  • By the end: You'll call into a running Workflow and get a result back, with a validator guarding the door.
CoderMana

Updates: a validated, blocking call

An Update is the request/response way into a Workflow: the caller waits for a result, and the Workflow can reject bad input before recording anything.

  • Mark the handler @UpdateMethod; add an optional @UpdateValidatorMethod that runs first.
  • Validator throws → the Update is rejected and never hits history (cheap, no audit noise).
  • Accepted → it mutates state and returns a value to the caller.

Use an Update (not a Signal) when the caller needs the outcome, or you must validate before admitting.

CoderMana

@UpdateMethod + @UpdateValidatorMethod

@WorkflowInterface
interface CartWorkflow {
  @WorkflowMethod  String checkout(String cartId);
  @UpdateMethod    int addItem(String sku, int quantity);

  @UpdateValidatorMethod(updateName = "addItem")
  void validateAddItem(String sku, int quantity);
}
  • Caller blocks on .getResult().
  • Validator runs before the update is admitted to history.
  • Reject cheaply; don't pollute the audit trail.
CoderMana

Don't want to block? startUpdate

A typed addItem(...) call blocks until the Update finishes. When you'd rather fire it and keep working:

  • startUpdate(...) returns a handle as soon as the Update reaches the stage you pick.
  • The WorkflowUpdateStage is required: it says how far to wait before handing back the handle. Pick ACCEPTED or COMPLETED.
  • Call handle.getResult() later, only when you actually need the value.

Same Update; the only choice is when you block, now (typed call) or later (handle).

CoderMana

startUpdate - start now, get result later

WorkflowStub stub = client.newUntypedWorkflowStub(workflowId);

WorkflowUpdateHandle<Integer> handle =
    stub.startUpdate("addItem", WorkflowUpdateStage.COMPLETED,
        Integer.class, "book", 2);

// ... do other work; the Update is already in flight ...
int itemCount = handle.getResult();   // block only when you need the value
  • WorkflowUpdateStage is required: ACCEPTED or COMPLETED.
  • A typed-stub addItem(...) call blocks outright; startUpdate hands back a handle.
CoderMana

Start-or-signal: one idempotent entry

A Kafka consumer, or any event source, can't know whether the Workflow for a key already exists. So bare start() throws on the second event for that key.

  • signalWithStart means: start the Workflow if absent, then deliver this Signal. It's atomic, every time.
  • First event for order-123 starts it; every later event just signals the running execution.

The idempotent entry point for event-driven Workflows, never branch on "does it exist yet?"

CoderMana

signalWithStart

BatchRequest batch = client.newSignalWithStartRequest();
batch.add(workflow::run, orderId);
batch.add(workflow::orderEvent, event);
client.signalWithStart(batch);
  • First event for a key: workflow starts.
  • Later events: signal the existing execution.

Bare start() throws WorkflowExecutionAlreadyStarted on event #2.

CoderMana

Create + update in one round trip

Sometimes you want to start a Workflow and immediately ask it something, in a single call:

  • startUpdateWithStart creates the Workflow if absent, applies an Update, and returns its result, one round trip.
  • The Update half is the same validated @UpdateMethod from before.

The synchronous cousin of signalWithStart: start-or-reuse, but it hands back a result.

CoderMana

startUpdateWithStart

WithStartWorkflowOperation<String> start =
    WithStartWorkflowOperation.newBuilder(workflow::process)
        .setArguments(request.orderId()).build();

WorkflowUpdateHandle<String> update =
    client.startUpdateWithStart(
        start, "submit", WorkflowUpdateStage.COMPLETED, String.class, request);

return update.getResult();

One round trip. Creates the Workflow if absent, applies the Update, returns.

CoderMana
Lab · Day 2

Updates

Challenge → day-02-reliability/lab-3-updates

make run-approval           # Worker stays up
make run-approval-starter   # start the approval-demo Workflow

# Sync update against the running workflow
temporal workflow update execute --workflow-id approval-demo \
  --name changeNote --input '"expedite before close of business"'

Verify the response is the new workflow state, not a generic 202.

CoderMana

Signals & Updates in the history

Event History for approval-demo (Completed, Result "PO-1001 APPROVED by alice (expedite before close of business)"): the table shows Workflow Execution Signaled for approve, plus Workflow Execution Update Accepted and Update Completed for changeNote, and no Query events

Unlike Queries, Signals and Updates are durable events: they show up in history:

  • WorkflowExecutionSignaled: the approve Signal that woke the await.
  • …UpdateAccepted → …UpdateCompleted: changeNote: validator admitted it, then it ran.
  • The Result reflects both; no Query events: reading state leaves no trace.

Replay re-applies these events, so Signal/Update effects survive restarts; a Query you just re-run.

CoderMana
Day 2

Schedules

Replacing Airflow's scheduler.

CoderMana
Day 2 · on-ramp

Schedules

  • Where this fits: This is the piece that directly replaces Airflow's scheduler.
  • Why it matters: Cron specs, catchup and overlap policy live in Temporal now, one less system to babysit.
  • By the end: You'll define a recurring Workflow and control what happens when runs pile up.
CoderMana

Defining a Schedule

A Schedule is a durable server object that starts a Workflow on a spec, Temporal's replacement for cron / Airflow's scheduler.

  • A Schedule has three parts: an action (which Workflow, which Task Queue), a spec (when to fire), and a policy (overlap, jitter, catchup).
  • The server owns it; you manage it with ScheduleClient: create, pause, trigger, delete.

You define what and when; the server fires it. No always-on scheduler process of your own.

Javadoc: Schedule · ScheduleClient

CoderMana

Hourly schedule

import io.temporal.client.schedules.*;  // Schedule, ScheduleSpec, ScheduleActionStartWorkflow…

Schedule schedule = Schedule.newBuilder()
    .setAction(ScheduleActionStartWorkflow.newBuilder()
        .setWorkflowType(OrdersWorkflow.class)
        .setOptions(WorkflowOptions.newBuilder().setTaskQueue("orders").build())
        .build())
    .setSpec(ScheduleSpec.newBuilder()
        .setIntervals(List.of(new ScheduleIntervalSpec(Duration.ofHours(1))))
        .setJitter(Duration.ofMinutes(5))
        .build())
    .setPolicy(SchedulePolicy.newBuilder()
        .setOverlap(ScheduleOverlapPolicy.SCHEDULE_OVERLAP_POLICY_BUFFER_ONE)
        .build())
    .build();

scheduleClient.createSchedule("hourly-orders", schedule, ScheduleOptions.newBuilder().build());

Durable Temporal object. Survives redeploy. Overlap is explicit.

Javadoc: Schedule · io.temporal.client.schedules

CoderMana

Calendar specs, catchup & overlap

Two questions every scheduler must answer, Temporal makes both explicit knobs:

  • When: a cron expression or calendar/interval spec, with optional jitter to avoid thundering herds.
  • If it's late or still running: catchupWindow bounds how much it backfills after downtime. The overlap policy decides what happens when the previous run hasn't finished.

Airflow's schedule_interval + catchup + max_active_runs, but as explicit, bounded settings.

CoderMana

Cron, catchup & overlap

ScheduleSpec.newBuilder()
    .setCronExpressions(List.of("0 9 * * *"))  // = Airflow schedule_interval
    .setJitter(Duration.ofMinutes(5)).build();
SchedulePolicy.newBuilder()
    .setCatchupWindow(Duration.ofHours(1))     // = Airflow catchup, but bounded
    .setOverlap(ScheduleOverlapPolicy.SCHEDULE_OVERLAP_POLICY_SKIP).build();
Overlap policy When a run is still going
SKIP drop the new run
BUFFER_ONE / BUFFER_ALL queue one / queue all
ALLOW_ALL run concurrently
CANCEL_OTHER / TERMINATE_OTHER stop the running one first
CoderMana

Schedules in the Web UI

Temporal Web UI Schedule detail for daily-sales-report-schedule: status Running, target Workflow DailyReportWorkflow, a Recent Runs panel, Schedule Input "daily-sales", Schedule Spec "Every day at 9:00 AM UTC", and a list of upcoming run times

The Schedules tab (left rail) lists every Schedule; click one for this detail:

  • Spec: the calendar/interval you set (Every day at 9:00 AM UTC) + the Upcoming Runs it implies.
  • Schedule Input: the argument handed to each run ("daily-sales").
  • Recent Runs: what has fired; Pause stops firing without deleting the Schedule.
  • A Schedule is a durable server object, not a cron line on a box, it survives redeploys. Overlap decides what happens when a run is still going.
CoderMana
Lab · Day 2

Schedules

Challenge → day-02-reliability/lab-4-schedules

make run-schedules
temporal schedule list
temporal schedule describe --schedule-id daily-sales-report-schedule

Discuss:

  • What does SCHEDULE_OVERLAP_POLICY_SKIP mean for a 90-minute job that fires hourly?
  • Pause + resume from the CLI; observe what the schedule does.
CoderMana
Day 2

Child Workflows and timeouts

When to compose. How to bound.

CoderMana
Day 2 · on-ramp

Child Workflows and timeouts

  • Where this fits: You've built single Workflows. Now you compose them, and you cap how long anything runs.
  • Why it matters: Picking child vs. Activity, and the right timeout, keeps big workflows from sprawling.
  • By the end: You'll decide when to spawn a child and how to cap a Workflow's lifetime.
CoderMana

Child Workflow vs Activity: when?

Both let a parent delegate work. Reach for a Child Workflow only when the sub-task is itself a workflow:

Use an Activity when… Use a Child Workflow when…
it's one unit of work (a call, a job) it has its own multi-step orchestration
no independent retries/timeouts needed it needs its own history, timeouts, Task Queue
the result fits the parent's history its events would bloat the parent's history
you want it on a different Worker pool

Default to an Activity. Compose a Child Workflow when the sub-task deserves its own identity and history.

CoderMana

Child Workflows

FraudWorkflow fraud = Workflow.newChildWorkflowStub(FraudWorkflow.class,
    ChildWorkflowOptions.newBuilder().setTaskQueue("fraud").build());
ShippingWorkflow shipping = Workflow.newChildWorkflowStub(ShippingWorkflow.class,
    ChildWorkflowOptions.newBuilder().setTaskQueue("shipping").build());

Promise<String> fraudDecision = Async.function(fraud::check, orderId);
Promise<String> shippingPlan  = Async.function(shipping::plan, orderId);

Promise.allOf(fraudDecision, shippingPlan).get();

Children get independent identity, history, Task Queue, timeouts.

CoderMana

Child Workflows in the UI: Relationships

Relationships tab for batch-parent-demo: a parent-over-three-children tree, and a table listing BatchWorkflow batch-parent-demo with Child Count 3, then three ItemWorkflow children item-A, item-B, item-C, each Completed with its own start, end and duration

The parent's Relationships tab shows the tree it spawned:

  • The parent (BatchWorkflow, batch-parent-demo) with Child Count 3.
  • Each child (ItemWorkflow, item-A/B/C) is its own Workflow: own ID, own history, own page. Click a row to open it.
  • They ran in parallel (overlapping start/end) and each Completed independently.

A child is a first-class Workflow, not a sub-step hidden in the parent's history. That's the point of composing.

CoderMana

Fanning out children: ParentClosePolicy

A nightly billing run spawns one child Workflow per tenant: each independently queryable and retryable by its own ID.

  • By default a child terminates when its parent closes. ParentClosePolicy.PARENT_CLOSE_POLICY_ABANDON lets long tenant jobs outlive the coordinator.
  • Start every child before joining (collect the Promises first) so all tenants bill in parallel.

ABANDON decouples child lifetime from the parent, the coordinator's job is to launch, not to babysit.

CoderMana

Per-tenant child fan-out

for (String tenantId : tenantIds) {
  TenantBillingWorkflow child = Workflow.newChildWorkflowStub(
      TenantBillingWorkflow.class,
      ChildWorkflowOptions.newBuilder()
          .setWorkflowId("billing-" + tenantId)
          .setParentClosePolicy(ParentClosePolicy.PARENT_CLOSE_POLICY_ABANDON)
          .setWorkflowExecutionTimeout(Duration.ofHours(1))
          .build());
  futures.put(tenantId, Async.function(child::run, tenantId));   // start, don't block
}
futures.forEach((id, p) -> results.put(id, p.get()));            // then join

Each tenant gets its own Workflow ID and history; ABANDON lets it finish even if the parent doesn't.

CoderMana

Workflow timeouts

WorkflowOptions.newBuilder()
    .setWorkflowExecutionTimeout(Duration.ofDays(7))  // across continue-as-new
    .setWorkflowRunTimeout(Duration.ofHours(12))      // this run only
    .setTaskQueue("orders")
    .build();
  • WorkflowExecutionTimeout - hard cap, all continuations.
  • WorkflowRunTimeout - cap for this run; forces continuation.
CoderMana

Day 2 takeaways

  • One async pattern: Async.function + Promise.allOf. Yields the Workflow loop, not threads.
  • One Kafka/REST rule: signalWithStart, never bare start.
  • One sync RPC: startUpdateWithStart for "POST and wait for result."
CoderMana
Day 3

Kafka integration

Kafka is the bus between teams. Temporal is the brain inside one team.

CoderMana
Day 3

Temporal + Kafka architecture

Different jobs. Used together.

CoderMana
Day 3 · on-ramp

Temporal + Kafka architecture

  • Where this fits: You live in Kafka already; today is where Kafka and Temporal divide the work.
  • Why it matters: Used wrong, they overlap and fight. Used right, each does the job it's best at.
  • By the end: You'll say which problems belong to Kafka and which to Temporal, and why.
CoderMana

Who owns what

Concern Owner
Append-only event log, replayable by offset Kafka
Fan-out to many independent consumers Kafka
State of a single business transaction Temporal
Retry / timeout / compensation logic Temporal
Long-running human / external waits Temporal

Kafka tells you what happened. Temporal tells you where we are.

CoderMana

Kafka consumer as Activity

@Override
public List<String> pollBatch(String topic) {
  consumer.subscribe(List.of(topic));
  List<String> values = new ArrayList<>();
  while (values.size() < 100) {
    ConsumerRecords<String, String> records = consumer.poll(Duration.ofSeconds(1));
    for (ConsumerRecord<String, String> record : records) {
      values.add(record.value());
      Activity.getExecutionContext()
          .heartbeat(record.topic() + ":" + record.partition() + ":" + record.offset());
    }
  }
  consumer.commitSync();   // commit ONLY after success
  return values;
}
CoderMana

Emitting events back to Kafka

When a Workflow needs to publish a result, wrap the producer in an Activity:

  • The send is a side effect → it lives in an Activity, never in Workflow code.
  • Make the producer idempotent (enable.idempotence, acks=all) and give it a stable key. Then a retried Activity won't duplicate.
  • Temporal is at-least-once. Add an idempotent keyed producer and you get effectively-once per key.

The Worker may retry the send; idempotent + keyed is what makes that safe.

CoderMana

Producer Activity

properties.put(ProducerConfig.ENABLE_IDEMPOTENCE_CONFIG, "true");
properties.put(ProducerConfig.ACKS_CONFIG, "all");

@Override
public void publishOutcome(String orderId, String outcome) {
  producer.send(new ProducerRecord<>("order-outcomes", orderId, outcome)).join();
}
  • Idempotent producer + stable key = at-least-once becomes effectively-once by key.
  • Downstream still dedupes.
CoderMana

Atomic DB write + event: the outbox

You can't atomically write your DB and publish to Kafka. They're two systems with no shared transaction, and 2PC is the thing to avoid.

  • Write the business row and an outbox row in one DB transaction. They commit or fail together.
  • A separate Activity (or Debezium) reads the outbox and publishes to Kafka, marking rows sent.

Turn "two side effects across systems" into "one local transaction + a relay."

CoderMana

Outbox pattern

transactionTemplate.execute(status -> {
  orderRepository.save(order);
  outboxRepository.save(new OutboxMessage(
      "order-events", order.id(),
      json.serialize(new OrderAccepted(order.id()))));
  return null;
});
  • One DB transaction = atomic business row + outbox row.
  • Publish to Kafka in a separate Activity / Debezium.

Two side effects across systems can't be atomic without 2PC. Outbox sidesteps that.

CoderMana
Day 3

Signal-driven Workflows

Replacing Kafka-triggered Airflow DAGs.

CoderMana
Day 3 · on-ramp

Signal-driven Workflows

  • Where this fits: The concrete migration: a Kafka-triggered Airflow DAG becomes a Signal-driven Workflow.
  • Why it matters: It removes the brittle "consumer kicks off a DAG" glue you maintain today.
  • By the end: You'll bridge a Kafka topic to a running Workflow with Signals.
CoderMana

The pattern

  1. One Workflow per business entity (e.g. per orderId).
  2. Workflow ID = "order-" + orderId.
  3. Kafka consumer is a thin bridge: signalWithStart for every event.
  4. Commit offsets after signalWithStart returns.

Bare start() throws WorkflowExecutionAlreadyStarted on event #2.

CoderMana

The bridge

BatchRequest batch = client.newSignalWithStartRequest();
batch.add(workflow::run, orderId);
batch.add(workflow::orderEvent, record.value());
client.signalWithStart(batch);
consumer.commitSync();
  • First event for orderId starts the workflow.
  • Subsequent events signal the existing execution.
  • Offset commit happens after the signal lands.
CoderMana
Day 3

End-to-end pipeline

Kafka → Temporal → Kafka.

CoderMana
Day 3 · on-ramp

End-to-end pipeline

  • Where this fits: The pieces assembled: Kafka in, Temporal in the middle, Kafka out.
  • Why it matters: This is the shape of most event-driven systems you'll actually ship.
  • By the end: You'll run a full consume → orchestrate → produce pipeline and read it in the history.
CoderMana
Lab · Day 3

Run the pipeline

Challenge → day-03-kafka/lab-1-kafka-pipeline

make stack-kafka      # KRaft broker on :9092
make run-kafka        # Worker + bridge

# in another terminal
kcat -b localhost:9092 -t orders -P -k "order-1" <<< 'NEW:line-item-A'
kcat -b localhost:9092 -t order-outcomes -C -o end -f 'key=%k value=%s\n'

Send a second event for the same key. Watch it Signal the existing workflow.

CoderMana

The bridge, in the history

Event History for order-100 (one Workflow per order key): event 1 is WorkflowExecutionStarted and events 2, 7, 11 are WorkflowExecutionSignaled with signal name orderEvent, three Kafka messages for the same key produced one start and two signals, never a second Workflow

Three Kafka messages for key 100 → one Workflow order-100:

  • Event 1 WorkflowExecutionStarted: the first message started it (via signalWithStart).
  • Events 2, 7, 11 WorkflowExecutionSignaled (orderEvent), every later message signals the running execution.
  • No second Workflow: bare start() would throw AlreadyStarted on message #2.

One long-lived Workflow per key, fed by Signals, the Kafka-bridge pattern, proven in the history.

CoderMana

Partition fan-out

Two strategies:

  • Outside the Workflow - one Workflow per partition. Many small histories.
  • Inside the Workflow - one Workflow processes a range of partitions in parallel Activities.

Pick based on whether the partitions share business state.

CoderMana

Inside-Workflow fan-out

List<Promise<Integer>> counts =
    ranges.stream()
        .map(range -> Async.function(activities::processRange, range))
        .toList();

Promise.allOf(counts).get();
int total = counts.stream().mapToInt(Promise::get).sum();

Bound the fan-out: don't open 1,000 partitions inside one history.

CoderMana
Lab · Day 3

Fan-out by partition

Challenge → day-03-kafka/lab-2-partition-fanout

# Produce to multiple partitions (auto-create OR pre-create with 4)
make kafka-topic TOPIC=orders PARTITIONS=4

for i in 1 2 3 4; do
  echo "evt-$i" | kcat -b localhost:9092 -t orders -P -k "order-$i"
done

In the Web UI, observe 4 separate Workflow executions, one per key.

CoderMana

DLQ vs Temporal retry exhaustion

Failure type Belongs in
Transient (network) Temporal retry (free)
Poison message (malformed) DLQ topic for triage
Business rule rejection DLQ or audit topic
Catch-all DLQ after Temporal exhausts

Temporal retries solve transient. DLQ catches what retry can't fix.

CoderMana

DLQ Activity

try {
  orders.validate(orderId);
} catch (ActivityFailure exhausted) {
  dlq.publish(orderId, exhausted.getMessage());
}
  • Workflow catches ActivityFailure (retry exhausted).
  • Publishes to DLQ; Workflow completes successfully.
  • The order failed; the Workflow did its job.
CoderMana

Day 3 takeaways

  • signalWithStart is the only correct Kafka bridge primitive.
  • Commit Kafka offsets only after the unit of work is durably accepted.
  • DLQ catches what Temporal retries cannot fix. Different problems.
CoderMana
Day 4

Production engineering

Versioning, sizing, observability, replay tests, namespaces, Airflow migration.

CoderMana
Day 4

Workflow versioning

Shipping new code without breaking in-flight Workflows.

CoderMana
Day 4 · on-ramp

Workflow versioning

  • Where this fits: Your code is running in production; now you change it without breaking in-flight Workflows.
  • Why it matters: A careless deploy can non-deterministically corrupt every executing Workflow at once.
  • By the end: You'll ship a behavior change safely with the versioning API.
CoderMana

Why versioning exists

Day 1: deploy v1. Workflow runs against v1 history.

Day 30: deploy v2 that reorders two Activities.

In-flight Workflow resumes against v2 code with v1 history → non-determinism error.

You need v2 code to behave like v1 until past the change-point.

CoderMana

Workflow.getVersion

int v = Workflow.getVersion("charge-before-reserve", Workflow.DEFAULT_VERSION, 1);

if (v == Workflow.DEFAULT_VERSION) {
  payments.reserve(orderId);
  payments.charge(orderId);
} else {
  payments.charge(orderId);
  payments.reserve(orderId);
}

The change-point name is identity. Treat like a migration filename. Never recycle.

CoderMana

Two ways a Worker adopts new code

When you deploy new code, what happens to in-flight runs? Choose per Workflow type:

  • PINNED: in-flight runs stay on the old code until they finish. New code only takes new runs. Right for short-lived Workflows: drain, then deploy.
  • AUTO_UPGRADE: long-runners pick up newer compatible code automatically. Right for Workflows that live for months.

Short-lived → PINNED. Long-lived → AUTO_UPGRADE. (getVersion, from the previous slide, patches within one definition.)

CoderMana

Versioning behavior

@WorkflowVersioningBehavior(VersioningBehavior.PINNED)
class ShortLivedCheckoutWorkflow implements CheckoutWorkflow { ... }

@WorkflowVersioningBehavior(VersioningBehavior.AUTO_UPGRADE)
class SubscriptionLifecycleWorkflow implements SubscriptionWorkflow { ... }
  • PINNED - drain in-flight on old Workers, then deploy.
  • AUTO_UPGRADE - long-runners pick up newer compatible code automatically.
CoderMana
Day 4

Worker sizing & Task Queue design

Sized for resource profile, not business domain.

CoderMana
Day 4 · on-ramp

Worker sizing & Task Queue design

  • Where this fits: Workflows work; now you make Workers carry production load.
  • Why it matters: Task Queues are sized by resource profile, not domain, get this wrong and you over- or under-provision.
  • By the end: You'll know the levers, slots, pollers, tuners, and how to set them deliberately.
CoderMana

The levers

Setting Controls Default
maxConcurrentWorkflowTaskExecutionSize In-flight workflow decisions on this Worker 200
maxConcurrentActivityExecutionSize In-flight Activity attempts 200
maxConcurrentLocalActivityExecutionSize In-flight local Activities 200
ResourceBasedTuner Auto-scale Worker slots vs CPU / memory targets off (fixed slots)
CompositeTuner Mix strategies: fixed workflow slots + resource-based activity slots off
Sticky execution Worker caches workflows; skips full replay each task on · cache 600
setUsingVirtualWorkflowThreads(true) Cheaper SDK Workflow threads inside the Worker Factory false
setUsingVirtualThreads(true) (JDK 21+) Cheaper Activity execution threads inside one Worker false
Number of Task Queues One pool per resource profile 1

Pollers default to 5 workflow-task + 5 activity-task per Worker; rate limits (maxActivitiesPerSecond) default to 0 = unlimited.

CoderMana

The levers, mapped to one Worker

1 Worker  ──►  runs n Workflows + m Activities      (one Task Queue, one JVM)

a  workflows    maxConcurrentWorkflowTaskExecutionSize    int      default 200
b  activities   maxConcurrentActivityExecutionSize        int      default 200
c  wf threads   setUsingVirtualWorkflowThreads(true)      boolean  default false
d  act threads  setUsingVirtualThreads(true)              boolean  default false

a, b, d are WorkerOptions (per Task Queue); c is WorkerFactoryOptions (whole factory). c and d are both virtual threads — c for Workflow threads, d for Activity threads.

CoderMana

The other levers, same shape

e  local work    maxConcurrentLocalActivityExecutionSize   int      default 200
f  wf pollers     maxConcurrentWorkflowTaskPollers          int      default 5
g  act pollers    maxConcurrentActivityTaskPollers          int      default 5
h  worker rate    setMaxActivitiesPerSecond                 double   default 0 = ∞
i  queue rate     setMaxTaskQueueActivitiesPerSecond        double   default 0 = ∞
j  slot tuner     setWorkerTuner(tuner)                     —        default off
k  sticky cache   setWorkflowCacheSize                      int      default 600
l  fan-out        Task Queue count                          int      default 1

0 = ∞ (unlimited). h caps this Worker's Activity starts/sec; i caps the whole queue server-side. j off → fixed slots from a/b/e; swap in ResourceBasedTuner / CompositeTuner to auto-size. k is WorkerFactoryOptions; l is a design choice — one queue per resource profile.

CoderMana

Who's polling?: the Workers / Pollers tab

A Workflow's Workers tab on the Pollers subtab: one poller 19330@Dhruvtara.local with a Build ID, a Last Accessed time, and checkmarks under Workflow Task Handler and Activity Handler, confirming a Worker is actively polling this Task Queue

A Workflow's Workers → Pollers tab answers "is anything polling this Task Queue?":

  • Each poller is a Worker thread pulling tasks, shows its identity (pid@host), Build ID, Last Accessed.
  • The Workflow / Activity Handler ticks show what that Worker registered.
  • No pollers → tasks pile up, nothing runs, first thing to check when a Workflow is stuck.
CoderMana

Workers across machines

orders Task Queue
   ├── worker JVM on pod-a / vm-a
   ├── worker JVM on pod-b / vm-b
   └── worker JVM on pod-c / vm-c
  • Every Worker polling the same Task Queue is in the same pool.
  • Matching hands each task to one available poller. Workers compete for tasks; they don't coordinate directly.
  • Total capacity is roughly: machines × Worker processes × execution slots.
  • Sticky Workflow cache is per Worker process; if that process disappears, another Worker replays from history.

Machines scale the pool. Slots limit concurrency inside each Worker.

CoderMana

Threads vs virtual threads

Layer Platform threads Virtual threads
Workflow execution SDK workflow threads; deterministic, park at Temporal waits setUsingVirtualWorkflowThreads(true) makes those cheaper
Activity execution One blocking Activity can occupy one OS-backed thread setUsingVirtualThreads(true) makes blocking I/O Activities cheaper
Temporal semantics Same Task Queues, histories, retries, timeouts Same semantics, only JVM scheduling cost changes
  • Virtual threads help blocking I/O-heavy Activity pools.
  • They do not make CPU-bound Activities faster; CPU still caps throughput.
  • Long Workflow waits still do not park a JVM thread; Temporal records timers and resumes later.

Virtual threads increase how much one JVM can hold; extra machines increase the Worker pool.

CoderMana

Manual sizing

Worker worker = factory.newWorker(
    "io-heavy",
    WorkerOptions.newBuilder()
        .setMaxConcurrentActivityExecutionSize(200)   // default 200
        .setMaxConcurrentWorkflowTaskExecutionSize(20) // default 200, capped down
        .build());

I/O-heavy workload: many concurrent Activities, few workflow tasks. Both default to 200; here we leave Activities at the default and cap workflow tasks down to 20.

CoderMana

Cheaper concurrency: virtual threads

Activity slots cost threads. On JDK 21+, virtual threads make those threads almost free:

  • setUsingVirtualWorkflowThreads(true) runs execution on virtual threads. One Worker can then hold far more concurrent Activities per host, especially I/O-bound ones.
  • Frees you from sizing slot counts around OS-thread limits.

The easy lever for high-concurrency, I/O-heavy Activity workloads (JDK 21+ only).

CoderMana

Virtual-thread Worker

WorkerFactoryOptions factoryOptions =
    WorkerFactoryOptions.newBuilder()
        .setUsingVirtualWorkflowThreads(true)
        .build();

Worker worker =
    factory.newWorker(
        "high-concurrency-activities",
        WorkerOptions.newBuilder()
            .setUsingVirtualThreads(true)
            .setMaxConcurrentActivityExecutionSize(1_000)
            .build());

Same Task Queue. Same retries. More blocking I/O Activities can fit in one JVM.

CoderMana

Let the host decide: resource-based slots

Fixed slot counts are a guess. A resource-based tuner sizes the Worker to the machine instead:

  • You set target CPU / memory (e.g. 75% / 80%); the SDK grows or shrinks slots to hold that.
  • Best for mixed or unpredictable workloads, where any fixed number is wrong half the time.

Stop hand-tuning slot counts per host, target a utilisation and let it adapt.

CoderMana

Resource-based tuner

ResourceBasedTuner tuner =
    ResourceBasedTuner.newBuilder()
        .setControllerOptions(
            ResourceBasedControllerOptions.newBuilder()
                .setTargetMemoryUsage(0.75)
                .setTargetCpuUsage(0.80)
                .build())
        .build();

Worker worker = factory.newWorker(
    "payments", WorkerOptions.newBuilder().setWorkerTuner(tuner).build());

Auto-fit Worker slot counts to host capacity. Best fit for mixed workloads.

CoderMana

Mix strategies per slot type

A WorkerTuner decides how many slots each task type gets. CompositeTuner takes one SlotSupplier per slot type, so each can use the strategy that fits it:

  • CompositeTuner(workflowTaskSupplier, activitySupplier, localActivitySupplier): three independent suppliers, one per slot type.
  • FixedSizeSlotSupplier<>(N): hands out exactly N slots, never more (same effect as setMaxConcurrent…Size(N)). Use where load is predictable, e.g. workflow-task decisions.
  • ResourceBasedSlotSupplier: grows / shrinks slots against CPU & memory targets. Use where load isn't, e.g. I/O-heavy Activities.

Pin the cheap, predictable slots with FixedSizeSlotSupplier; auto-size the expensive ones with ResourceBasedSlotSupplier. CompositeTuner is just the holder that lets them coexist.

CoderMana

CompositeTuner - mix strategies

ResourceBasedController controller =
    ResourceBasedController.newSystemInfoController(
        ResourceBasedControllerOptions.newBuilder()
            .setTargetMemoryUsage(0.75).setTargetCpuUsage(0.80).build());

WorkerTuner tuner = new CompositeTuner(
    new FixedSizeSlotSupplier<>(20),                       // workflow task slots
    ResourceBasedSlotSupplier.createForActivity(           // activity slots
        controller, ResourceBasedSlotOptions.getDefaultInstance()),
    new FixedSizeSlotSupplier<>(20));                      // local activity slots

Fixed where load is predictable; resource-based where it isn't.

CoderMana

Protecting a fragile downstream: rate limits

Slot tuners size for your throughput; sometimes the constraint is theirs: a legacy API or vendor with a hard QPS cap.

  • setMaxActivitiesPerSecond caps this Worker's Activity starts/sec.
  • setMaxTaskQueueActivitiesPerSecond caps the whole Task Queue: server-enforced across every replica, so the dependency never sees more than N QPS no matter how far you scale.

Tuners throttle for capacity; these two knobs throttle to respect a downstream limit.

CoderMana

Rate-limiting an Activity pool

Worker worker = factory.newWorker(
    "legacy-api-calls",
    WorkerOptions.newBuilder()
        .setMaxActivitiesPerSecond(50)             // this Worker: 50/sec
        .setMaxTaskQueueActivitiesPerSecond(100)   // whole queue: 100/sec, all replicas
        .build());

Scale to 20 replicas and the vendor still sees ≤ 100 QPS, the task-queue cap is enforced server-side.

CoderMana
Day 4

Observability

Metrics on day one.

CoderMana
Day 4 · on-ramp

Observability

  • Where this fits: Before you trust this in production, you need to see inside it.
  • Why it matters: Temporal emits the metrics; wiring them on day one saves the 2 AM blind debugging session.
  • By the end: You'll expose SDK metrics, add your own, and trace one request across Workflow and Activities.
CoderMana

Key SDK metrics

Metric Tells you
temporal_workflow_task_schedule_to_start_latency Worker capacity vs demand
temporal_workflow_completed_total Throughput
temporal_workflow_failed_total Real failures
temporal_activity_execution_failed_total Bad downstream / retry config
temporal_sticky_cache_size Replay overhead / memory health
temporal_activity_schedule_to_start_latency Activity backlog

Wire via Micrometer → Prometheus → your existing Grafana.

CoderMana

Micrometer wiring

PrometheusMeterRegistry registry = new PrometheusMeterRegistry(PrometheusConfig.DEFAULT);

Scope scope = new RootScopeBuilder()
    .reporter(new MicrometerClientStatsReporter(registry))
    .reportEvery(com.uber.m3.util.Duration.ofSeconds(10));

WorkflowServiceStubs service = WorkflowServiceStubs.newServiceStubs(
    WorkflowServiceStubsOptions.newBuilder().setMetricsScope(scope).build());
CoderMana

Beyond the built-ins: your own metrics

The SDK emits task latencies and counts for free. For business signals, you add your own:

  • Grab the SDK's metrics scope inside an Activity and emit counters / gauges / timers.
  • They ride the same Micrometer → Prometheus pipeline as the built-in metrics.

"How many orders compensated today?" is a metric you emit, Temporal doesn't know your domain.

CoderMana

Custom Activity metric

class InvoiceActivitiesImpl implements InvoiceActivities {
  private final Counter invoices;
  InvoiceActivitiesImpl(MeterRegistry registry) {
    this.invoices = Counter.builder("training_invoices_generated_total").register(registry);
  }
  @Override public String generateInvoice(String orderId) {
    invoices.increment();
    return "s3://invoices/" + orderId + ".pdf";
  }
}

Same Micrometer registry as the SDK metrics; your KPIs sit beside Temporal's.

CoderMana

One trace across Workflow + Activities

A request that spans a Workflow and several Activities should be one distributed trace, not disconnected spans:

  • An OpenTelemetry interceptor carries the trace context across every boundary: Workflow → Activity → child-Workflow.
  • Spans land in your existing backend (Jaeger, Tempo, Honeycomb…).

Wire the interceptor once on the client + Worker; causality across the whole execution comes for free.

CoderMana

Tracing with OpenTelemetry (Java)

// No official temporal-opentelemetry for Java: bridge the OTel SDK
// through the OpenTracing shim, then use Temporal's interceptors.
OpenTracingOptions ot = OpenTracingOptions.newBuilder()
    .setTracer(OpenTracingShim.createTracerShim(otelSdk))   // OTel → OpenTracing
    .build();

client  = WorkflowClient.newInstance(service, WorkflowClientOptions.newBuilder()
    .setInterceptors(new OpenTracingClientInterceptor(ot)).build());
factory = WorkerFactory.newInstance(client, WorkerFactoryOptions.newBuilder()
    .setWorkerInterceptors(new OpenTracingWorkerInterceptor(ot)).build());

Gotcha: give the OTel SDK a real propagator (W3C TraceContext). The default is no-op → spans still export, but fragment into separate traces.

CoderMana

One connected trace

StartWorkflow:OrderWorkflow              ← client / starter
└─ RunWorkflow:OrderWorkflow             ← worker   (FOLLOWS_FROM)
   ├─ StartActivity:ValidateOrder  →  RunActivity:ValidateOrder
   ├─ StartActivity:ChargePayment  →  RunActivity:ChargePayment
   └─ StartActivity:ShipOrder      →  RunActivity:ShipOrder

The Workflow + Activity code never mentions tracing — the interceptors do it. One trace, two processes (client + Worker), in Jaeger.

CoderMana

OpenTelemetry vs OpenTracing

SDK Native tracing module OTel path
Go contrib/opentelemetry (+ legacy …/opentracing) native interceptor
Python contrib.opentelemetry only native interceptor
Java temporal-opentracing only OpenTracing interceptors + OTel shim
  • OpenTracing is archived → superseded by OpenTelemetry. Use OTel for new work.
  • Migrating is mostly swapping the tracer / exporter; the Temporal interceptor surface barely changes.

Backend is agnostic — Jaeger ingests OTLP either way.

CoderMana
Lab · Day 4

Distributed tracing → Jaeger

examples/runnable/19-distributed-tracing (Java · Go · Python)

make stack-trace        # Jaeger UI :16686 + OTLP :4317/:4318
make temporal           # dev server
make run-trace          # Worker   (terminal 1)
make run-trace-starter  # starter  (terminal 2)
make jaeger             # open http://localhost:16686

In Jaeger, pick service temporal-client-java, Find Traces, open the latest: the client's start span with the Workflow + Activity spans nested underneath.

CoderMana
Lab · Day 4

Local dashboard

Challenge → day-04-production/lab-1-observability

make stack-obs        # Prometheus + Grafana
make temporal         # dev server with --metrics-port 7234
open http://localhost:3000
make load-transform N=50

In Grafana, open the Temporal Training - Overview dashboard and watch:

  1. temporal_workflow_completed_total climb.
  2. temporal_workflow_failed_total increment when you force a failure.
CoderMana

The dashboard, live

Temporal Training Grafana dashboard (dark theme) with four live panels fed by a Worker exporting SDK metrics to Prometheus: Workflow tasks scheduled rate (~10/s), Workflow task schedule-to-start latency p95 (~0.047s), Workflow completed/failed rate climbing, and Activity attempts/failures rate climbing

The Worker exports SDK metrics to Prometheus; Grafana renders the overview:

  • Tasks scheduled + schedule-to-start latency (p95): your capacity signal. Rising latency means Workers can't keep up.
  • Workflow completed / failed and Activity attempts / failures: the health signals.
  • All temporal_* families, counters (*_total) and latency histograms (*_seconds).

Wire metrics on day one, schedule-to-start latency is the number KEDA autoscales on (Day 6).

CoderMana

Finding live Workflows: Search Attributes

Metrics give you aggregates; Search Attributes let ops filter and group individual executions, "all orders in REFUNDING for tenant acme."

  • Register custom keys once per namespace: temporal operator search-attribute create --name OrderStage --type Keyword.
  • From inside the Workflow, Workflow.upsertTypedSearchAttributes(...) tags the execution; update it as state changes so temporal workflow list and the UI stay current.

Indexed, queryable metadata on a running Workflow, the bridge from a Workflow to your ops dashboards.

CoderMana

Typed Search Attributes from a Workflow

// Register once per namespace:
//   temporal operator search-attribute create --name OrderStage --type Keyword
private static final SearchAttributeKey<String> ORDER_STAGE =
    SearchAttributeKey.forKeyword("OrderStage");

Workflow.upsertTypedSearchAttributes(ORDER_STAGE.valueSet("RECEIVED"));
activities.charge(orderId);
Workflow.upsertTypedSearchAttributes(ORDER_STAGE.valueSet("CHARGED"));  // update as it moves

Now temporal workflow list --query "OrderStage='CHARGED'" finds every matching live execution.

CoderMana
Day 4

Namespace strategy

Isolation boundary, not a routing primitive.

CoderMana
Day 4 · on-ramp

Namespace strategy

  • Where this fits: One more production decision: how you carve tenants and environments apart.
  • Why it matters: A namespace is an isolation boundary, not a routing key, confusing the two bites later.
  • By the end: You'll decide when to split namespaces and how retention applies to each.
CoderMana

When to split namespaces

Scenario Namespace shape
Dev / staging / prod One namespace per environment
Regulated tenant isolation One namespace per tenant
Shared SaaS tenants One namespace per env; tenant ID in Search Attributes
Different retention SLAs Separate namespace per retention class

Namespace ≠ Task Queue. Task Queue routes work; Namespace bounds it.

CoderMana

Access control stops at the namespace

Self-hosted: mTLS authenticates the connection; two Go hooks authorize the call.

Hook Job
ClaimMapper token → who you are + your namespace Role
Authorizer claims + API call → allow / deny
  • The default Authorizer only checks you hold some role on the namespace, it ignores the Role level and the Task Queue.
  • Finer than a namespace (per-Task-Queue, per-Workflow) = a custom Authorizer: the one hook that sees the request.
  • Cloud: RBAC is fixed (account + namespace roles); Workers use Service Accounts + scoped API keys; finer grain = more namespaces.

No config knob between "one namespace" and "write your own Authorizer."

CoderMana

Namespace retention operations

Retention is Namespace-level policy for closed Workflow histories.

temporal operator namespace describe --namespace default
temporal operator namespace update --namespace default --retention 7d
temporal workflow delete --namespace default \
  --workflow-id <workflow-id> --run-id <run-id>
  • Reduce future storage: lower Namespace retention.
  • Remove one closed execution now: temporal workflow delete.
  • Preserve old histories externally: enable History Archival.
CoderMana
Day 4

Testing

In-process Workflow tests with time skipping.

CoderMana
Day 4 · on-ramp

Testing

  • Where this fits: You've written Workflows; now you test them without a server or a real clock.
  • Why it matters: Fast in-process tests with time-skipping make day-long timers testable in milliseconds.
  • By the end: You'll unit-test a Workflow with mocked Activities and skipped time.
CoderMana

Testing Workflows: no server, no clock

Workflow logic is deterministic, so you can test it in-process: no Docker, no real Temporal, no waiting:

  • TestWorkflowEnvironment runs a Worker + client inside your test JVM.
  • Time-skipping is the headline: a Workflow that sleeps 30 days completes in milliseconds. The test clock jumps straight to the next timer.

Unit-test orchestration like ordinary code, fast and hermetic.

Javadoc: TestWorkflowEnvironment

CoderMana

TestWorkflowEnvironment

TestWorkflowEnvironment env = TestWorkflowEnvironment.newInstance();
Worker worker = env.newWorker("test-reminder");
worker.registerWorkflowImplementationTypes(ReminderWorkflowImpl.class);
env.start();

ReminderWorkflow wf = env.getWorkflowClient().newWorkflowStub(
    ReminderWorkflow.class,
    WorkflowOptions.newBuilder().setTaskQueue("test-reminder").build());

var run = WorkflowClient.start(wf::remindAfterOneDay, "ship report");
env.sleep(Duration.ofDays(1));        // durable timer skipped - runs instantly
assertEquals("Reminder: ship report",
    env.getWorkflowClient()
       .newUntypedWorkflowStub(run.getWorkflowId()).getResult(String.class));

No Docker. No network. Time skipping - a one-day durable timer completes in milliseconds.

CoderMana

JUnit 5 + mocked Activities

For real test suites, skip the manual env wiring and isolate the logic:

  • TestWorkflowExtension injects the env / worker / typed stub into each @Test.
  • Mock the Activities (Mockito) so the test exercises Workflow logic only: zero network, zero DB.

Assert the orchestration: given these Activity results, the Workflow reaches this outcome.

CoderMana

JUnit 5 extension + mocked Activities

@RegisterExtension
static final TestWorkflowExtension ext = TestWorkflowExtension.newBuilder()
    .setWorkflowTypes(ReminderWorkflowImpl.class).setDoNotStart(true).build();
@Test
void completes(TestWorkflowEnvironment env, Worker worker, ReminderWorkflow wf) {
  ReminderActivities activities = mock(ReminderActivities.class);
  when(activities.lookupEmail("u1")).thenReturn("u1@example.com");
  worker.registerActivitiesImplementations(activities);
  env.start();
  assertEquals("sent to u1@example.com", wf.remind("u1"));
}

Extension injects env/worker/stub; Mockito mocks Activities - zero I/O.

CoderMana
Lab · Day 4

In-process tests

Challenge → day-04-production/lab-2-testing-workflows

make run-testing
  • The test uses Workflow.sleep(Duration.ofDays(1)).
  • It still completes in <1 second.
  • Try changing the sleep to 30 days; same test time.
CoderMana
Day 4

Workflow replay testing

Catching determinism regressions before they reach production.

CoderMana
Day 4 · on-ramp

Workflow replay testing

  • Where this fits: The test that specifically guards the determinism rules from Day 2.
  • Why it matters: It catches the version-breaking change before the deploy, not after.
  • By the end: You'll replay a recorded history against new code and catch the regression.
CoderMana

Capture & replay

# Capture
temporal workflow show --workflow-id order-1001 \
  --output json > histories/order-1001.json

// Replay
@Test
void replaysProductionHistory() throws Exception {
  WorkflowReplayer.replayWorkflowExecutionFromResource(
      "histories/order-1001.json", OrderSagaWorkflowImpl.class);
}

Refactor breaks an in-flight workflow → CI fails before you ship.

CoderMana

What a non-determinism failure looks like

Reorder two Activities, then replay the old history, the replayer rejects it:

[TMPRL1100] nondeterministic workflow:
  history event is  ActivityTaskScheduled  (ActivityId: 5, Name: Extract …)
  replay command is ScheduleActivityTask   (ActivityId: 5, Name: Load …)
  • History scheduled Extract as command #5; the new code emits Load there.
  • The SDK won't guess, it fails the replay rather than corrupt state.

Real output from the lab's TestReorderedCodeBreaksReplay. In CI this fires before the deploy, not on a live run.

CoderMana
Lab · Day 4

Build a replay corpus

Challenge → day-04-production/lab-3-replay-testing

For a Workflow you wrote on Day 1-2:

  1. Run 3 executions covering: happy path, retry, cancellation.
  2. Capture each with temporal workflow show ... --output json.
  3. Drop them into src/test/resources/histories/.
  4. Add a WorkflowReplayer test per file.
  5. Modify the Workflow to reorder Activities; watch the test fail.

Javadoc: WorkflowReplayer

CoderMana
Day 4

Migrating Airflow DAGs

A decision framework.

CoderMana
Day 4 · on-ramp

Migrating Airflow DAGs

  • Where this fits: Stepping back: a framework for deciding what to move, and in what order.
  • Why it matters: Not every DAG should move; knowing which saves wasted migrations.
  • By the end: You'll have a decision rule for migrate-or-keep and a safe migration order.
CoderMana

Migrate or not?

DAG shape Verdict
Simple ETL on a fixed schedule Stay on Airflow, or move scheduler to Temporal Schedules
Cross-system orchestration with retries and human steps Migrate (sweet spot)
Kafka-triggered, one execution per key Migrate (Day 3 pattern)
Pure data transformation Don't migrate. Spark / dbt territory
Long-running waits (hours, days, humans) Migrate. Airflow handles this poorly
Tight Airflow operator coupling Wrap in Activities; the operator is the unit
CoderMana

Migration order that works

  1. Pick one DAG that hurts in production.
  2. Map operators → Activities mechanically. Don't redesign.
  3. Run side by side for a release cycle.
  4. Cut over after the Temporal version is clean for two weeks.
  5. Redesign only after stable. Now use Signals, Updates, Schedules.

Don't migrate everything. Migrate where Temporal earns its keep.

CoderMana

Day 4 takeaways

  • Versioning is about preserving old histories, not just deploying new code.
  • Size Workers for resource profile, not business domain.
  • Replay tests are the single safety net for Workflow code changes.
  • Not everything is a Workflow. Migrate where Temporal earns its keep.
CoderMana
Day 5

Saga & Spring Boot

Real-world Workflow walkthrough, driven through a Spring Boot service.

CoderMana
Day 5

Order-processing saga

The canonical demo: payment → inventory → ship; compensate on failure.

CoderMana
Day 5 · on-ramp

Order-processing saga

  • Where this fits: Everything so far, assembled into the canonical real workflow: pay → reserve → ship.
  • Why it matters: Distributed transactions have no rollback; the saga is how you undo across services.
  • By the end: You'll read a saga's forward steps and compensations and watch one undo itself in history.
CoderMana

The Saga pattern: forward steps + undo

A saga is a sequence of steps. If a later step fails, you undo the earlier ones yourself, there's no distributed transaction to roll back for you:

  • After each forward Activity, register its compensation (the inverse Activity).
  • On failure, run the registered compensations, by default LIFO (reverse order).
  • The SDK's Saga helper just tracks the compensation stack; you write the undo Activities.

"Authorize → reserve → ship", with a matching "cancel → restore → notify" if anything throws.

Javadoc: Saga

CoderMana

The saga

public String process(String orderId) {
  Saga saga = new Saga(new Saga.Options.Builder().setParallelCompensation(false).build());
  try {
    String paymentId = activities.authorizePayment(orderId);
    saga.addCompensation(activities::cancelPayment, paymentId);

    String reservationId = activities.reserveInventory(orderId);
    saga.addCompensation(activities::restoreInventory, reservationId);

    activities.ship(orderId);
    return "COMPLETED";
  } catch (RuntimeException failure) {
    saga.compensate();   // LIFO
    activities.sendFailureNotification(orderId, failure.getMessage());
    return "COMPENSATED";
  }
}
CoderMana

Orchestration vs choreography

  • Orchestration - one central Workflow coordinates all steps & compensations. Single audit trail. Temporal's natural shape.
  • Choreography - each service reacts to events and emits its own. No central state.
  • Temporal supports both. A Workflow can be the orchestrator. Or it can be one service's durable participant inside a larger event choreography.

For cross-team flows from Airflow + Kafka, orchestration wins.

CoderMana

Choreography with Temporal

Event-choreographed system Temporal participant
Kafka topic carries facts: OrderPlaced, PaymentCaptured, ShipmentFailed Workflow owns one business key: order-123
Services publish events after local commits Bridge delivers events with signalWithStart
No one process owns the whole company flow This team still gets durable state, retries, timers, and audit

Choreography outside; orchestration inside the Workflow boundary.

CoderMana

Choreography example

Order service owns the order lifecycle, but reacts to events from other teams.

Runnable demo: examples/runnable/13-choreography.

@KafkaListener(topics = "order-domain-events")
void onEvent(DomainEvent event) {
  OrderProcessWorkflow workflow = client.newWorkflowStub(
      OrderProcessWorkflow.class,
      WorkflowOptions.newBuilder()
          .setWorkflowId("order-" + event.orderId())
          .setTaskQueue("orders")
          .build());

  BatchRequest batch = client.newSignalWithStartRequest();
  batch.add(workflow::run, event.orderId());
  batch.add(workflow::onEvent, event);
  client.signalWithStart(batch);
}

The bridge is thin. The Workflow decides what the event means for this order.

CoderMana

When to choose which

Choose orchestration when... Choose choreography when...
One team owns the end-to-end business outcome Several teams must evolve independently
You need one place for compensations and timeouts Events are the stable contract between domains
Operators need one execution history to debug Consumers should be added without changing a central flow
The flow is user-facing or SLA-bound The flow is naturally eventually consistent

Most real systems mix them: events between domains, Workflows inside domains.

CoderMana

Compensation rules

  1. Register compensation immediately after the forward step succeeds.
  2. Compensations are business logic, not generic undo.
  3. Compensations get their own retry policy. Test the failing case.
  4. Idempotency on forward AND compensation steps.
CoderMana
Lab · Day 5

Run the saga

Challenge → day-05-saga-spring/lab-1-order-saga-walkthrough

make run-saga

Start the happy path:

temporal workflow start --task-queue orders \
  --type OrderSagaWorkflow --workflow-id order-OK \
  --input '"order-1001"'
CoderMana

Run the saga: force a failure

temporal workflow start --task-queue orders \
  --type OrderSagaWorkflow --workflow-id order-fail \
  --input '"fail-at-ship"'

In the Web UI, watch the compensations fire in reverse order.

CoderMana

Compensation in the history

Event History for the failed saga (Completed, Result "COMPENSATED"): after Ship fails, the compensating Activities RestoreInventory, CancelPayment and SendFailureNotification are scheduled and completed, undoing the earlier ReserveInventory and AuthorizePayment

The forward path ran, Ship failed, and the Saga unwound it:

  • Forward: AuthorizePayment → ReserveInventory → Ship ✗.
  • Compensations, in reverse: RestoreInventory (undo Reserve), CancelPayment (undo Authorize), SendFailureNotification: each its own Activity in the history.
CoderMana

Compensation in the history (continued)

Event History for the failed saga (Completed, Result "COMPENSATED"): after Ship fails, the compensating Activities RestoreInventory, CancelPayment and SendFailureNotification are scheduled and completed, undoing the earlier ReserveInventory and AuthorizePayment

  • The Workflow ends Completed, Result COMPENSATED: a handled outcome, not a crash.

Temporal rolls nothing back for you. Compensation is just more Activities you orchestrate: the Saga pattern + your code own the "undo."

CoderMana
Day 5

Spring Boot + Temporal

How Temporal lives inside a Spring app.

CoderMana
Day 5 · on-ramp

Spring Boot + Temporal

  • Where this fits: Before the saga: how Temporal plugs into a Spring Boot app at all.
  • Why it matters: Temporal is a client + Worker you wire into Spring's lifecycle, not a framework you hand control to.
  • By the end: You'll run a basic Temporal Spring Boot app and start a Workflow from a REST endpoint.
CoderMana

Temporal in Spring Boot: the shape

Temporal isn't a framework you hand control to. It's a client + Worker you wire into Spring's lifecycle:

  • Expose WorkflowServiceStubs → WorkflowClient → WorkerFactory as @Beans. Then bind the factory's start / shutdown to the app context.
  • Activities are Spring beans: inject DataSources, HTTP clients, repositories as usual.
  • Drive Workflows from a @RestController (start / signal / query); the Worker just polls in the background.

In production use the temporal-spring-boot-starter; the next slide is the manual wiring it automates.

CoderMana

Manual Spring config

@Configuration
class TemporalConfig {
  @Bean WorkflowServiceStubs workflowServiceStubs() {
    return WorkflowServiceStubs.newLocalServiceStubs(); }
  @Bean WorkflowClient workflowClient(WorkflowServiceStubs s) {
    return WorkflowClient.newInstance(s); }
  @Bean(initMethod = "start", destroyMethod = "shutdown")
  WorkerFactory workerFactory(WorkflowClient c, OrderActivities a) {
    WorkerFactory f = WorkerFactory.newInstance(c);
    Worker w = f.newWorker("orders");
    w.registerWorkflowImplementationTypes(OrderSagaWorkflowImpl.class);
    w.registerActivitiesImplementations(a);
    return f;
  }
}

Javadoc: WorkflowServiceStubs · WorkflowClient · WorkerFactory

CoderMana

The starter does all of that: config, not beans

temporal-spring-boot-starter: delete the @Configuration, describe it in application.yml.

spring.temporal:
  connection: { target: 127.0.0.1:7233 }
  namespace: default
  workers-auto-discovery: { packages: [com.example.orders] }

@WorkflowImpl(taskQueues = "orders")          // auto-registered Workflow
class OrderSagaWorkflowImpl implements OrderSagaWorkflow { ... }

@Component @ActivityImpl(taskQueues = "orders") // Activity = Spring bean (DI works)
class OrderActivitiesImpl implements OrderActivities { ... }

@RestController class Orders {
  Orders(WorkflowClient client) { ... }         // client bean injected for you
}

The starter builds the client, scans for @WorkflowImpl/@ActivityImpl, starts a Worker per task queue, and binds start/graceful-shutdown to Spring. What you'd ship.

CoderMana
Lab · Day 5 · optional

Spring Boot starter

examples/runnable/16-spring-boot · Java only · make run-spring (serves :8080)

curl -s -X POST localhost:8080/greetings \
  -H 'content-type: application/json' -d '{"name":"Ada"}'
# {"message":"Hello, Ada! (from a Temporal Activity that is a Spring bean)"}

curl -s localhost:8080/greetings/Ada      # Query the Workflow's status
# {"message":"DONE"}

Optional, self-contained: one Spring process is both the client and the Worker — no @Configuration, no registerWorkflowImplementationTypes. Day 6 picks this up: the same starter orchestrates an AWS Glue job end-to-end (examples/runnable/17-spring-glue-pipeline).

CoderMana
Day 5

Saga in Spring Boot

Driving the saga, sync over HTTP, async over Kafka.

CoderMana
Day 5 · on-ramp

Saga in Spring Boot

  • Where this fits: You've wired Temporal into Spring; now drive the order saga through it.
  • Why it matters: Same Workflow, two front doors: a synchronous HTTP Update and an async Kafka Signal.
  • By the end: You'll start and resolve the saga over HTTP, and trigger it from a @KafkaListener.
CoderMana

Driving the saga synchronously (HTTP)

A @RestController POST that needs the result uses an Update-with-start:

  • startUpdateWithStart creates the saga Workflow (if absent) and submits the order in one call.
  • The handler blocks on getResult() and returns the outcome, one round trip; the caller gets the answer.

Synchronous request/response over a durable Workflow, the client never knows it isn't a plain service call.

CoderMana

Sync interaction (Update)

WithStartWorkflowOperation<String> start =
    WithStartWorkflowOperation.newBuilder(workflow::process)
        .setArguments(request.orderId()).build();

WorkflowUpdateHandle<String> update = client.startUpdateWithStart(
    start, "submit", WorkflowUpdateStage.COMPLETED, String.class, request);

return update.getResult();

POST endpoint blocks until the workflow returns. One round trip.

CoderMana

Driving the saga from Kafka (async)

A @KafkaListener that just needs to kick off work uses signal-with-start:

  • signalWithStart starts the saga for order-<id> if absent, then delivers the event, idempotent per key.
  • No blocking, no result, fire the event, commit the offset.

Same Workflow, two front doors: a synchronous HTTP Update, and an async Kafka Signal.

CoderMana

Async interaction (Signal)

@KafkaListener(topics = "orders")
void onOrder(OrderRequest request) {
  OrderSagaWorkflow workflow = client.newWorkflowStub(
      OrderSagaWorkflow.class,
      WorkflowOptions.newBuilder()
          .setWorkflowId("order-" + request.orderId())
          .setTaskQueue("orders").build());

  BatchRequest batch = client.newSignalWithStartRequest();
  batch.add(workflow::process, request.orderId());
  batch.add(workflow::onUpdate, request);
  client.signalWithStart(batch);
}
CoderMana
Lab · Day 5

Saga in Spring Boot

Challenge → day-05-saga-spring/lab-2-saga-spring-boot

Wire the saga into a Spring Boot app:

  1. Register the Worker as a @Component with WorkerFactory lifecycle bound to the app context.
  2. Drive the Workflow from a @RestController: start, signal, query.
  3. Inject Activity dependencies (DB, HTTP clients) as Spring beans.

Goal: the saga runs inside Spring Boot, started from an HTTP endpoint.

CoderMana

Continue-as-new: why

History grows with every event. A Workflow that loops forever, a subscription, a counter, an actor, would grow its history without bound. That means slower replay and, eventually, hard limits.

  • Continue-as-new atomically ends the current run and starts a fresh one: same Workflow ID, clean history.
  • You hand forward only the state the next run needs: a checkpoint, not a memory dump.
  • To callers it's still one Workflow ID; underneath it's a chain of Runs.

Reach for it on unbounded loops and periodic/cron-style Workflows.

CoderMana

Continue-as-new

@Override
public void run(String subscriptionId, int eventCount) {
  while (true) {
    Workflow.await(this::hasNextEvent);
    handleNextEvent();
    eventCount++;
    if (eventCount >= 1000) {
      Workflow.continueAsNew(subscriptionId, 0);
    }
  }
}

Continue-as-new is a checkpoint, not a memory dump. Carry only what's needed.

CoderMana

Continue-as-new in the UI: the Run chain

Relationships tab for continue-as-new-demo: a First Execution link and a Previous Execution link joined to the current run, one Workflow ID spanning multiple Runs chained by continue-as-new, each with its own small history

The Relationships tab exposes the chain continue-as-new builds:

  • First Execution / Previous Execution links, hop backwards through the Runs.
  • Same Workflow ID throughout; each Run has its own Run ID and history.
  • The current Run started fresh, its history is small, not the sum of every iteration.

One business identity, many physical Runs, exactly the Workflow ID vs Run ID distinction from Day 1.

CoderMana

Day 5 takeaways

  • Compensation is business logic, not generic undo. Design it on purpose.
  • Sync Updates via startUpdateWithStart for sync APIs.
  • Async Signals via signalWithStart for event-driven triggers.
  • Continue-as-new is a checkpoint, not a memory dump.
CoderMana
Day 6

AWS migration & container workloads

Replacing Glue + Lambda + Step Functions. Running Workers in Kubernetes.

CoderMana
Day 6

The AWS orchestration problem

Hidden complexity in Lambda + Glue + Step Functions.

CoderMana
Day 6 · on-ramp

The AWS orchestration problem

  • Where this fits: The morning's premise: where Lambda + Glue + Step Functions hide their complexity.
  • Why it matters: Naming the pain points tells you exactly what Temporal is replacing, and why.
  • By the end: You'll map each AWS piece to the state and recovery burden it leaves you.
CoderMana

State scatters

  • EventBridge rule fires.
  • Lambda validates, transforms, sometimes orchestrates.
  • Step Functions declares state transitions in JSON.
  • Glue runs Spark / Python shell, writes results to S3.
  • S3 is the handoff medium.

Every handoff = a chance for state to disagree. Recovery is a runbook.

CoderMana

AWS → Temporal map

AWS shape Temporal shape
EventBridge → Lambda → Step Functions Consumer (or thin Lambda) signalWithStarts a Workflow
Step Functions JSON states Workflow branches through Java code
Glue Python writes S3 checkpoints Activity returns result; history records the run
Glue Spark heavy transform Activity starts Glue, heartbeats runId while polling
CloudWatch Lambda retry RetryOptions with typed ApplicationFailure
S3 handoff between Lambdas Activity returns S3 URI
DynamoDB checkpoint table Workflow event history
CoderMana

When to keep AWS compute

Service Keep when Replace when
Lambda <100ms, IAM-bound, one-shot Multi-step coordination, retries, long waits
Glue Spark Large distributed transforms (>10 GB) Pure data movement; small batches
Glue Python Tiny scripts (<1 min) with Glue catalog Anything you'd write as a Java Activity
Step Functions Already wired, low-change Anything needing human steps or code review

Temporal supervises; AWS executes the heavy lift.

CoderMana
Day 6

Glue Spark as an Activity

The canonical supervise-AWS-compute pattern.

CoderMana
Day 6 · on-ramp

Glue Spark as an Activity

  • Where this fits: The core AWS pattern: supervise long external compute from a Workflow.
  • Why it matters: It's the template for wrapping any slow, out-of-process job, Glue, EMR, a batch API.
  • By the end: You'll launch and supervise a Glue job as an Activity, heartbeating its progress.
CoderMana

Supervising external compute: the pattern

You can't make a 30-minute Glue / EMR / Batch job itself durable. So wrap it in an Activity that supervises the job:

  1. Start the external job, get back a job-run ID.
  2. Poll its status in a loop, heartbeating the run ID each time.
  3. Succeed / fail the Activity when the job finishes.
  • The heartbeat means a Worker restart re-attaches to the same run and resumes polling, it doesn't relaunch the job.
  • The Workflow stays oblivious, it just sees "a long Activity."

Temporal owns the orchestration & durability; AWS still owns the compute.

CoderMana

Glue activity

@Override
public String runGlueJob(String jobName, String inputS3Uri) {
  String runId = glue.startJobRun(
      StartJobRunRequest.builder()
          .jobName(jobName)
          .arguments(Map.of("--input", inputS3Uri))
          .build()).jobRunId();

  while (true) {
    Activity.getExecutionContext().heartbeat(runId);
    JobRun jobRun = glue.getJobRun(
        GetJobRunRequest.builder().jobName(jobName).runId(runId).build()).jobRun();
    if (jobRun.jobRunState() == JobRunState.SUCCEEDED) return runId;
    if (Set.of(FAILED, TIMEOUT, STOPPED).contains(jobRun.jobRunState()))
      throw ApplicationFailure.newFailure(jobRun.errorMessage(), "GlueJobFailed");
    Thread.sleep(Duration.ofSeconds(15).toMillis());   // back off
  }
}
CoderMana
Day 6

Resuming from a failed step

A single Glue job is opaque, Temporal can't resume a Spark script at line 200. The resume boundary is the Activity: model each resumable step as its own Activity, and history skips the ones already done.

Resume what? Mechanism Owns the checkpoint
A failed step in a multi-job pipeline History replays completed Activities, doesn't re-run them Temporal
Polling one run after a Worker crash Heartbeat runId + getHeartbeatDetails re-attach Temporal
A point inside one Spark job Glue Job Bookmarks, or split the job into steps Glue

"Resume where it failed" lives at the Activity boundary, make each resumable step its own Activity.

CoderMana

Steps = Activities; history resumes the rest

@Override
public void run(TransformRequest req) {
  String raw     = glue.runGlueJob("extract",   req.inputS3Uri());  // ✓ recorded
  String curated = glue.runGlueJob("transform", raw);               // ✓ recorded
  glue.runGlueJob("load", curated);                                 // ✗ fails here
}
  • On a Worker crash or replay, history shows extract and transform already SUCCEEDED, so they aren't re-run, execution resumes at load.
  • No checkpoint table, no S3 spelunking, no manual restart, the history is the checkpoint.

Coarser than an Activity and you're back to Glue Job Bookmarks doing the bookkeeping.

CoderMana
Lab · Day 6

Glue Activity (LocalStack)

Challenge → day-06-aws-containers/lab-1-glue-activity

make stack-aws        # LocalStack on :4566
make aws-init         # create S3 buckets
make run-aws          # Import Worker

# in another terminal
awslocal s3 cp /tmp/test.csv s3://imports-incoming/test.csv
scripts/start-workflow.sh transform 1 ImportWorkflow "s3://imports-incoming/test.csv"

Watch the heartbeats in the Web UI as the polling loop runs.

CoderMana

Big data? Pass a reference, not the bytes

Every payload, Workflow args, results, Signals, is stored in history. History has a hard 2 MB cap, and the SDK warns around 256 KB.

  • Keep the bytes in S3 (or any blob store); pass only a URI + metadata through the Workflow.
  • The Activity reads/writes the object; history stays tiny and replay stays fast.

History is a control plane, not a data bus, move references, not megabytes.

CoderMana

S3 reference payloads

record TransformRequest(String inputS3Uri, String outputPrefix) {}
record TransformResult(String outputS3Uri, long rowCount) {}
  • Workflow history holds URIs + counts.
  • Activity owns the bytes.
  • Hard cap 2 MB per payload (SDK warns ~256 KB); large data via S3.

Workflow history is small. URIs travel cheap.

CoderMana

Encrypting payloads: the codec

By default, Workflow inputs, results, and Activity args are stored in history as plaintext. For sensitive data, encrypt at the SDK boundary:

  • A PayloadCodec encrypts on the way out and decrypts on the way in, the server only ever stores ciphertext.
  • A codec server lets the Web UI and CLI decrypt for authorized viewers. So history stays human-readable, but it's never exposed at rest.

End-to-end encryption, the Temporal server (and its operators) never see your plaintext.

CoderMana

Codec server - encrypt payloads

class EncryptionCodec implements PayloadCodec {
  public List<Payload> encode(List<Payload> p) { /* AES-GCM encrypt */ }
  public List<Payload> decode(List<Payload> p) { /* decrypt        */ }
}

DataConverter converter = new CodecDataConverter(
    DefaultDataConverter.newDefaultInstance(), List.of(new EncryptionCodec()));

WorkflowClient.newInstance(service,
    WorkflowClientOptions.newBuilder().setDataConverter(converter).build());

Server stores ciphertext only. A standalone codec server lets the Web UI decode on demand.

CoderMana
Lab · Day 6

Replace S3 checkpoints

Challenge → day-06-aws-containers/lab-2-s3-checkpointing

Take a hypothetical existing pipeline that writes a checkpoint S3 key after every step.

  1. Identify which checkpoints are resume points. Those become Workflow state.
  2. Identify which checkpoints are handoffs. Those become Activity return URIs.
  3. Sketch the Workflow signature. What's input? What's output?

No new code; redesign on paper. 15 minutes.

CoderMana

From state machine to code

Migrating an AWS Step Functions state machine? The mapping is direct. The payoff: you leave ASL/JSON behind.

  • States → plain code: choices become if, parallel states become Async, retriers become a RetryPolicy.
  • No 25,000-event / 1-year ceilings, no JSON DSL, it's just a Workflow function.
  • Activities wrap the same Lambdas / jobs you already invoke.

A state machine becomes ordinary control flow you can read, test, and debug.

CoderMana

Step Functions → Temporal

@Override
public void run(String inputS3Uri) {
  ValidatedFile file = activities.validate(inputS3Uri);
  String transformedUri = activities.transform(file.cleanInputUri());
  LoadResult loadResult = activities.load(transformedUri);
  activities.publishNotification(loadResult);
}

Compare to the equivalent ASL: ~30 lines of JSON state machine with Resource arns.

CoderMana
Lab · Day 6

Migrate a Step Functions pipeline

Challenge → day-06-aws-containers/lab-3-stepfunctions-migration

Take a four-state ASL state machine (validate → transform → load → notify):

  1. Map each Task state to an Activity; the state machine becomes Workflow code.
  2. Replace Retry / Catch blocks with Temporal RetryOptions + try/catch.
  3. Run it end-to-end against LocalStack.

Goal: the ASL JSON is gone; control flow lives in Workflow code.

CoderMana
Day 6

Events in, events out, config

SQS triggers a Workflow · SNS notifies the world · SSM holds the config.

CoderMana
Day 6 · on-ramp

Events in, events out, config

  • Where this fits: You've migrated the orchestration; now wire the edges: an inbound trigger, an outbound notification, and externalized config.
  • Why it matters: These are the seams where AWS at-least-once delivery meets Temporal at-least-once execution, idempotency is the whole game.
  • By the end: You'll trigger a Workflow from SQS, fan out a result via SNS, and boot a Worker from SSM Parameter Store.
CoderMana

SQS as the trigger

An EventBridge → Lambda → StartExecution chain collapses into a long-poll SQS consumer that signalWithStarts a Workflow. The consumer is plain glue. It lives outside any Workflow, so the determinism rules don't apply.

"Standard queues ensure at-least-once message delivery, but due to the highly distributed architecture, more than one copy of a message might be delivered, and messages may occasionally arrive out of order."

Amazon SQS Developer Guide · docs.aws.amazon.com

The duplicate is fine: signalWithStart is idempotent on the Workflow Id.

CoderMana

Why signalWithStart absorbs duplicates

"When you send this operation, if there is a running Workflow Execution with the given Workflow Id, it will be Signaled. Otherwise, a new Workflow Execution starts and is immediately sent the Signal."

Temporal Documentation · docs.temporal.io

  • Derive the Workflow Id from the event (e.g. import-<bucket>-<key>).
  • First delivery starts; any redelivery signals the same run. No duplicate Workflow.
  • Delete the SQS message only after the signal is durable in Temporal, at-least-once, never at-most-once.
CoderMana

SQS → signalWithStart bridge

for (Message m : resp.messages()) {
  FileEvent event = parse(m.body());
  ImportWorkflow stub = client.newWorkflowStub(ImportWorkflow.class,
      WorkflowOptions.newBuilder()
          .setWorkflowId("import-" + event.bucket() + "-" + event.key())  // idempotency key
          .setTaskQueue("transform").build());

  BatchRequest batch = client.newSignalWithStartRequest();
  batch.add(stub::run, event.s3Uri());
  client.signalWithStart(batch);          // start-or-signal: dedupes redeliveries

  sqs.deleteMessage(DeleteMessageRequest.builder()        // only AFTER it's durable
      .queueUrl(queueUrl).receiptHandle(m.receiptHandle()).build());
}

Long poll (waitTimeSeconds(20)), not a hot spin, fewer empty receives, lower cost.

CoderMana
Lab · Day 6

SQS event trigger

Challenge → day-06-aws-containers/lab-6-sqs-event-trigger

make stack-aws && make aws-init     # LocalStack + queue/topic/params
awslocal sqs send-message --queue-url \
  http://localhost:4566/000000000000/imports-events \
  --message-body '{"bucket":"imports-incoming","key":"orders.csv","s3Uri":"s3://imports-incoming/incoming/orders.csv"}'
# send the SAME message again: confirm NO second Workflow run

One Workflow starts; the redelivery just re-signals it. Idempotency, observed.

CoderMana

SNS to notify outward

The final notify step moves into Temporal as an Activity that publishes to SNS. Subscribers stay decoupled.

"The Fanout scenario is when a message published to an SNS topic is replicated and pushed to multiple endpoints, such as Firehose delivery streams, Amazon SQS queues, HTTP(S) endpoints, and Lambda functions."

Amazon SNS Developer Guide · docs.aws.amazon.com

  • Publishing is I/O → it's an Activity, never Workflow code.
  • Activities are at-least-once, so a retry may double-publish. To handle it, put workflowId+runId in the message and let subscribers dedup.
CoderMana

Idempotent by design: both sides

"Activities follow an at-least-once execution model." … "Because Activities may be retried due to failures, it's strongly recommended to make them idempotent."

Temporal Documentation · docs.temporal.io

Edge AWS guarantee Make it safe
SQS in at-least-once delivery Workflow Id from the event → signalWithStart dedupes
SNS out at-least-once publish carry workflowId+runId; subscribers dedup (or FIFO topic)

The pattern is the same on every edge: an idempotency key the receiver can dedup on.

CoderMana
Lab · Day 6

SNS fan-out notify

Challenge → day-06-aws-containers/lab-7-sns-fanout-notify

make stack-aws && make aws-init       # creates imports-complete topic + subscriber queue
# wire publishNotification as the last ImportWorkflow step, then:
awslocal sqs receive-message --queue-url \
  http://localhost:4566/000000000000/imports-complete-sub

The subscribed SQS queue receives the completion event, the publisher just moved into an Activity.

CoderMana
Day 6 · on-ramp

Spring Boot orchestrates Glue

  • Where this fits: The morning's pieces — Glue, S3, SQS in, SNS out — composed into one Spring Boot service.
  • Why it matters: This is the shape of a real ingestion pipeline: a producer lands data and rings a bell; you validate, stitch, and notify back.
  • By the end: You'll run the full loop end-to-end on the temporal-spring-boot-starter.
CoderMana

Spring Boot orchestrates Glue: the full loop

 A → S3 (Parquet) → SQS ─signalWithStart→ [ validate S3 → Glue → SNS ]
 SNS → SQS → A is told "VALIDATED"          (Spring Boot, one process)
  • The temporal-spring-boot-starter (Day 5) hosts the Worker; the AWS edges (S3, stitch job, SNS) are Activities.
  • Two front doors into one Workflow: the SQS bridge (event) and a REST endpoint (sync).

No AWS Glue (it's a paid-tier LocalStack emulator); the stitch is a self-hosted local job doing real S3 work, and the orchestration is real.

CoderMana

The Workflow: validate → stitch → notify

@WorkflowImpl(taskQueues = "glue-stitch")            // discovered by the Spring starter
public class GlueStitchWorkflowImpl implements GlueStitchWorkflow {
  public StitchResult stitch(StitchRequest req) {
    PartitionManifest m = io.validatePartition(req.bucket(), req.prefix()); // list S3, assert non-empty
    String curated      = glue.runGlueJob(req);        // start + poll Glue, heartbeating
    String msgId        = io.publishValidation(        // SNS publish → notify A
        new GlueNotification(Workflow.getInfo().getWorkflowId(), "VALIDATED", m.fileCount(), curated));
    return new StitchResult(m.fileCount(), m.totalBytes(), curated, msgId);
  }
}

The three edges (S3, Glue, SNS) are Activities; the sequence is durable Workflow code.

CoderMana

The trigger: SQS → signalWithStart (a Spring bean, not a Workflow)

@Component
class SqsTriggerBridge {                  // plain glue: own daemon thread, no determinism rules
  void handle(Message m) {
    StitchRequest req = json.readValue(m.body(), StitchRequest.class);
    var stub = client.newWorkflowStub(GlueStitchWorkflow.class,
        WorkflowOptions.newBuilder()
            .setWorkflowId("stitch-" + slug(req.bucket() + "-" + req.prefix()))  // idempotency key
            .setTaskQueue("glue-stitch").build());
    BatchRequest batch = client.newSignalWithStartRequest();
    batch.add(stub::stitch, req);                      // start the run if absent
    batch.add(stub::triggerReceived, m.messageId());   // signal the in-flight run
    client.signalWithStart(batch);
    sqs.deleteMessage(/* ... */);                      // delete only AFTER the signal is durable
  }
}

A redelivery while the stitch is in flight re-signals the one run — no duplicate.

CoderMana
Lab · Day 6

Spring Boot → Glue, end to end

Runnable → examples/runnable/17-spring-glue-pipeline

make temporal                 # :7233
make stack-aws                # LocalStack :4566
make seed-glue                # bucket + SQS bus + SNS topic + A's inbox + a Parquet partition
make run-spring-glue          # the Spring Boot service on :8080

# in another terminal — A drops an event on the bus, then read A's inbox:
scripts/seed-glue-demo.sh trigger
scripts/seed-glue-demo.sh notify     # the VALIDATED SNS notification arrives

Burst the trigger 3× while it runs: triggerCount climbs, but the UI shows one execution.

CoderMana

SSM Parameter Store for config & secrets

Stop baking config into the image or passing secrets as plaintext env. Read them from SSM Parameter Store at Worker startup.

"SecureString parameters encrypt values using AWS Key Management Service, making them a practical choice for lightweight encrypted configuration values…"

AWS Systems Manager User Guide · docs.aws.amazon.com

  • Config loads in process-startup code, not Workflow code (reading SSM in a Workflow is non-deterministic).
  • If a step needs a value at runtime, read it inside an Activity: for example, a fetchApiKey Activity that decrypts a SecureString.
CoderMana

Boot the Worker from SSM

// Startup code (NOT a Workflow): read the config tree, then build the stubs.
WorkerConfig cfg = loadConfig(ssm, "/temporal-training/worker/");  // getParametersByPath

WorkflowServiceStubs service = WorkflowServiceStubs.newServiceStubs(
    WorkflowServiceStubsOptions.newBuilder().setTarget(cfg.temporalAddress()).build());
WorkflowClient client = WorkflowClient.newInstance(
    service, WorkflowClientOptions.newBuilder().setNamespace(cfg.namespace()).build());

// A step needing the key calls fetchApiKey(), read inside the Activity, never in Workflow code.

setTarget / setNamespace build the real stubs from config, not hard-coded, not newLocalServiceStubs().

CoderMana
Lab · Day 6

Config & secrets from SSM

Challenge → day-06-aws-containers/lab-8-ssm-parameter-store

make stack-aws && make aws-init       # seeds /temporal-training/worker/* (+ a SecureString)
awslocal ssm get-parameters-by-path \
  --path /temporal-training/worker/ --with-decryption
# build the Worker from this tree at startup; read the api-key inside an Activity

Boot the Worker from Parameter Store; the SecureString is decrypted via KMS, never logged.

CoderMana
Day 6

Workers as containers

No HTTP server. Process-level probes. Graceful shutdown.

CoderMana
Day 6 · on-ramp

Workers as containers

  • Where this fits: The afternoon: running Workers the way the rest of your services run, as containers.
  • Why it matters: A Worker has no HTTP port, so health checks and shutdown work differently than your web apps.
  • By the end: You'll containerize a Worker, set the right probes, and autoscale it on queue backlog.
CoderMana

Mental model

  • A Worker is a long-lived process polling Task Queues outbound.
  • No inbound traffic. No Service, no Ingress.
  • Health = "is the process polling?" Use a pgrep exec probe, or an HTTP /health endpoint (Actuator or HttpServer) that returns 200 only after WorkerFactory.start().
  • Graceful shutdown = drain in-flight Activities; SIGTERM, then heartbeat-cancel.
CoderMana

Dockerfile

FROM maven:3.9-eclipse-temurin-17 AS build
WORKDIR /src
COPY pom.xml .
COPY src ./src
RUN mvn -q -DskipTests package

FROM eclipse-temurin:17-jre
WORKDIR /app
COPY --from=build /src/target/worker.jar /app/worker.jar
ENV JAVA_TOOL_OPTIONS="-XX:+UseContainerSupport -XX:MaxRAMPercentage=75"
ENTRYPOINT ["java", "-jar", "/app/worker.jar"]
CoderMana
Lab · Day 6

Docker build

Challenge → day-06-aws-containers/lab-4-worker-container

cd examples/runnable/08-aws-containers
docker build -t temporal-transform-worker:dev ./java   # or ./python, ./go

docker run --rm \
  -e TEMPORAL_ADDRESS=host.docker.internal:7233 \
  temporal-transform-worker:dev

Confirm the Worker connects to the host's Temporal and starts polling.

CoderMana

Workers are just Deployments

A Temporal Worker is a stateless process that polls: so it's an ordinary Kubernetes Deployment:

  • No ingress, no Service, no ports: Workers dial out to Temporal; nothing connects in.
  • Scale with replicas: each pod is an identical Worker on the same Task Queue.
  • Liveness = "is the process polling?" (next: KEDA scales the replicas on backlog).

Nothing special to deploy: containerise the Worker and run N replicas.

CoderMana

Kubernetes Deployment

spec:
  replicas: 2
  strategy:
    rollingUpdate:
      maxUnavailable: 0
      maxSurge: 1
  template:
    spec:
      terminationGracePeriodSeconds: 120   # >= longest Activity timeout
      containers:
        - name: worker
          image: <ecr>/temporal-transform-worker:latest
          readinessProbe:
            exec: { command: ["sh", "-c", "pgrep -f worker.jar > /dev/null"] }
          livenessProbe:
            exec: { command: ["sh", "-c", "pgrep -f worker.jar > /dev/null"] }

terminationGracePeriodSeconds ≥ longest startToCloseTimeout.

CoderMana
Lab · Day 6

K8s deploy on kind

Challenge → day-06-aws-containers/lab-5-kubernetes-keda

make kind-up          # cluster + KEDA
make kind-load        # build + load Worker image
kubectl apply -f examples/runnable/08-aws-containers/k8s-worker-deployment.yaml
kubectl rollout status deployment/temporal-transform-worker
kubectl logs -l app=temporal-transform-worker --tail=20

Confirm the Worker polls the cluster's Temporal address.

CoderMana

Autoscaling on Task Queue backlog

CPU is the wrong scaling signal for a Worker. The right signal is how much work is waiting:

  • KEDA scales the Worker Deployment on a Temporal metric: the Task Queue's backlog / schedule-to-start lag.
  • Backlog grows → add Worker pods; the queue drains → scale back down (even to zero).

Scale to queue depth, not CPU, the metric that actually means "we're falling behind."

CoderMana

KEDA temporal scaler

kind: ScaledObject
spec:
  scaleTargetRef: { name: temporal-transform-worker }
  minReplicaCount: 1
  maxReplicaCount: 10
  triggers:
    - type: temporal
      metadata:
        endpoint: temporal-frontend.temporal.svc.cluster.local:7233
        namespace: production
        taskQueue: transform
        queueType: ActivityTaskQueue
        targetQueueSize: "20"

Native scaler polls DescribeTaskQueue. No Prometheus exporter needed.

CoderMana
Lab · Day 6

KEDA autoscale

Challenge → day-06-aws-containers/lab-5-kubernetes-keda

kubectl apply -f examples/runnable/08-aws-containers/keda-scaledobject.yaml
make load-transform N=200
kubectl get scaledobject,pods -l app=temporal-transform-worker -w

Watch replica count climb from 1 → ~5 as backlog grows.

CoderMana

KEDA autoscaling, live

300 workflow tasks backlogged on transform, nothing draining → KEDA scales the Deployment to max:

$ kubectl get scaledobject,hpa,deploy
ScaledObject  temporal-transform-worker   TRIGGER=temporal  READY=True  ACTIVE=True
HPA           keda-hpa-…transform-worker   TARGETS=30/20 (avg)          REPLICAS=10
Deployment    transform-worker            READY=10/10   AVAILABLE=10

Real run on kind: an in-cluster Temporal + KEDA; replicas went 1 → 10 within one poll.

CoderMana

What you're seeing

KEDA scaled transform-worker from 1 → 10 off the Temporal task-queue backlog:

  • KEDA's Temporal scaler polls DescribeTaskQueue: no Prometheus exporter needed for this one.
  • Backlog ÷ targetQueueSize (20) drives the HPA: 300 / 20 = 15 → capped at maxReplicaCount 10.
  • Drain the backlog and it scales back to minReplicaCount: which can be 0 (scale-to-zero).
  • CPU/memory would never catch this, Workers are I/O-bound; queue depth is the real demand signal.
CoderMana

Temporal Cloud vs EKS self-hosted

Concern Temporal Cloud EKS self-hosted
Setup time Hours Weeks
Persistence Managed (Cassandra) You run PostgreSQL / Cassandra
Upgrades Automatic You schedule
Multi-region Built-in (premium) You design replication
Cost shape Per-action Fixed infra
Audit / compliance SOC2, HIPAA tiers You provide evidence

Use Cloud unless you have a specific reason not to.

CoderMana
Day 6 · optional

Running it on real AWS

ECS · EKS · Aurora · Route 53, the production shapes (real account required).

CoderMana
Day 6 · on-ramp

Running it on real AWS

  • Where this fits: The same Worker you containerized, now on the AWS primitives a real deployment uses.
  • Why it matters: The Worker barely changes; what changes is identity (IRSA/task roles), scaling (CloudWatch vs KEDA), and state (Aurora, Route 53).
  • By the end: You'll read the manifests for ECS autoscaling, EKS+IRSA, an idempotent Aurora sink, and Route 53 failover, and know the traps.
CoderMana

ECS Fargate: autoscale without KEDA

ECS has no native Temporal scaler. So you assemble what KEDA bundles: publish Task Queue backlog as a custom CloudWatch metric, then target-track it.

"Amazon ECS leverages the Application Auto Scaling service to provide this functionality." … target tracking: "Increase or decrease the number of tasks that your service runs based on a target value for a specific metric."

Amazon ECS Developer Guide · docs.aws.amazon.com

CoderMana

ECS Fargate: wiring the backlog scaler

  • A tiny backlog publisher calls DescribeTaskQueue → PutMetricData (Temporal/Worker / TaskQueueBacklog).
  • Application Auto Scaling target-tracks it, the CloudWatch analog of KEDA's targetQueueSize.
  • The Service has no load balancer: Workers are outbound-only (same as the Deployment).
CoderMana
Lab · Day 6 · optional

ECS Fargate autoscaling

Challenge → day-06-aws-containers/lab-9-ecs-fargate-autoscaling

Optional · real AWS account required. No make targets, walk the manifests under examples/07-aws-containers/aws/, apply only with an account, and tear down after (Fargate + CloudWatch cost real money).

  • ecs_task_definition.json: secrets from SSM, stopTimeout: 120 (graceful drain).
  • ecs_autoscaling.json: target-track the backlog metric, min 1 / max 10.
CoderMana

Glue Activities in containers

  • Worker pod runs Glue-orchestration Activities.
  • IRSA, not access keys: eks.amazonaws.com/role-arn on the ServiceAccount.
  • Outbound to Temporal frontend (Cloud or self-hosted ELB).
  • Outbound to AWS APIs via VPC endpoints.

No bundled access keys. IRSA + VPC endpoints is the production shape.

CoderMana

EKS: the kind lab, for real

The Deployment and the same KEDA ScaledObject run unchanged on EKS. The only real additions: a real cluster, and IRSA instead of LocalStack's dummy keys.

"Instead of creating and distributing your AWS credentials to the containers or using the Amazon EC2 instance's role, you associate an IAM role with a Kubernetes service account and configure your Pods to use the service account."

Amazon EKS User Guide · docs.aws.amazon.com

  • Annotate the Worker's ServiceAccount with eks.amazonaws.com/role-arn → Activities call S3/Glue/SNS/SSM with no static keys.
  • Backlog grows → KEDA adds pods → Cluster Autoscaler / Karpenter adds nodes.
CoderMana
Lab · Day 6 · optional

EKS + IRSA

Challenge → day-06-aws-containers/lab-10-eks-irsa-deployment

Optional · real AWS account required. The kind cluster from Lab 6.5 is the local stand-in; this is the production graduation. eksctl delete cluster when done.

# proof there are no static keys: run from inside the pod:
$ aws sts get-caller-identity
Arn: arn:aws:sts::<acct>:assumed-role/temporal-worker-irsa/...

Same manifests as kind, only serviceAccountName + the ECR image change.

CoderMana

Aurora: effectively-once over at-least-once

The load step persists to Aurora (Postgres-compatible). Activities are at-least-once, so a retried load must not double-insert.

"Amazon Aurora (Aurora) is a fully managed relational database engine that's compatible with MySQL and PostgreSQL."

Amazon Aurora User Guide · docs.aws.amazon.com

CoderMana

Aurora: making the write idempotent

  • Make the write idempotent: INSERT … ON CONFLICT (idempotency_key) DO NOTHING, one transaction per batch.
  • The key must be stable across attempts: derive it from workflowId, never wall-clock/random.
  • Bounded connection pool (HikariCP) sized to Activity concurrency; creds via SSM / IAM DB auth, the relational sibling of the DynamoDB conditional-write.
CoderMana
Lab · Day 6 · optional

Aurora transactional sink

Challenge → day-06-aws-containers/lab-11-aurora-transactional-sink

Optional · real AWS account required for Aurora, but the idempotency logic is drillable against any local Postgres, which is the real lesson.

INSERT INTO loaded_rows (idempotency_key, ...)
VALUES (:wf_id || ':' || :batch, ...)
ON CONFLICT (idempotency_key) DO NOTHING;   -- a forced retry inserts zero rows

Kill the Worker mid-load; the row count is identical after retry.

CoderMana

Route 53: reachability ≠ replication

For a self-hosted frontend, Route 53 gives Workers a stable DNS name and health-checked failover. (On Temporal Cloud you get a managed global endpoint, skip this.)

"Failover routing lets you route traffic to a resource when the resource is healthy or to a different resource when the first resource is unhealthy."

Amazon Route 53 Developer Guide · docs.aws.amazon.com

  • The trap: DNS failover makes a frontend reachable, it does not replicate Workflow state. Cross-region durability needs Temporal multi-cluster replication, not DNS.
  • Long-lived gRPC connections don't re-resolve per call, failover helps reconnects, so set sane TTLs.
CoderMana
Lab · Day 6 · optional

Route 53 failover endpoint

Challenge → day-06-aws-containers/lab-12-route53-failover

Optional · real AWS account required (hosted zone + health checks). For self-hosters only.

  • PRIMARY/SECONDARY alias records → regional frontend NLBs, gated by health checks.
  • TEMPORAL_ADDRESS points at the stable name, never a raw LB hostname.

Remember: this is frontend reachability, not data durability.

CoderMana

Day 6 takeaways

  • Temporal replaces orchestration state, not all compute. Keep Glue Spark; replace Step Functions JSON.
  • Every AWS edge is at-least-once: SQS in, SNS out. An idempotency key the receiver dedups on reconciles it with Temporal's at-least-once Activities (signalWithStart, ON CONFLICT).
  • Externalize config/secrets to SSM; read bootstrap at startup, per-run secrets in an Activity.
CoderMana

Day 6 takeaways (continued)

  • Workers have no inbound traffic. Use exec probes or add Actuator deliberately.
  • Scale on queue backlog: KEDA's native scaler on EKS; a published CloudWatch metric on ECS. Identity via IRSA / task roles, never static keys.
  • Route 53 failover is frontend reachability, not data replication: cross-region DR needs Temporal multi-cluster replication.
  • Cloud is the default for new deployments. Self-host only with a clear reason.
CoderMana

Capstone

Redesign a Kafka-triggered Airflow DAG as a Temporal Saga.

CoderMana
Capstone · on-ramp

Capstone

  • Where this fits: You build: take a Kafka-triggered Airflow DAG and redesign it as a Temporal saga.
  • Why it matters: It's the rehearsal for the migration you'll do back at work.
  • By the end: You'll have a working saga you designed, against a clear acceptance bar.
CoderMana

The task

A customer signup flow. Kafka event customer-signup arrives with {userId, email, plan}. The DAG runs four tasks: create user, charge first month, provision tenant, send welcome email. Failure handling today is ad hoc.

Redesign it as a Saga. Demonstrate one compensation path.

CoderMana

Deliverable plan (75 min)

Time Deliverable
0-10 Sketch Workflow signature + Activity interface + compensation order on paper
10-50 Implement enough Java to run the happy path + one failure path
50-65 Wire the Kafka trigger with signalWithStart
65-75 Run end-to-end against the local stack; demo one compensation
CoderMana

Acceptance criteria

  1. At least three forward steps.
  2. Compensation registered immediately after each step.
  3. @KafkaListener triggering via signalWithStart.
  4. One demonstrated failure → compensation visible in the Web UI history.
CoderMana
Lab · Capstone

Capstone

Challenge → day-05-saga-spring/lab-3-capstone

make stack-kafka
make temporal
# Use 07-saga or scaffold your own

Go. 75 minutes. Walk the room every 15. Unstick people on Spring config -
the lesson is in the saga shape, not the wiring.

CoderMana

Capstone review (25 min)

Two or three volunteer pairs share screen. The room critiques. Cover:

  • How did they decide what was a Workflow vs an Activity?
  • Where did they put idempotency keys?
  • Orchestration or choreography? Why?
  • What would they change for a 30-day saga?
CoderMana

Q&A + open migration planning (20 min)

Anchor questions if the room is quiet:

  • Pick one Airflow DAG. What's the first thing that would break in Temporal?
  • What's your team's hardest distributed-transaction failure? Would a Saga have caught it?
  • Where does "I think it ran but I'm not sure" happen in your stack? That's a Workflow.
CoderMana
Course close

What you have now

A complete Temporal mental model and the patterns to ship with.

CoderMana

Where to go next

  • Take the capstone back to your team. Ship it side-by-side with the existing implementation.
  • Stand up the observability stack in your real env. Get the metrics flowing first.
  • Start the replay corpus. One captured history per non-trivial Workflow.
  • Pick one Airflow DAG to migrate using the framework.
CoderMana

The four habits

  1. When you'd write a runbook, write a Workflow instead.
  2. Workflow code is deterministic; all I/O lives in Activities.
  3. signalWithStart / startUpdateWithStart are the bridge primitives.
  4. Capture histories; replay them in CI.
CoderMana

Your hardest distributed-transaction bug today is a feature Temporal already solved.

The cost is learning a new model. The reward is fewer runbooks.

CoderMana

Resources

CoderMana

6 days × 4 hours. Each day mirrors a day in lecture_notes/Day-XX.md. Lab slides are marked - laptops out, fingers on keyboards. Pace check: end of Day 1 should leave the room with one Workflow running.

Quick orientation slide. Don't dwell - each Day cover slide opens the detailed agenda for that block.

4 hours. Morning interleaves concepts with the first hands-on labs; afternoon goes deeper on the event history. Get everyone's environment green before teaching anything else.

Wait until every laptop is green. Pair the stragglers. Don't proceed without this; the rest of the day depends on it.

Open in VSCode: examples/01-foundations/java/airflow_dag_vs_temporal_workflow.java + .py - DAG shape vs durable code, side by side.

Read in different voices. Each shape will resonate with someone in the room.

The slogan to repeat across the day: runbook, not a button.

Don't bash any tool. Each solves a real problem. The point is the seam each leaves open, not that any is bad.

This is the paradigm shift, stated once, early. Everything on Day 1 builds on "durable function," not "graph of tasks." Airflow is schedule-first and polls; Temporal reacts to events with sub-second latency - that's why it fits user-facing flows Airflow can't serve.

Open in VSCode: examples/01-foundations/java/core_primitives.java - all four roles in one file. Run: make run-hello

Four cards, four primitives. Task Queue is JUST A STRING. Not Kafka. Not a DB. It's a routing key.

This is just a Java interface. The SDK uses the @WorkflowInterface annotation to identify it via reflection.

factory.start() kicks off the long-poll loop. Workers connect outbound.

The mental trap is "one Worker = one Workflow". It isn't. A Worker is a process that holds a registry. Whatever shows up on its Task Queue, if the type is registered, it runs it. Start here: the simplest topology is a single Worker that knows everything.

Why slice it instead of running l identical Workers? Different work has different needs: a GPU box registers only the inference Activity; a lightweight pool registers the orchestration Workflows. A Worker only pulls work it has registered. Mismatched Task Queue = task sits unhandled. This is a config bug people hit on day one.

This is the "so what" behind the l-Workers slide. A workflow task is microseconds of decision-making. An Activity might pin a core for a minute or block on a slow API. Put them on the same Worker and the slow ones eat all the slots. Separate Task Queues let you size each pool independently, more activity slots here, a bigger box there. Tie back to WorkerOptions on the previous slide.

The rule in one line: route by Task Queue, register the subset that queue needs. The failure mode is the day-one bug - an Activity routed to a queue no Worker serves just sits there retrying. Homogeneous within a queue, heterogeneous across.

Open in VSCode: examples/01-foundations/java/activity_task_routing.java · Run: make run-routing

Demo: make run-routing (one Worker process, 3 pools) + make run-routing-starter. The two pools log independently - each Activity lands on the queue its stub named, and no single Worker registered the full set. Runnable end-to-end in examples/runnable/15-task-queue-routing (Java/Python/Go).

For Airflow rooms, this slide is the moment of recognition. XCom-becomes-a-return-value gets the biggest reaction.

The scaling-limit row is the honest one: Temporal isn't free of limits, it just moves them. History size is the constraint you design around (continue-as-new on Day 5). Pair this with the migration framework on Day 4 - "migrate where Temporal earns its keep."

The cluster is language-agnostic; the SDK is how YOUR language speaks to it. Every primitive from the last section (Workflow, Activity, Worker, Task Queue) is a type in this library. Java is our working language; Python and Go appear at the end so the room knows the same model ships everywhere. Reference throughout: javadoc.io/doc/io.temporal/temporal-sdk/latest

The headline: you don't call a REST API to "do durable execution." You link a library, and the library both reaches the cluster AND hosts your code under the replay contract. The four bullets map 1:1 to the packages on the next slide.

Don't read every cell - point at the split: client+serviceclient are the OUTSIDE (your HTTP handler / starter), worker is the HOST, workflow+activity are the CODE you write, common is the shared knobs. This is the whole API surface in one frame; the Javadoc index has this exact package list.

This is the single most-used class in the SDK and the bridge back to the non-determinism slides coming next. The rule: if the JDK version would give a different answer on replay, there's a Workflow.* that records it instead.

This is the starter side from the Hello lab. Three steps: connect, make a stub, call it. A direct method call blocks for the result; WorkflowClient.start(wf::greet, "Ada") returns immediately with a WorkflowExecution handle - the async path.

One artifact gets you everything on the package slide. temporal-testing (the TestWorkflowEnvironment + replay harness) lands on Day 4 - flag it now so the dependency is already familiar.

The bullet from "What the SDK actually does" (payload (de)serialization) cashed out. The mental model: nothing custom crosses the wire - it's all Payloads. DefaultDataConverter is a chain of PayloadConverters; JSON is the catch-all that handles records/POJOs, which is why "make it JSON-serializable" is the rule. Override the converter at WorkflowClientOptions (Day 6 codec slide stacks a PayloadCodec on top to encrypt). Limits are the next slide - the "so what".

This is the slide they asked "limits?" about. Four kinds of limit, not just size: serializability, size, replay cost, and schema evolution - the last is the sneaky one. Tie size back to the 2 MB / 256 KB figures and the 50 MB / 51,200 event history cap from the event-sourcing section. The fix for big data (S3 reference payload) and for sensitive data (PayloadCodec encryption) both land on Day 6 - this slide plants the rule, Day 6 shows the pattern. Jackson default: unknown properties are ignored, so additive changes are safe; renaming a field is a breaking change for any open Workflow whose history holds the old name.

This is the reference slide people screenshot. Walk it outside-in: stubs are the socket, client is the namespace-scoped entry point, factory owns the JVM-wide cache + threads, worker is per-Task-Queue, impl options are per-Workflow-type.

Contrast with the previous slide: those configure the Worker once at boot; these are per-execution and can change call to call. RetryOptions is the common nested piece, point back to the "Setting them deliberately" slide.

Optional / awareness only - the room is Java-first. The point of these three slides: the mental model is the product, not the Java API. A polyglot shop runs Workflows in one language and Workers in another against the same cluster.

Same three moves - connect, start, run a worker - in async Python. The Workflow.* toolkit becomes the workflow module (workflow.sleep, workflow.now, workflow.uuid4).

No annotations - Go uses function signatures and the workflow.Context. Same shape: Dial, ExecuteWorkflow, Get. worker.New(c, "queue", opts).Run() hosts it.

The takeaway slide for the optional block: the columns differ, the rows don't. This is why a team can adopt Temporal without a language rewrite.

Open in VSCode: examples/01-foundations/java/deterministic_replay_bad.java vs deterministic_replay_good.java - diff them side by side.

Whiteboard moment. Walk through with arrows. "Replay" doesn't re-execute side effects - Activity results are READ from history.

Reference card. The throughline: anything whose value the Worker can't reproduce on replay must be sourced from history, not recomputed. Walk each family: 1. TIME - System.currentTimeMillis() returns a new value every replay. The first run records 10:00:00; a replay tomorrow recomputes 10:00:01 and the code branches differently. Workflow.currentTimeMillis() returns the value recorded in history, so every replay sees the same instant. 2. RANDOM - same trap. new Random() reseeds from the system clock; replay gets a different number. Workflow.newRandom() seeds deterministically from the run and records the seed, so the sequence is reproducible. (Use this for jitter, IDs, A/B bucketing - not java.util.Random.) 3. I/O - reading a file, calling an HTTP endpoint, or hitting a DB gives a different answer each replay AND fires the side effect twice. There is no Workflow.* substitute - the fix is to MOVE it into an Activity. Activities run once and their result is recorded; replay reads the result from history. 4. CONCURRENCY - the biggest aha. Thread.sleep blocks a Worker thread for the full duration; Workflow.sleep records a timer and the Worker FORGETS the Workflow entirely (lead-in to the next slide). Same rule for threads/locks: use Workflow.newThread / Async / Workflow primitives, never raw java.lang.Thread, so the SDK controls scheduling deterministically. 5. ITERATION ORDER - HashMap/HashSet have no guaranteed order, and it can differ across JVM versions or runs. If you iterate one to make a decision (pick first, sum in order, branch on order) replay can diverge. Fix: use a TreeMap / LinkedHashMap or sort the keys before iterating. "risky," not "always wrong" - it only breaks if order affects a recorded decision. Tie it back to the replay rule slide: every one of these makes the re-run reach a DIFFERENT decision than history = non-determinism error, Workflow stuck/failed.

Ask: "how would you wait 30 days for an email opt-in today?" Compare to one line.

This is the artifact event sourcing produces. Don't dissect every event yet (that's Lab 1.3) - the goal is that when they open the UI in the next lab, the list isn't a wall of noise: they can spot the lifecycle bookends and the Activity trio. Each Workflow Task = one "the Worker woke up, decided, recorded."

`localhost:8233` opens here. The left rail (Workflows, Schedules, Workers, Batch...) is the whole product; Workflows is where you live on Day 1. The columns are named on the right, beside the screen.

Click any row on the previous screen to land here. Point at Input "Ada" and the Result up top, then the numbered event list beside it. The parts are named on the right.

The consolidated "limits?" reference, pairs with the retention/pruning slides above and the serialization-limits slide in the SDK section. Two kinds of limit: SIZE/COUNT (the table, hit the hard cap and the server terminates the run) and STRUCTURAL (one open run per ID; ~2,000 pending activities/children before the Workflow Task fails). All numbers are dynamic-config defaults: historyCount warn/error 10,240/51,200, historySize 10/50 MB, blobSize ~256 KB/2 MB, NumPendingActivities/ChildExecutions 2,000. Escape hatches: Continue-As-New (Day 5) for history growth, S3 reference payloads (Day 6) for big blobs, bounded fan-out for pending-work caps. Say out loud: you never tune these up, you design under them.

This is the real production topology, not a toy wiring: the Worker is a long-lived deployment; the starter is whatever fires work - an HTTP handler, a cron, a CLI. Both only ever talk to the server.

Have one person KILL the Worker mid-run on purpose. The Workflow completes when the Worker restarts. This is the most important moment of Day 1.

This is the #1 "huh?" when people first read a history. They set the queue to hello-temporal but see a hostname:uuid on later Workflow Tasks. The next slide explains why. JSON is from the Event History "JSON" toggle / `workflow show -o json`.

This is the question students ask: "what if a disconnected Worker comes back?" The answer is the CAS on history version - not locking, not leader election at the Worker level. Workers are interchangeable; the DB is the arbiter. Tie the activity-idempotency point back to the retries lab.

The synthesis slide. Students meet sticky cache, replay, and determinism as three separate topics; this is where they click into one. Cache = derived view; history = source of truth; determinism = why the view is reproducible elsewhere.

The classic Day-1 confusion. Workflow ID is yours and reusable; Run ID is one physical attempt. continue-as-new keeps the ID, mints a new Run - the Day-5 lab.

On the Workflows list: Type column = GreetingWorkflow, Workflow ID column = hello-temporal-demo. People assume the Type is the ID, or that the Task Queue must match one of them. It doesn't - they're orthogonal.

Run: make run-hello, then read the Web UI event history. Dump it from the CLI with examples/01-foundations/history_cli.sh.

Simplified mental model first - the next slide shows the real topology. Trace one Workflow start: SDK → Frontend → History (write WorkflowExecutionStarted) → Matching → Worker polls.

Frontend is a gateway in front of three peer services; History and Matching both own persistence. Your Workers live OUTSIDE this box and connect outbound to Frontend on :7233. Keep the source credit on the slide.

The naming trap: "Worker Service" inside the cluster is internal background work. The Worker YOU write and deploy is a separate process polling Matching via Frontend.

Walk this slowly on the whiteboard. Two services the Worker never talks to directly: it polls through Frontend, Matching dispatches, History owns the record. Matching → History RecordWorkflowTaskStarted is the easily-missed hop: the Worker pulling a task is itself an event (WorkflowTaskStarted) before code runs. The key insight: nothing the Worker does is trusted until History has written the resulting event. Crash anywhere and replay rebuilds from the persisted history. Next slide turns this trace sideways into the ledger it produces.

This is the "not just an interaction diagram" payoff: same run, turned 90° into the durable record. Eleven events, eleven state transitions. Point out the rhythm: every Workflow Task is a Scheduled→Started→Completed triple, and a Command (ScheduleActivityTask, CompleteWorkflowExecution) only ever lands as an Event. The Worker proposes; History decides and records. Tie forward to determinism: on replay the SDK re-runs the code and checks the Commands it regenerates against events 4 and 10. Reorder your Activities and event 4 won't match, that's the non-determinism error they'll meet on Day 3.

Same seven steps as the trace, turned into lanes so the asymmetry is visible: all the persistence and decisioning happens in the middle (History), the Worker only ever talks to the edge (Frontend). The two left-pointing arrows into History, RecordWorkflowTaskStarted and RespondWFTCompleted, are the moments a poll/response turns into a persisted event.

The single rule behind every lifecycle diagram: a Command is intent; an Event is fact. The names even rhyme, Schedule→Scheduled, Start→Started/Initiated. This is why "do I/O in Activities, not Workflow code": only Commands round-trip through History, so only Command-shaped effects are durable and replayable.

The mechanism under the trace. Step ② is the one that surprises people, the Worker doesn't resume a paused thread, it re-runs the code from the top against the recorded history every single Workflow Task. The Worker is stateless between tasks; the history is the state. Sticky cache (mention WorkerOptions) is just an optimization that skips ② when the same Worker holds the run in memory.

Zoom all the way out. The previous slides were one trip through Running; this is the shape of the whole execution. Worth naming the distinction now: Canceled is cooperative (the code gets a chance to clean up), Terminated is forceful (the server kills it, no cleanup). Continue-As-New seeds Day 2's long-running patterns, same Workflow ID, brand-new Run ID and empty history.

The most dangerous menu for newcomers. Terminate forfeits compensation - prefer Cancel. Reset recovers from a bad code deploy: pick an event, reset, the Worker replays forward with current code. All three are in the per-Workflow More Actions.

Connections.fromEnv() is the shared base; Cloud (next) feeds it credentials and takes the TLS branch. Worker and starter are separate processes, both reading the same env. Mirror of the Cloud slide and built on the SAME worker - here the plaintext branch, Cloud the TLS branch. Stop 'make temporal' first; the stack binds :7233. Good moment to restart the temporal container and show the Workflow survived.

Punchline to say out loud: laptop -> Docker -> Cloud is all env, not a rewrite. Optional - demo-only if attendees have no Cloud creds. Same shared module as the Docker slide (examples/runnable/01b-hello-temporal-anywhere); with no creds it falls back to plaintext, so it still compiles and runs against make temporal.

This grep-able view is the production debugging starting point. Show it now; it'll come back on Day 4 for replay tests.

The first slogan to repeat. If only one thing sticks for Day 1, it's the re-execution-vs-recorded-results distinction.

4 hours: morning is reliability mechanics; afternoon is signals/queries/ updates/schedules/children. Lots of code.

Open in VSCode: examples/02-reliability/java/async_activity.java, parallel_fanout_allof.java Run: make run-async

Start from what they know. Everyone has written blocking code; name it so the contrast on the next slides has something to push against. No Temporal yet - this is pure "how code waits". For the non-async crowd, this slide is the floor.

The claim-ticket analogy is the load-bearing metaphor for the entire section. A Promise is a receipt for a result that isn't ready yet. Async hands it back immediately; .get() is the only thing that waits. Land this hard before any code.

The punchline that makes "parallel" cost nothing. Same orders, same counter - the only variable is whether you wait between orders or after all of them. No threads, no executor pools. Hold here until heads nod.

Answer: place all three orders first (2, 4, 5 in any order), THEN collect all three (1, 3, 6). Placing = Async.function; collecting = .get(). The trap answer interleaves place/collect - that's the sequential 12-minute version. 2-minute solo, then reveal. Tie each step back to the API name out loud.

The lead-in before any Async code. The whole section is one idea: a Promise lets the Workflow wait without occupying a thread, so "parallel" costs nothing. Get this and the fan-out code is obvious.

Sequential: 2+2+1+1 = 6s. This version: the two extracts overlap (2s), then the transforms run sequentially (1+1) = 4s total. Lesson: only the work you START before waiting overlaps; anything you call sequentially after a .get() is still sequential. Follow-up: "how would you parallelize the transforms too?" - start both, then get both.

Name the pattern with a physical picture before any stream()/Promise code. Many in the room haven't met "fan-out/fan-in" as vocabulary - it's just split-work- then-combine. The stream() gloss matters: half the room may not read Java streams fluently, and the next slide leans on .stream().map(...).toList().

This is the lead-in before the stream().map(Async.function).toList() one-liner. If they get "collect all Promises, THEN join," the code reads itself. The classic bug is calling .get() inside the map - that serializes it.

One JVM hosts tens of thousands of suspended Workflows. Each one is just heap state, not a parked thread.

The bug: .get() is INSIDE the loop, so each pass waits for its own Activity before the next one starts - fully sequential despite Async.function. Fix: collect every Promise first (stream().map(Async.function).toList()), THEN allOf().get() and sum. This is THE classic mistake; seeing it once inoculates them. Connect back to the coffee run - this is order-wait, order-wait.

Lead-in before the procedure/anyOf code. Same idea as fan-out, two more tools: void Activities, and racing N calls when you only need the first answer.

Example: examples/02-reliability/java/async_procedure_and_race.java

Lead-in before the try/catch-per-branch code. The question to pose: "3 of 4 priced fine, 1 failed - do you fail the order or price 3?" That's a design call.

Example: examples/02-reliability/java/partial_failure.java

Lead-in before the bounded-fanout code. The naive fan-out is "all at once"; the real-world constraint is a downstream QPS/connection cap. The counter + await is the replay-safe way to throttle inside Workflow code - never a JDK Semaphore.

Open in VSCode: examples/02-reliability/java/bounded_fanout.java

Have students sketch on paper before running. Then run and verify their prediction was right (or wrong - even better).

This is the proof for lab step 1. Read ascending so events 1-7 are on screen. The three ActivityTaskScheduled in a row, under ONE WorkflowTaskCompleted, is the whole point - image left, the parts named on the right.

Open in VSCode: examples/02-reliability/java/retry_and_timeouts.java, heartbeat_long_activity.java

The arithmetic is the lesson. Bring a calculator if you don't trust the audience to do it on paper.

This is the live view while an Activity is between attempts - the retry counter, the next-retry countdown, and the last error. Captured mid-backoff from the retries lab (ChargeCard fails twice, then succeeds). Fields named on the right.

The mix-up: people put MaximumAttempts on WorkflowOptions expecting their Activity to retry. It doesn't - Activity retries are configured on ActivityOptions and are ON by default (unlimited). Workflow retry is opt-in and restarts the whole run.

The lead-in before the loop. Without heartbeats a dead Worker is invisible until startToClose fires, and the retry redoes everything. With them: fast failure detection + resume-where-you-left-off.

Open in VSCode: examples/02-reliability/java/heartbeat_long_activity.java

Open in VSCode: examples/02-reliability/java/heartbeat_resume_from_checkpoint.java

The previous slide promised "resume from page N"; this is the call that delivers it. heartbeat(page) writes the checkpoint; getHeartbeatDetails reads it back on the next attempt. Without this read a retry silently restarts at page 0.

Lead-in before the CancellationScope code. Ties back to heartbeats: cancellation reaches a running Activity the same way liveness does - via the heartbeat.

Example: examples/02-reliability/java/cancellation_scope.java

Open in VSCode: examples/02-reliability/java/workflow_time.java - durable sleep records TimerStarted; no thread parks.

Reinforcement, not new content. The students saw the families yesterday; this is the "what bites in production" list.

Open in VSCode: examples/03-interactions/java/signals_queries.java Run: make run-approval

This is the lead-in BEFORE any annotation soup. Decide by intent first, then the @SignalMethod / @QueryMethod / @UpdateMethod code is obvious. Queries never touch history (read-only, served from the cached state); signals and updates do.

Async, recorded in history, wakes any await predicate.

Demo: pick currentState, Run Query, read the result. Note Event History is 0 here - a Query never appears in history. Empty tab = no Worker polling / run not cached.

The "before workflow starts" twist: signalWithStart later in the day will make this explicit.

Open in VSCode: examples/03-interactions/java/update_completed.java, update_with_start.java Run: make run-approval

Lead-in before the @UpdateMethod interface. The validator is the headline: reject bad input synchronously without polluting history.

Open in VSCode: examples/03-interactions/java/update_completed.java

Lead-in before the startUpdate code. Parallels startUpdate to Async.function: both hand back a handle so you can do other work before collecting the result.

Example: examples/03-interactions/java/update_completed.java

Lead-in before the signalWithStart code. THE foot-gun fix - the Day-3 Kafka bridge depends entirely on this. Bare start() crashes on event #2 for a key.

This is THE foot-gun. Every team copies bare WorkflowClient.start() from a tutorial and crashes on the second Kafka message for the same key.

Lead-in before the startUpdateWithStart code. Use when the very first interaction both creates the Workflow and needs an answer (e.g. submit-and-confirm).

Open in VSCode: examples/03-interactions/java/update_with_start.java

The blocking-call shape is what makes Updates the modern primitive. Signal+Query is older and works against older clusters; Update is the right tool when the caller wants the result.

Capstone for the section: the SAME run, after a Query (not shown - leaves no trace), an Update (changeNote), and a Signal (approve). Point at the Signaled event and the Update Accepted/Completed pair, named on the right.

Open in VSCode: examples/03-interactions/java/schedule_interval.java, schedule_cron_overlap.java Run: make run-schedules

Lead-in before the Schedule.newBuilder code. Three parts: action + spec + policy. Contrast with a cron line on a box that dies when the box dies.

Open in VSCode: examples/03-interactions/java/schedule_interval.java

Lead-in before the cron/overlap code + table. The overlap policy is the real lesson - "your hourly job takes 90 min, now what?" has five named answers.

Example: examples/03-interactions/java/schedule_cron_overlap.java

The Schedules tab is its own left-rail section, separate from Workflows. Created from examples/runnable/04-schedules. The parts are named on the right.

Compare to "your DAG runs hourly but the 3 AM run takes 90 minutes" - in Airflow you set max_active_runs. Here you set ScheduleOverlapPolicy.

Open in VSCode: examples/03-interactions/java/child_workflow.java, workflow_and_run_timeouts.java

The lead-in before the stub code. 90% of delegation is Activities; children are for when the sub-task is a real orchestration in its own right.

Open in VSCode: examples/03-interactions/java/child_workflow.java

Click into the parent → Relationships. The tree + table make "each child is its own Workflow" concrete. Click any child row to jump to its own page/history.

Lead-in before the tenant-fanout code. Two ideas: per-tenant child identity, and ParentClosePolicy.ABANDON so a finished (or continued-as-new) parent doesn't kill in-flight children. Contrast the default: children terminate with the parent.

Open in VSCode: examples/03-interactions/java/tenant_fanout.java

Workflow timeouts ≠ Activity timeouts. These are top-level execution caps, not per-attempt budgets.

Three slogans for Day 2. Each one is a foot-gun saved.

Day 3 is half conceptual (where does Kafka end and Temporal start?) and half hands-on (full Kafka → Temporal → Kafka loop).

Open in VSCode: examples/04-kafka/java/kafka_consumer_activity.java, producer_activity_idempotent.java, outbox_activity.java

Disable auto-commit. Always. Commit after the unit of work succeeds. Heartbeat the topic:partition:offset so retries can resume.

Lead-in before the producer config. The point: publishing is a side effect (Activity), and the retry story forces idempotence + a stable key.

Open in VSCode: examples/04-kafka/java/producer_activity_idempotent.java

Lead-in before the outbox transaction code. The problem statement is the lesson: DB-write + Kafka-publish can't be atomic, so make the publish derive from a row.

Open in VSCode: examples/04-kafka/java/outbox_activity.java

Open in VSCode: examples/04-kafka/java/signal_bridge.java - signalWithStart, not bare start. Run: make run-kafka

Open in VSCode: examples/04-kafka/java/signal_bridge.java

Run: make run-kafka (Worker + bridge). Produce with make kafka-produce TOPIC=orders, tail with make kafka-consume TOPIC=order-outcomes.

Have students fire two events for one key. The second event should NOT start a new workflow. If it does, they're using bare start - debug it.

Captured live: kcat produced 3 events (created/paid/shipped) for key 100 to the 'orders' topic; the bridge did SignalWithStartWorkflow each time. One Started, the rest Signaled. The activity (PublishOutcome → order-outcomes topic) is the producer half. Docs: https://docs.temporal.io/develop/java

Open in VSCode: examples/04-kafka/java/partition_fanout.java

Open in VSCode: examples/04-kafka/java/dlq_after_retry_exhaustion.java

Heaviest day on production rigour. Lots of ops content. Two big labs: metrics dashboard and replay tests.

Open in VSCode: examples/05-production/java/get_version_patch.java, versioning_behavior.java

Open in VSCode: examples/05-production/java/get_version_patch.java

Lead-in before the @WorkflowVersioningBehavior code. The decision is run lifetime: you can drain a 5-minute checkout; you can't drain a 6-month subscription.

Open in VSCode: examples/05-production/java/versioning_behavior.java

Open in VSCode: examples/05-production/java/worker_options_manual.java, worker_tuner.java, composite_tuner.java, virtual_threads.java

Corrected shorthand of the levers table: one Worker runs n Workflows + m Activities off one queue. a/b are integer slot counts (both default 200); c/d are JDK-21 virtual-thread booleans (both default false). The trap the original snippet hid: c is set on the Factory, not the Worker, and c vs d is Workflow- vs Activity-thread scope, not "threads vs virtual threads".

Same a/b/c/d shorthand extended to the rest of the table, with defaults. e is the third slot count. f/g are the poller pairs (5 + 5). h/i are the two rate caps (per-Worker vs queue-wide, server-enforced). j replaces the fixed slot counts with a tuner. k is the sticky cache. l is the topology lever. Lettering continues e–l so it reads as one continuous list with the previous slide.

The diagnostic view. "My Workflow is stuck" → open Workers/Pollers; if it's empty, no Worker is polling that Task Queue. Capacity lives here too: too few pollers for the backlog shows up as schedule-to-start latency - the Observability section next.

This is the missing bridge between the Pollers tab and the tuning knobs. Kubernetes replicas, VM count, and multiple JVMs all just add pollers to the same queue. Temporal does not shard a Workflow across Workers; each Workflow Task or Activity Task is leased to one Worker at a time.

Important framing: virtual threads are a Java runtime implementation detail, not a Temporal distribution feature. They reduce per-blocking-call thread cost inside a Worker. Task Queues decide which machine gets the task; WorkerOptions decide how many tasks this process runs at once.

Open in VSCode: examples/05-production/java/worker_options_manual.java

Lead-in before the virtual-threads code. Slots map to threads; virtual threads lift the ceiling for blocking I/O Activities without a thread-per-slot cost.

Open in VSCode: examples/05-production/java/virtual_threads.java

Lead-in before the ResourceBasedTuner code. Contrast with the previous "Manual sizing" slide: same goal (right concurrency), but driven by live resource use.

Open in VSCode: examples/05-production/java/worker_tuner.java

Lead-in before the CompositeTuner code. The realistic answer is "both": pin the cheap deterministic workflow slots with a FixedSizeSlotSupplier, auto-size the expensive activity slots with a ResourceBasedSlotSupplier. CompositeTuner doesn't size anything itself, it just wires one supplier per slot type.

Example: examples/05-production/java/composite_tuner.java

Lead-in before the rate-limit code. Distinguish the two knobs: per-Worker (local, multiplies with replicas) vs task-queue-wide (global, server-enforced). The second is the one that actually protects a shared dependency under horizontal scaling.

Open in VSCode: examples/05-production/java/rate_limited_activity_pool.java

Open in VSCode: examples/05-production/java/micrometer_metrics.java, custom_activity_metric.java, otel_tracing.java Stack: make stack-obs, then make grafana

Open in VSCode: examples/05-production/java/micrometer_metrics.java

Lead-in before the custom-metric code. Built-ins tell you the system is healthy; custom metrics tell you the business is. Same export path, so it's cheap to add.

Example: examples/05-production/java/custom_activity_metric.java

Lead-in before the OTel interceptor code. The win is correlation: without it, the Activity spans are orphans; with it, you see the whole request as one tree.

Runnable lab: examples/runnable/19-distributed-tracing (Java/Go/Python). Snippet: examples/05-production/java/otel_tracing.java. Java reaches OTel via the OpenTracing shim; Go and Python have native OTel interceptors. The propagator gotcha is real - without W3C TraceContext every span became its own root.

This is the payoff: 8 spans, one trace, across two services. Temporal uses FOLLOWS_FROM for the worker-side continuation (RunWorkflow follows StartWorkflow) and CHILD_OF for scheduling (StartActivity under RunWorkflow). Verified live.

Why this matters in three SDKs: Java is the interesting one - no native OTel module, so you keep the OpenTracing interceptors and bridge with the shim. The migration story is "swap the tracer, keep the wiring."

Captured live: a Worker exporting tally→Prometheus metrics on :9464, Prometheus scraping it, Grafana rendering the provisioned overview. Read beside the image.

Lead-in before the Search Attributes code. Contrast with metrics (aggregate) and memo (attached but NOT indexed). Keys are registered per namespace first, then upserted from Workflow code. This is how the "tenant ID in Search Attributes" from the namespace slide actually becomes filterable.

Open in VSCode: examples/05-production/java/search_attributes_ops.java

Open in VSCode: examples/05-production/namespace_strategy.md

Maps to instructor Demo 3 (custom-authorizer harness): a working Authorizer that pins each caller to a Role AND a Task Queue. The teaching point: the namespace is the boundary the platform enforces; everything finer is code you own.

Open in VSCode: examples/05-production/java/junit5_extension_mockito_test.java; runnable test in examples/runnable/06-testing/ReminderWorkflowTest.java Run: make run-testing (no server needed)

Lead-in before the TestWorkflowEnvironment code. Time-skipping is the "wow": durable timers normally make long Workflows untestable; here they run instantly.

Open in VSCode: examples/runnable/06-testing/src/test/java/training/temporal/testing/ReminderWorkflowTest.java · Run: make run-testing

Lead-in before the JUnit5 + Mockito code. The pattern: real Workflow, fake Activities. You're testing the decisions, not the side effects.

Example: examples/05-production/java/junit5_extension_mockito_test.java

Open in VSCode: examples/05-production/java/replay_test.java

Open in VSCode: examples/05-production/java/replay_test.java

Captured from examples/runnable/11-determinism-replay (go test -run TestReorderedCodeBreaksReplay -v). TMPRL1100 is the non-determinism error code - recorded history vs replay command diverge at event 5.

This is the safety net for the rest of the year. Encourage students to take this pattern back to their team and seed a corpus.

4 hours. Saga + Spring Boot: sync Updates, async Signals, continue-as-new. The capstone build (75 min build + 25 review + 20 Q&A) moved to the course close - it now caps all six days rather than just Day 5.

Open in VSCode: examples/06-saga-spring/java/saga_compensation.java (full project: examples/runnable/07-saga/) Run: make run-saga

Lead-in before the Saga code. The mental model is a stack: push a compensation after each success; on failure, pop them in reverse. Temporal runs your undo.

Open in VSCode: examples/06-saga-spring/java/saga_compensation.java (full project: examples/runnable/07-saga/)

War story: when team #3 silently drops an event in a choreographed flow, nobody notices for 36 hours. Temporal's log shows it immediately.

Open in VSCode: examples/06-saga-spring/java/choreography_bridge.java + python/choreography_bridge.py + go/choreography_bridge.go

This is the answer to "does Temporal support choreography?" Yes, but do not turn every service into one giant shared Workflow. Keep bounded contexts independent. Use events at team boundaries, then use Temporal inside a team boundary when the service has stateful, retrying, long-running logic.

The listener does not contain business process logic. It makes the event durable inside Temporal, then commits the Kafka offset after Temporal accepts it.

Avoid presenting this as religion. The useful rule is ownership. If one team owns the outcome, orchestrate. If no team should own all downstream behavior, choreograph between teams and use Temporal locally.

Captured from examples/runnable/07-saga with input fail-at-ship. The Result is "COMPENSATED" - a handled business outcome, not a crash. The arc is named on the right; the takeaways continue on the next slide.

The generic integration, before any saga specifics. Open in VSCode: examples/06-saga-spring/java/spring_temporal_config.java (manual wiring) and the runnable starter app examples/runnable/16-spring-boot. Saga-specific triggers (sync Update, Kafka Signal) come in the next section.

The lead-in before the @Configuration soup. Three beans + lifecycle is the whole trick; Activities being Spring beans is what makes DI/testing feel native.

This is the underlying wiring. In production, prefer the temporal-spring-boot-starter and let it do this.

The payoff after the manual @Configuration slide. Same three responsibilities - client, Worker registration, lifecycle - now declared, not coded. Activities stay Spring beans so DI/testing are unchanged. Runnable: examples/runnable/16-spring-boot (Java only), `make run-spring`, then POST /greetings. Note the auto-discovery log lines naming the task queue - that IS the Worker the starter stood up.

OPTIONAL hands-on (or run it live as a demo). One Spring process is both the client and the Worker. Show the startup log auto-discovering GreetingWorkflowImpl onto the 'greetings' queue, POST to start+block for the result, GET to Query, then open greeting-Ada in the Web UI. Skip for time, the saga-in-Spring lab is the required one. Lands "client + Worker you wire in" with zero Temporal config.

Now the saga-specific wiring on top of the Spring Boot + Temporal basics. Open in VSCode: examples/06-saga-spring/java/sync_saga_update.java, async_saga_signal.java, kafka_listener_trigger.java, continue_as_new.java

Lead-in before the sync HTTP code. This is the "two front doors" pair with the next slide: HTTP Update here, Kafka Signal next - same Workflow underneath.

Open in VSCode: examples/06-saga-spring/java/sync_saga_update.java

Lead-in before the KafkaListener code. Reinforces signalWithStart from Day 3: the consumer never checks "does this order's Workflow exist yet?"

Open in VSCode: examples/06-saga-spring/java/kafka_listener_trigger.java

The lead-in before the loop code. The trigger is history size, not elapsed time: if a Workflow keeps appending events forever, continue-as-new resets the slate.

Open in VSCode: examples/06-saga-spring/java/continue_as_new.java

Captured from examples/runnable/12-continue-as-new (processed 9 events across 3 Runs). The First/Previous Execution links are the chain - walk them backwards.

4 hours: morning is AWS migration; afternoon is containers + KEDA. Two big labs: containerized Worker on kind, and KEDA autoscale.

Open in VSCode: examples/07-aws-containers/aws_mapping.md, step_functions_before.json vs step_functions_after_temporal.java

Open in VSCode: examples/07-aws-containers/java/glue_activity.java, s3_reference_payload.java Run: make run-aws

The lead-in before the polling loop. This is THE pattern for any external async job (Glue, EMR, Batch, SageMaker): start → poll+heartbeat → settle.

Open in VSCode: examples/07-aws-containers/java/glue_activity.java · Run: make run-aws

The question students always ask: "can Temporal resume my Glue job from step 3?" The honest answer is a question back: what's a step? Temporal can't reach inside one Spark script, that's opaque. But if your pipeline is extract → transform → load as three jobs, model each as an Activity and Temporal resumes at the failed one for free. Finer than that (mid-Spark) is Glue Job Bookmarks' job, not Temporal's. The heartbeat row is the re-attach case from the previous slides.

Open in VSCode: examples/runnable/17-spring-glue-pipeline

The payoff slide. Three Glue jobs, three Activities, one Workflow. When `load` fails, you fix it and the retry doesn't re-pay for extract + transform, their results come straight out of event history. This is the "resume from the failed step" guarantee the previous slide promised, made concrete. Contrast with Step Functions, where resuming mid-state-machine is a console-diving runbook.

Lead-in before the record types. The rule: if a payload could be big, it goes to blob storage and the Workflow carries the pointer. Keeps history small + fast.

Lead-in before the PayloadCodec code. The threat model: history is durable storage; treat it like any DB column you'd encrypt. Codec server = controlled decryption for the UI.

Example: examples/07-aws-containers/java/codec_server.java

Lead-in before the before/after code. The pitch: you stop maintaining ASL and its limits; the orchestration is code your team already knows.

Open in VSCode: examples/07-aws-containers/step_functions_before.json vs step_functions_after_temporal.java

Open in VSCode: examples/07-aws-containers/{java,python,go}/sqs_signal_bridge.*, sns_publish_activity.*, ssm_parameter_config.* The morning's missing third: what *drives* a Workflow, how it talks back out, and where its config/secrets live. All three run on free LocalStack.

Source: https://docs.aws.amazon.com/AWSSimpleQueueService/latest/SQSDeveloperGuide/standard-queues.html The point: SQS gives you at-least-once. Don't fight it - make the consumer idempotent by keying the Workflow Id off the event, so a redelivery re-signals the same run instead of starting a duplicate.

Source: https://docs.temporal.io/sending-messages Deleting before the signal is durable = a lost event on crash. Order matters: signal first, delete second.

Open in VSCode: examples/07-aws-containers/java/sqs_signal_bridge.java

Source: https://docs.aws.amazon.com/sns/latest/dg/welcome.html The publisher moved into Temporal; the fan-out topology (SNS -> SQS/Lambda/HTTP) is unchanged. Only "who calls Publish" changed.

Source: https://docs.temporal.io/develop/python/best-practices/error-handling This slide is the thesis of the whole "edges" sub-section: at-least-once meets at-least-once; idempotency keys reconcile them.

The capstone of the AWS morning: nothing new, just composition. validate (S3 list) → runGlueJob (the supervise-compute pattern from earlier) → publishValidation (SNS). The starter from Day 5 is what hosts it. Runnable: examples/runnable/17.

Open in VSCode: examples/runnable/17-spring-glue-pipeline/java/.../GlueStitchWorkflowImpl.java

Open in VSCode: examples/runnable/17-spring-glue-pipeline/java/.../SqsTriggerBridge.java

Source: https://docs.aws.amazon.com/systems-manager/latest/userguide/systems-manager-parameter-store.html The determinism trap: SSM values can change between replays. Bootstrap config at startup; per-run secrets via an Activity. This is also the on-ramp to IRSA/task roles (next sub-section) - no static keys.

Open in VSCode: examples/07-aws-containers/java/ssm_parameter_config.java

The conceptual slide said "config in startup code, secrets via an Activity"; this is the code. getParametersByPath loads the tree at boot; setTarget/setNamespace build the non-local stubs from it. fetchApiKey keeps the secret read behind the Activity boundary.

Open in VSCode: examples/07-aws-containers/Dockerfile, worker_deployment.yaml, keda_scaledobject.yaml

Open in VSCode: examples/07-aws-containers/Dockerfile (runnable: examples/runnable/08-aws-containers/java/Dockerfile)

Lead-in before the Deployment YAML. The "no Service/ingress" point surprises people from request/response services - Workers are outbound-only.

Open in VSCode: examples/07-aws-containers/worker_deployment.yaml

Lead-in before the ScaledObject YAML. Ties back to worker sizing + the schedule-to-start metric: that latency IS the autoscaling trigger.

Open in VSCode: examples/07-aws-containers/keda_scaledobject.yaml

Captured live: kind cluster + KEDA, an in-cluster dev server, a 300-task backlog on 'transform'. The repo manifests assume an in-cluster temporal-frontend + production namespace; this used a streamlined equivalent.

These four are NOT on free LocalStack (paid-tier emulators), so the labs are conceptual + reference manifests under examples/07-aws-containers/aws/ - no make targets. Walk them as lecture; apply only with an account. Each costs real money - tear down after. Labs 9-12.

Source: https://docs.aws.amazon.com/AmazonECS/latest/developerguide/service-auto-scaling.html The headline: ECS has no native Temporal scaler the way EKS has KEDA. So you rebuild what KEDA bundles - publish backlog as a CloudWatch metric, target-track it. The wiring is on the next slide.

Contrast with lab 5: KEDA polls DescribeTaskQueue FOR you. On ECS you wire the poller -> metric -> scaler yourself. Same idea (scale on queue depth), more glue. Manifests: examples/07-aws-containers/aws/ecs_*.json + backlog_publisher.md

Source: https://docs.aws.amazon.com/eks/latest/userguide/iam-roles-for-service-accounts.html The portability story: kind -> EKS is a no-op for the Worker. IRSA is the production answer to the dummy creds used all morning. Requires the cluster's OIDC provider enabled, or IRSA silently fails. Manifests: examples/07-aws-containers/aws/eksctl-cluster.yaml, irsa-serviceaccount.yaml, eks-worker-deployment.yaml

Source: https://docs.aws.amazon.com/AmazonRDS/latest/AuroraUserGuide/CHAP_AuroraOverview.html This is the at-least-once thesis again, in SQL: a retried load Activity must not double-insert. The mechanics that make it safe are on the next slide.

The DynamoDB example (dynamodb_idempotency.*) is the NoSQL sibling. Aurora can also be Temporal's own persistence store when self-hosting - but that's an aside; the lab's focus is Aurora-as-application-sink. Files: examples/07-aws-containers/aws/aurora_schema.sql, aurora_load_activity.java, aurora_terraform.tf

Source: https://docs.aws.amazon.com/Route53/latest/DeveloperGuide/routing-policy-failover.html The big honesty point: students must not mistake DNS failover for DR. It's frontend HA only. Pair with Temporal multi-cluster replication for true cross-region. Files: examples/07-aws-containers/aws/route53_failover.tf, route53_records.md

Scaffold from examples/runnable/07-saga/ (Run: make run-saga). Challenge: day-05-saga-spring/lab-3-capstone.

Hold the line on time. At 50 minutes, stop everyone and check in. If most are stuck, slow down; if most are done, pull review forward.

Resist correcting code style. Focus on the four questions above. They are what the cohort will face on real systems.
